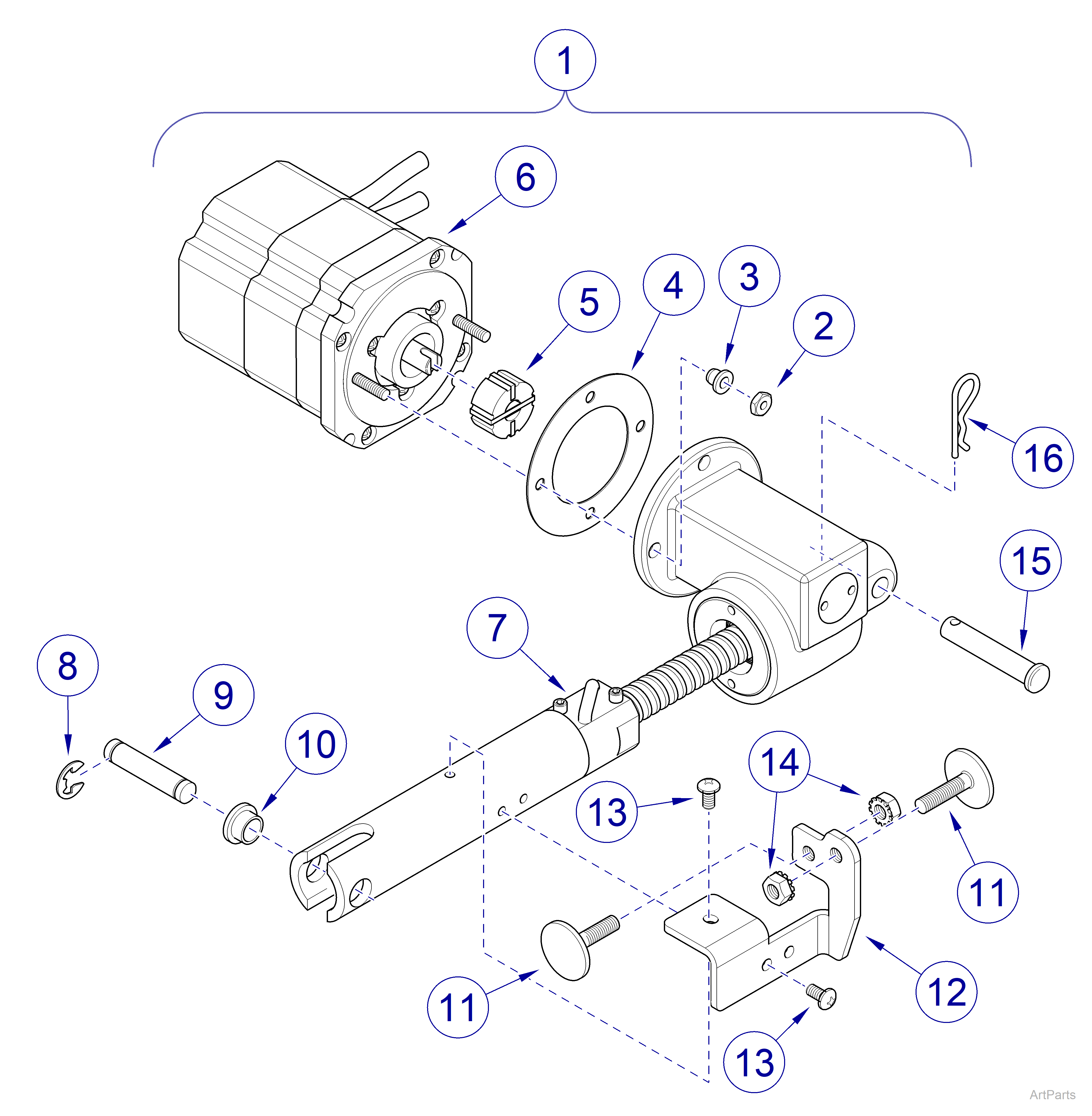

631 Chair Foot Actuator
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
| 631 ChairFoot Actuator | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1730-01 | Foot Actuator Kit w/ Motor - Includes items 2 thru 7 | 1 |
|
2 |
041-0010-10 | Lock Nut #10-32 | 2 |
|
3 |
053-0198-00 | Shoulder Washer | 2 |
|
4 |
053-1337-00 | Motor Isolator | 1 |
|
5 |
016-0662-00 | Motor Coupler | 1 |
|
6 |
015-3031-00 | Foot Brushless DC Motor | 1 |
|
7 |
002-1730-00 | Foot Actuator Kit w/o Motor | 1 |
|
8 |
042-0007-00 | E-Ring | 2 |
|
9 |
042-0639-00 | Clevis Pin | 1 |
|
10 |
016-0131-21 | Bearing | 2 |
|
11 |
016-1646-00 | Leveler 1/4”-20 x 1.15” | 2 |
|
12 |
050-13470-00 | Translating Tube Bracket | 1 |
|
13 |
040-0010-36 | Screw 10-32 x 5/16” | 3 |
|
14 |
77009187 | Lock Nut 1/4”-20 | 2 |
|
15 |
042-0005-04 | Clevis Pin | 1 |
|
16 |
042-0004-00 | Cotter Pin | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
