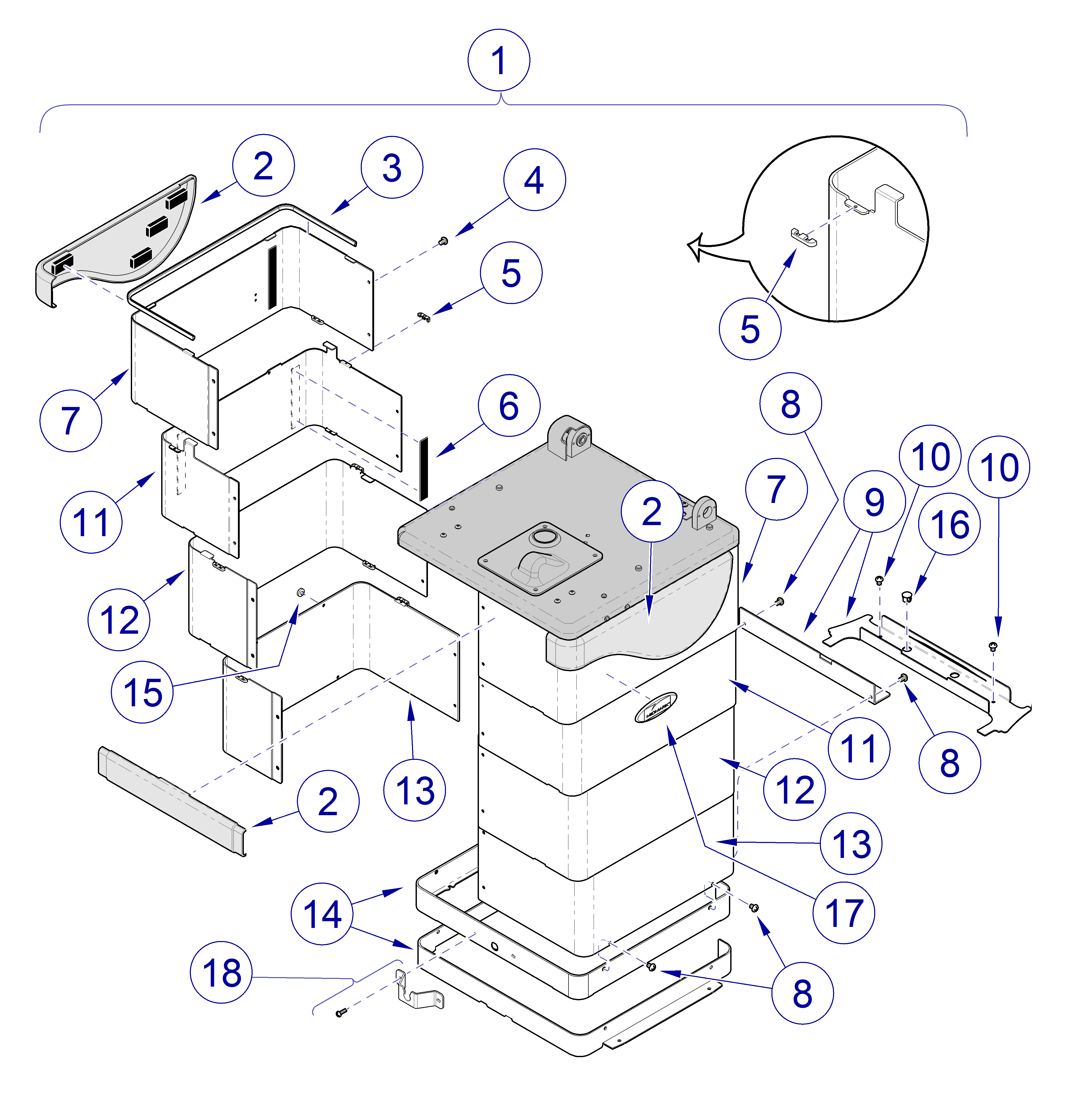

641 Chair Base Shrouds
Serial Number Range: V1000 thru V2785525
|
Model |
641 |
| Serial Number |
V1000 thru VV2785525 |
Shroud assemblies include all Snap-on-Guides (item 5) and nutserts
| 641 Chair Base Shrouds | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Shroud Set - include items 2 thru 17 |
||
| 002-0898-00 |
Standard base |
1 |
|
| 002-0898-01 |
Rotational base |
1 |
|
|
2 |
029-3178-00 |
Cladding Set includes RH, LH, and front pieces |
1 |
|
3 |
053-0717-00 |
Outer Shroud Seal |
2 |
|
4 |
040-0008-106 |
Screw #8-32 x 1/4" truss head |
10 |
|
5 |
053-0752-00 |
Snap-on-guide |
24 |
|
6 |
053-0105-40 |
Loop Fastener |
4 |
|
7 |
002-10346-00 |
Outer Shroud Assembly |
2 |
|
8 |
040-0008-78 |
Screw #8-32 x 1/4" Pan Head |
10 |
|
9 |
Wire Harness Cover Options |
||
| 050-5966-00 |
Standard base |
1 |
|
| 050-6442-00-312 |
Rotational base |
1 |
|
|
10 |
040-0010-109 |
Screw |
2 |
|
11 |
002-10345-00 |
Middle Outer Shroud Assembly |
2 |
|
12 |
002-10344-00 |
Middle Inner Shroud Assembly |
2 |
|
13 |
002-10340-00 |
Inner Shroud |
2 |
|
14 |
Shroud Spacer Options |
||
| 002-1569-00 |
Standard base - include two #8-32 x 3/8" screws |
1 |
|
| 029-3648-00 |
Rotational base |
1 |
|
|
15 |
053-2301-00 |
Bumper |
2 |
|
16 |
053-0050-12 |
Hole Plug |
2 |
|
17 |
061-0860-01 |
Midmark® Nameplate |
1 |
|
18 |
002-0962-02 |
Control Cord Bracket Kit - include bracket , two #8-32 x 3/8" screws, and two nuts |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2785526 thru Present
|
Model |
641 |
| Serial Number |
V2785526 thru Present |
Shroud assemblies include all Snap-on-Guides (item 5) and nutserts
| 641 Chair Base Shrouds | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Shroud Set - include items 2 thru 17 |
||
| 002-0898-00 |
Standard base |
1 |
|
| 002-0898-01 |
Rotational base |
1 |
|
|
2 |
029-3178-00 |
Cladding Set includes RH, LH, and front pieces |
1 |
|
3 |
053-0717-00 |
Outer Shroud Seal |
2 |
|
4 |
040-0008-106 |
Screw #8-32 x 1/4" truss head |
10 |
|
5 |
053-0752-00 |
Snap-on-guide |
24 |
|
6 |
053-0105-40 |
Loop Fastener |
4 |
|
7 |
002-10346-00 |
Outer Shroud Assembly |
2 |
|
8 |
040-0008-78 |
Screw #8-32 x 1/4" Pan Head |
10 |
|
9 |
Wire Harness Cover Options |
||
| 050-13243-00-312 |
Standard base |
1 |
|
| 050-6442-00-312 |
Rotational base |
1 |
|
|
10 |
040-0010-109 |
Screw |
2 |
|
11 |
002-10345-00 |
Middle Outer Shroud Assembly |
2 |
|
12 |
002-10344-00 |
Middle Inner Shroud Assembly |
2 |
|
13 |
002-10340-00 |
Inner Shroud |
2 |
|
14 |
Shroud Spacer Options |
||
| 002-1569-00 |
Standard base - include two #8-32 x 3/8" screws |
1 |
|
| 029-3648-00 |
Rotational base |
1 |
|
|
15 |
053-2301-00 |
Bumper |
2 |
|
16 |
053-0050-12 |
Hole Plug |
2 |
|
17 |
061-0860-01 |
Midmark® Nameplate |
1 |
|
18 |
002-0962-02 |
Control Cord Bracket Kit - include bracket , two #8-32 x 3/8" screws, and two nuts |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
