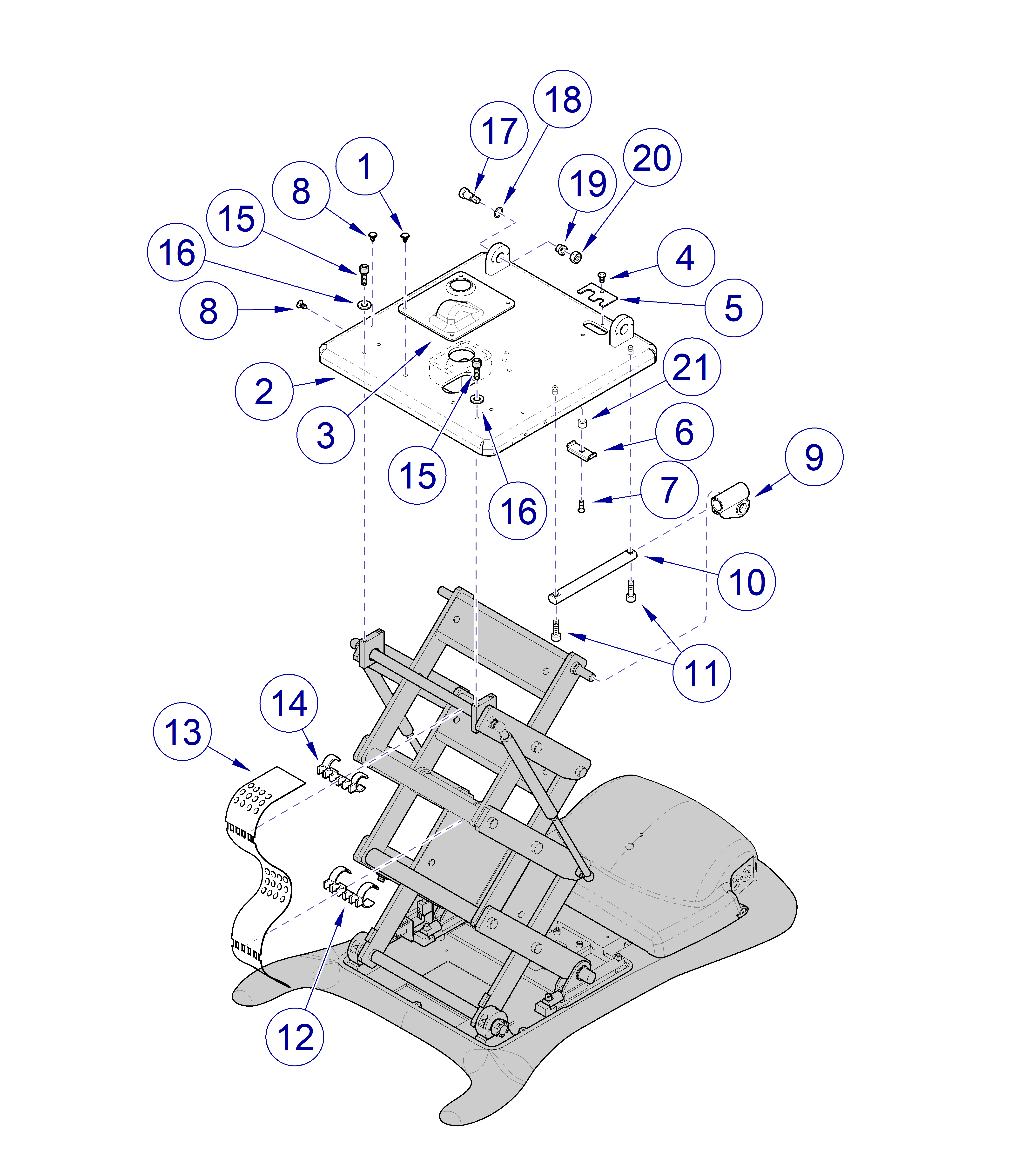

641 Chair Column Top Assembly
Serial Number Range: V2200 thru V2338480
|
Model |
641 |
| Serial Number | V2200 thru V2338480 |
| 641 Chair Column Top Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
042-0187-00 |
Barbed Push Fastener |
4 |
|
2 |
030-1440-00 |
Column Adapter Weldment |
1 |
|
3 |
053-1345-00 |
Screw Tip Cover |
1 |
|
4 |
040-0250-162 |
Screw 1/4-20 x 1/2" Phillips - Torque: 33 ft/lb |
1 |
|
5 |
050-6016-00 |
Corrugated Tubing Bracket |
1 |
|
6 |
053-2204-00 |
Cable Restraint Clamp |
1 |
|
7 |
040-0250-86 |
Screw 1/4-20 x 3/4" Phillips Head |
1 |
|
8 |
042-0153-00 |
Rivot Drive |
6 |
|
9 |
002-0864-00 |
Upper Glide Kit - include two glides |
1 |
|
10 |
057-0796-00 |
Guide Bar |
2 |
|
11 |
040-0312-41 |
Cap Screw 5/16-18 1" Socket Head |
4 |
|
12 |
053-1422-00 |
Lower Wire Clamp |
2 |
|
13 |
053-1433-00 |
Wire Ribbon Guide |
1 |
|
14 |
053-1452-00 |
Upper Wire Clamp |
2 |
|
15 |
040-0250-76 |
Cap Screw 1/4-20 x 3/4" Socket Head - apply permanent thread adhesive - Torque: 150 in/lb |
4 |
|
16 |
045-0001-127 |
Washer |
NLA |
|
17 |
042-0014-05 |
Shoulder Bolt 5/8" x 3/4" - Torque: 55 ft/lb |
2 |
|
18 |
053-0858-00 |
Washer, nylon |
1 |
|
19 |
016-0131-04 |
Flange Bearing |
2 |
|
20 |
041-0500-00 |
Jam Nut 1/2"-13 |
2 |
|
21 |
053-2204-00 |
Spacer |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

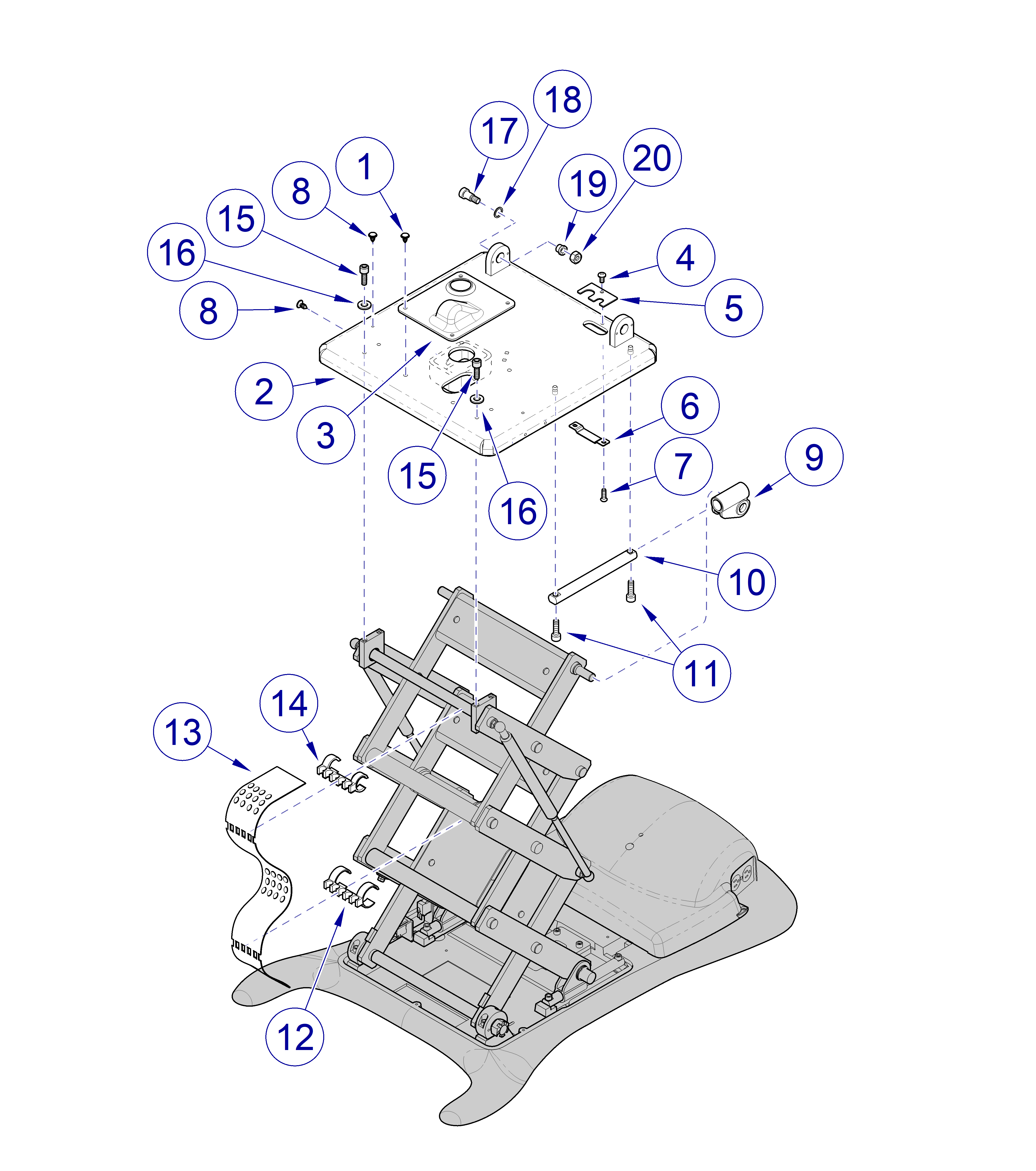

Serial Number Range: V2310432, V2310481, V2310861, V2310963, V2311286, V2311351, V2311815, V2311911, V2312760, V2312818 and V2338481 thru Present
|
Model |
641 |
| Serial Number | V2310432, V2310481, V2310861, V2310963, V2311286, V2311351, V2311815, V2311911, V2312760, V2312818 and V2338481 thru Present |
| 641 Chair Column Top Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
042-0187-00 |
Barbed Push Fastener |
4 |
|
2 |
030-1440-00 |
Column Adapter Weldment |
1 |
|
3 |
053-1345-00 |
Screw Tip Cover |
1 |
|
4 |
040-0250-08 |
Screw 1/4-20 x 3/8" Phillips - Torque: 33 ft/lb |
1 |
|
5 |
050-6016-00 |
Corrugated Tubing Bracket |
1 |
|
6 |
050-12086-00-813 |
Cable Restraint Clamp |
1 |
|
7 |
040-0250-08 |
Screw 1/4-20 x 3/8" Phillips Head |
2 |
|
8 |
042-0153-00 |
Rivot Drive |
6 |
|
9 |
002-0864-00 |
Upper Glide Kit - include two glides |
1 |
|
10 |
057-0796-00 |
Guide Bar |
2 |
|
11 |
040-0312-41 |
Cap Screw 5/16-18 1" Socket Head |
4 |
|
12 |
053-1422-00 |
Lower Wire Clamp |
2 |
|
13 |
053-1433-00 |
Wire Ribbon Guide |
1 |
|
14 |
053-1452-00 |
Upper Wire Clamp |
2 |
|
15 |
040-0250-76 |
Cap Screw 1/4-20 x 3/4" Socket Head - apply permanent thread adhesive - Torque: 150 in/lb |
4 |
|
16 |
045-0001-127 |
Washer |
NLA |
|
17 |
042-0014-05 |
Shoulder Bolt 5/8" x 3/4" - Torque: 55 ft/lb |
2 |
|
18 |
053-0858-00 |
Washer, nylon |
1 |
|
19 |
016-0131-04 |
Flange Bearing |
2 |
|
20 |
041-0500-00 |
Jam Nut 1/2"-13 |
2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
