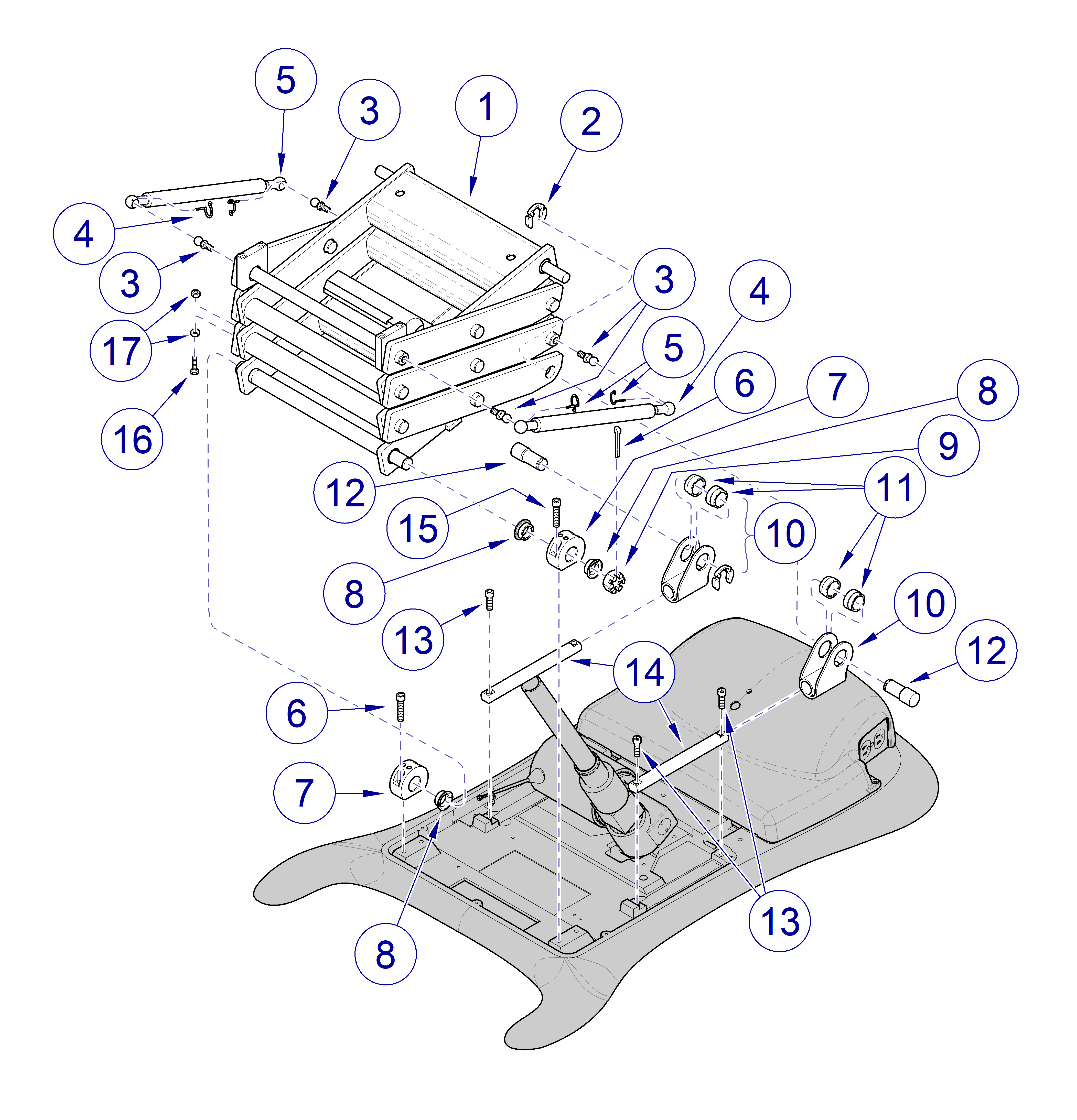

641 Chair Scissor Components
|
Model |
641 |
| Serial Number | All |
| 641 Chair Scissor Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
030-1562-00 |
Scissors Assembly |
1 |
|
2 |
042-0065-06 |
Clip Ring 3/4" |
2 |
|
3 |
016-0982-00 |
Gas Spring Ball Stud |
4 |
|
4 |
002-1065-00 |
Gas Spring Kit - includes two springs and four ball clips |
1 |
|
5 |
016-0983-00 |
Gas Spring Ball Clip |
4 |
|
6 |
042-0003-03 |
Cotter Pin |
1 |
|
7 |
057-0776-00 |
Main Bearing Housing |
2 |
|
8 |
016-0392-06 |
Flange Bearing |
3 |
|
9 |
042-0608-00 |
Slotted Nut |
1 |
|
10 |
029-3321-00 |
Slide Weldment - include item 11 |
2 |
|
11 |
053-1469-00 |
Bearing Insert |
2 |
|
12 |
057-0771-03 |
Guide Shaft |
2 |
|
13 |
040-0312-41 |
Bolt 5/16-18 x 1" socket head cap |
4 |
|
14 |
057-0796-00 |
Guide Bar |
2 |
|
15 |
040-0312-72 |
Bolt 5/16-18 x 1-1/2" socket head cap |
4 |
|
16 |
040-0250-24 |
Limit Switch Actuator Bolt 1/4-20 x 1" |
1 |
|
17 |
041-0250-13 |
Nut 1/4-20 |
2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
