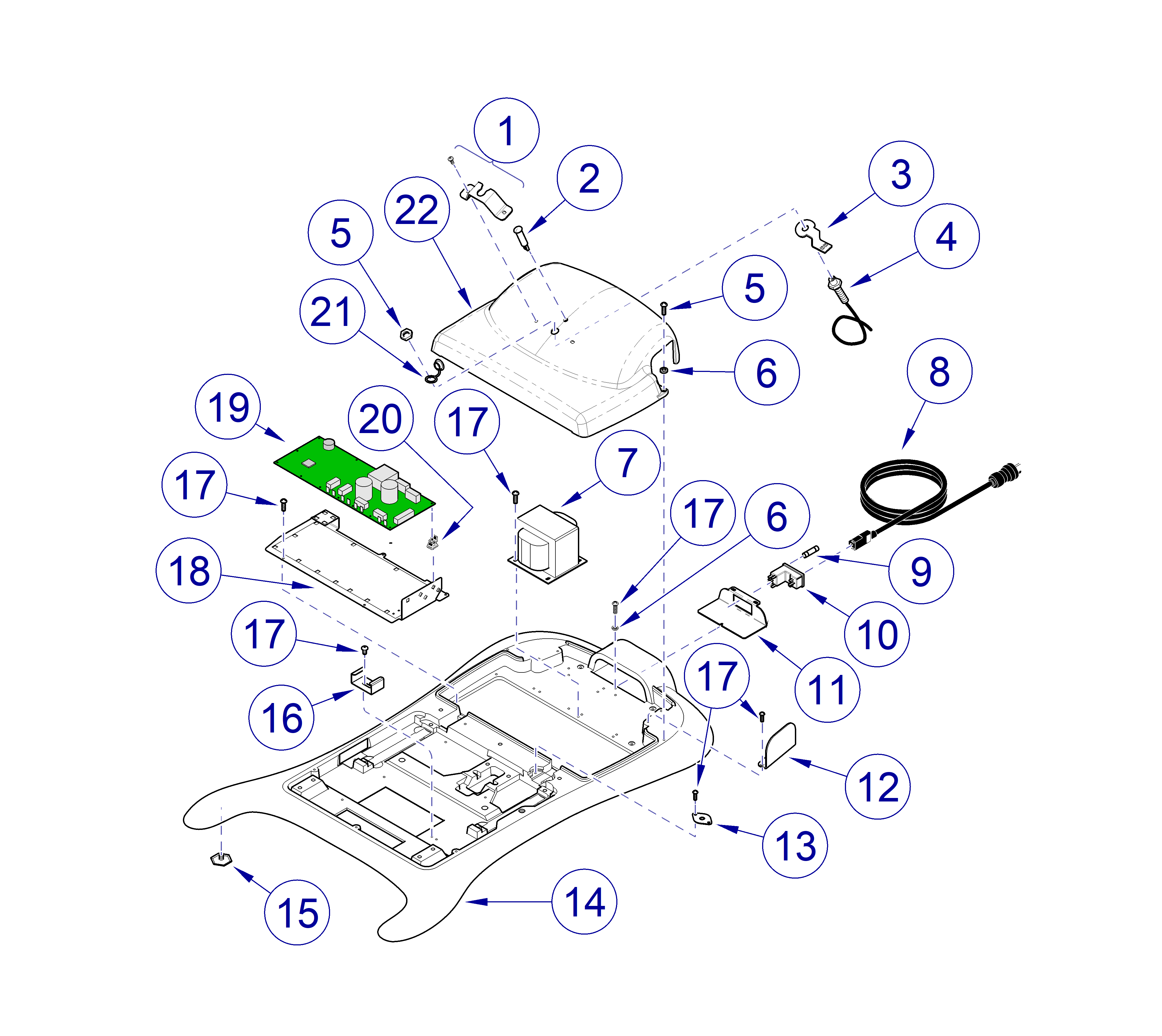

641 Chair Standard Base Components
Serial Number Range: V1000 thru V2785525
|
Model |
641 -002 and -003 |
| Serial Number | V1000 thru V2785525 |
| 641 Chair Standard Base Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-0962-00 |
Control Cord Bracket Kit -include bracket and #10-24 x 1/2" screws |
1 |
|
2 |
Refer to: |
- |
|
|
3 |
050-6036-00 |
Cable Holder |
1 |
|
4 |
Refer to: |
Connection Port - includes nut |
- |
|
5 |
040-0010-129 |
Screw 10-24 x 1/2" |
2 |
|
6 |
045-0001-35 |
Lockwasher |
3 |
|
7 |
015-1647-00 |
Main System Transformer |
1 |
|
8 |
015-1338-00 |
8 footCordset North American - Export units require 9A152 International Cordsets |
1 |
|
9 |
015-0346-40 |
Fuse 6.3A, 250V, Type "T", 5 x 20mm |
2 |
|
10 |
002-10454-00 |
Power Inlet |
1 |
|
11 |
050-5950-00 |
Inlet Plate |
1 |
|
12 |
050-5952-01 |
Cover Plate models w/o receptacles |
2 |
|
13 |
050-6006-00 |
Grounding Plate |
1 |
|
14 |
020-0246-00 |
Base Casting |
NSS |
|
15 |
016-0001-01 |
Leveling Feet |
4 |
|
16 |
050-5980-00 |
Harness Clip |
1 |
|
17 |
040-0010-47 |
Screw #10-24 x 3/8" |
16 |
|
18 |
050-5951-00 |
Base Plate |
1 |
|
19 |
Main PC Board Options |
||
| 002-1069-00 |
Non-Programmable |
1 |
|
|
002-1069-00R |
Non-Programmable Refurbished |
NLA |
|
| 002-1069-01 |
Programmable |
1 |
|
|
002-1069-01R |
Programmable Refurbished |
NLA |
|
|
20 |
053-1664-00-000 |
Standoff |
12 |
|
21 |
015-1694-00 |
Dust Cap |
1 |
|
22 |
020-0262-01-312 |
PC Board Cover |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

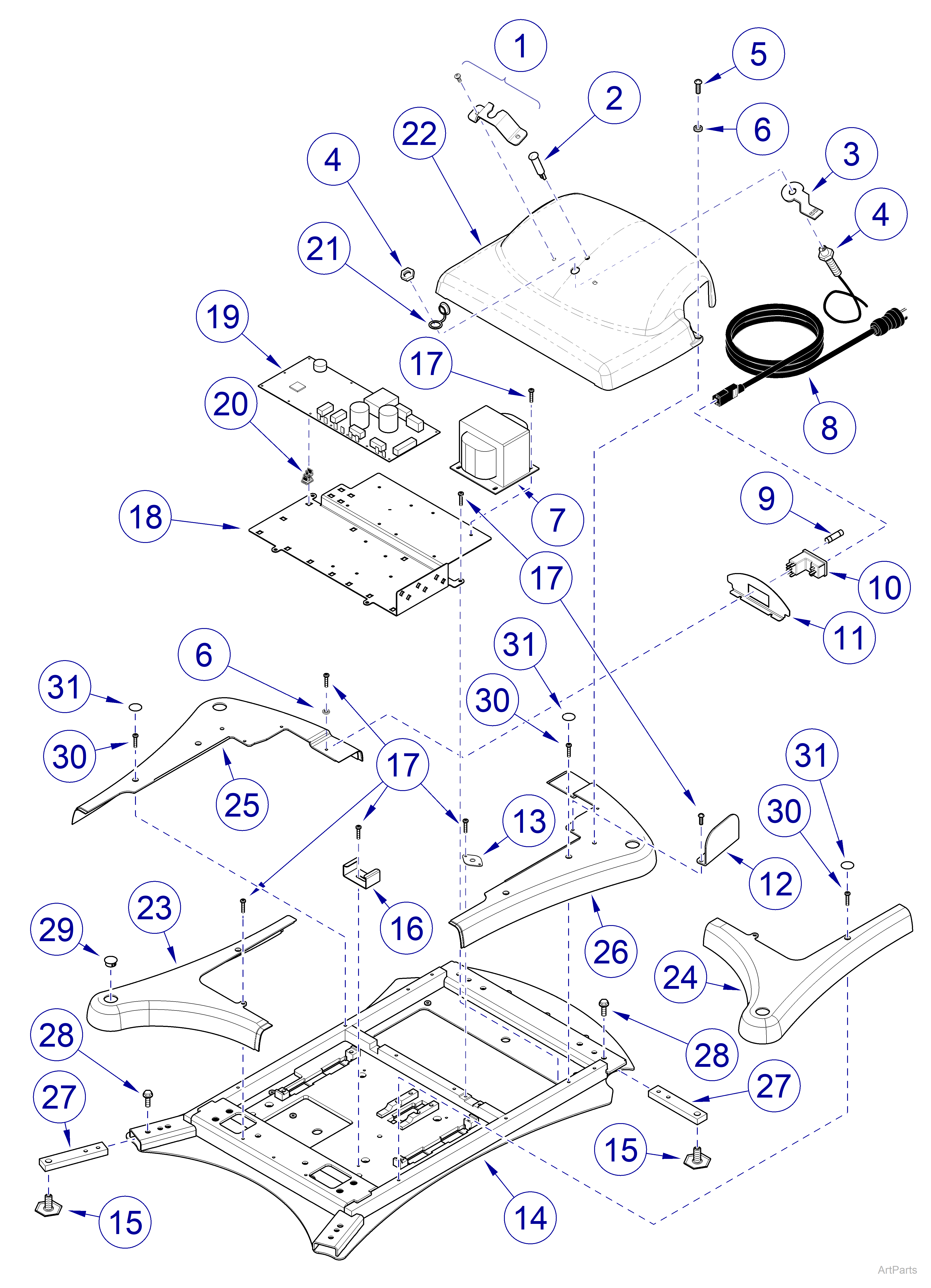

Serial Number Range: V2785526 thru Present
|
Model |
641 -002 and -003 |
| Serial Number | V2785526 thru Present |
| 641 Chair Standard Base Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-0962-00 |
Control Cord Bracket Kit -include bracket and #10-24 x 1/2" screws |
1 |
|
2 |
Refer to: |
- |
|
|
3 |
050-6036-00 |
Cable Holder |
1 |
|
4 |
Refer to: |
Connection Port - includes nut |
- |
|
5 |
040-0010-129 |
Screw 10-24 x 1/2" |
2 |
|
6 |
045-0001-35 |
Lockwasher |
4 |
|
7 |
015-1647-00 |
Main System Transformer |
1 |
|
8 |
015-1338-00 |
8 foot Cordset North American - Export units require 9A152 International Cordsets |
1 |
|
9 |
015-0346-40 |
Fuse 6.3A, 250V, Type "T", 5 x 20mm |
2 |
|
10 |
002-10454-00 |
Power Inlet |
1 |
|
11 |
050-13242-00-312 |
Inlet Plate |
1 |
|
12 |
050-5952-01 |
Cover Plate models w/o receptacles |
2 |
|
13 |
050-6006-00 |
Grounding Plate |
1 |
|
14 |
|
Base Weldment |
NSS |
|
15 |
016-1196-00 |
Leveling Foot |
4 |
|
16 |
050-5980-00 |
Harness Clip |
1 |
|
17 |
040-0010-47 |
Screw #10-24 x 3/8" |
19 |
|
18 |
050-13234-00-813 |
PCB Mount |
1 |
|
19 |
Main PC Board Options |
||
| 002-1069-00 |
Non-Programmable |
1 |
|
| 002-1069-01 |
Programmable |
1 |
|
|
20 |
053-1664-00-000 |
Standoff |
12 |
|
21 |
015-1694-00 |
Dust Cap |
1 |
|
22 |
020-0262-01-312 |
PC Board Cover |
1 |
|
23 |
020-10140-00-312 |
Patient Right Front Cover |
1 |
|
24 |
020-10139-00-312 |
Patient Left Front Cover |
1 |
|
25 |
020-10141-00-312 |
Patient Right Rear Cover |
1 |
|
26 |
020-10142-00-312 |
Patient Left Rear Cover |
1 |
|
27 |
051-1292-00-216 |
Leveling Foot Mount |
4 |
|
28 |
040-0312-21 |
Bolt 5/16-18 x 5/8" Socket Head |
8 |
|
29 |
Hole Plug |
4 |
|
|
30 |
040-0010-75 |
Screw 10-24 x 3/8" |
6 |
|
31 |
016-1760-01-312 |
Cap |
6 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
