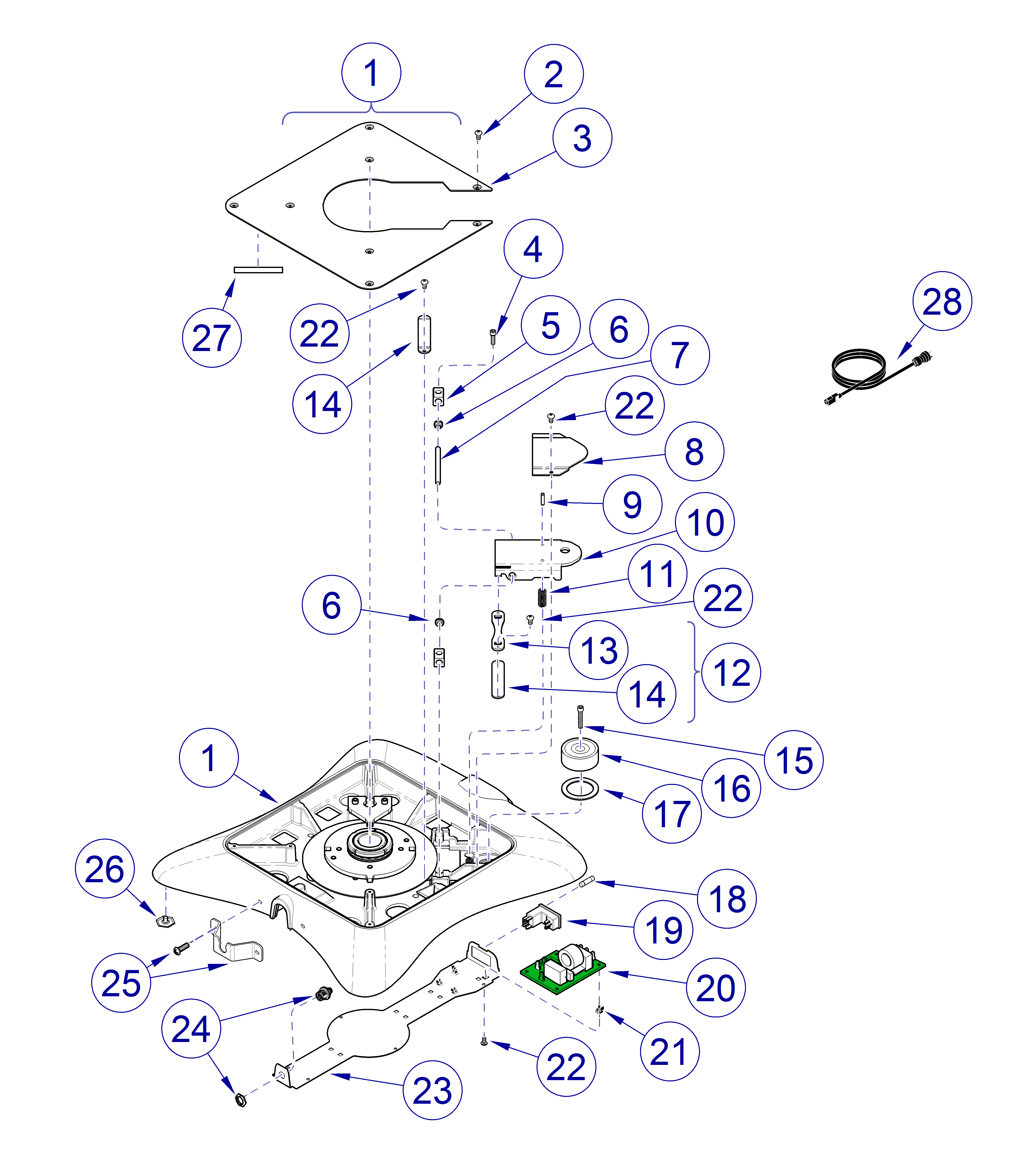

641 Chair Rotational Base Lower Section
|
Model |
641 -004 and -005 |
| Serial Number | All |
| 641 Chair Rotational Base Lower Section | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-0998-00 |
Rotational Base Repair Kit - include items 2 thru 27 |
1 |
|
2 |
040-0010-47 |
Screw #10-24 x 3/8" |
8 |
|
3 |
050-6438-00-312 |
Rotational Base Cover |
1 |
|
4 |
040-0312-41 |
Screw 5/16"-18 x 1" |
2 |
|
5 |
051-1094-00 |
Shaft Mount |
2 |
|
6 |
016-0392-13 |
DU Bearing |
2 |
|
7 |
057-0853-00 |
Bearing Shaft |
2 |
|
8 |
050-6439-00-312 |
Brake Lever Cover |
1 |
|
9 |
042-0001-00 |
Roll Pin |
2 |
|
10 |
050-6472-00 |
Brake Lever |
1 |
|
11 |
025-0084-00 |
Spring |
2 |
|
12 |
029-3647-00 |
Swivel Plate Assembly- include items 13 and 14 |
1 |
|
13 |
050-6473-00-000 |
Swivel Plate |
1 |
|
14 |
029-3646-00 |
Brake Pad Assembly |
2 |
|
15 |
040-0312-78 |
Cap Screw 5/16" x 18 x 1 3/4" |
1 |
|
16 |
015-1987-00 |
Electromagnet Assembly |
1 |
|
17 |
025-0082-00 |
Wave Spring |
1 |
|
18 |
015-0346-40 |
Fuse 250V, 6.3A, Type-T, Slo-Blo |
2 |
|
19 |
002-10454-00 |
Power Inlet |
1 |
|
20 |
015-2002-00 |
PC Board - inlet filter |
1 |
|
21 |
053-1664-00-000 |
PC Board Standoff |
4 |
|
22 |
040-0010-47 |
Screw #10-24 x 3/8" |
12 |
|
23 |
050-6461-00-312 |
Wire Trough Cover |
1 |
|
24 |
002-1110-03 |
I/O Harness Assembly |
1 |
|
25 |
002-0962-00 |
Control Cord Bracket Kit Options - include bracket and two #10-24 x 1/2" screws |
1 |
|
26 |
016-0001-01 |
Leveling Screw |
4 |
|
27 |
053-0717-00 |
Outer Seal |
3 |
|
28 |
015-1338-00 |
8 footCordset North American - Export units require 9A152 International Cordsets |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
