641 Chair Back Actuator / Limit Switches
|
Model |
641 |
| Serial Number | All |
*The foot limit switch adjustment is critical to ensure proper operation (tolerance: 0.030"). Do not attempt to adjust the individual switches.

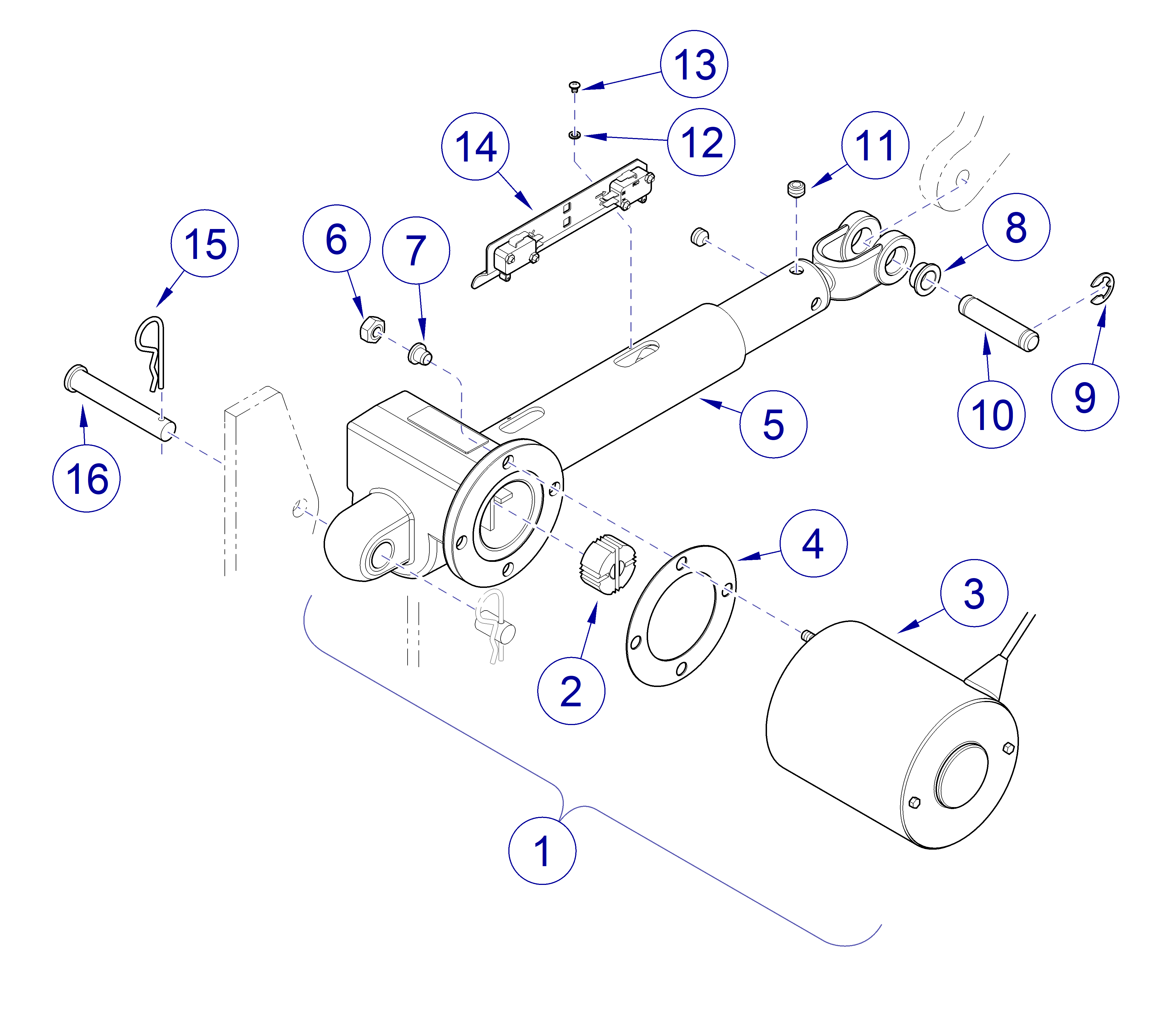

| 641 Chair Back Actuator / Limit Switches | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1072-01 |
Back Actuator Kit - includes items 2 thru 7 |
1 |
|
2 |
016-0662-00 |
Coupler |
1 |
|
3 |
015-1848-01 |
Motor |
1 |
|
4 |
053-1337-00 |
Isolator |
1 |
|
5 |
002-1072-00 |
Actuator Kit w/ o motor |
1 |
|
6 |
041-0010-10 |
Nut |
2 |
|
7 |
053-0198-00 |
Shoulder Washer |
1 |
|
8 |
016-0131-21 |
Bushing |
2 |
|
9 |
042-0007-00 |
Crescent Ring |
2 |
|
10 |
042-0637-00 |
Clevis Pin |
1 |
|
11 |
040-0312-60 |
Set Screw 5/16 - 18 x 1/4 - Torque: 18-22 ft-lbs |
2 |
|
12 |
045-0001-20 |
Lock Washer |
2 |
|
13 |
040-0006-36 |
Screw #6-32 x 3/16" |
2 |
|
14 |
015-2097-00 |
Limit Switch Assembly* - include switches, bracket, and harnesses |
1 |
|
15 |
042-0004-01 |
Cotter Pin |
1 |
|
16 |
042-0005-04 |
Clevis Pin |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
