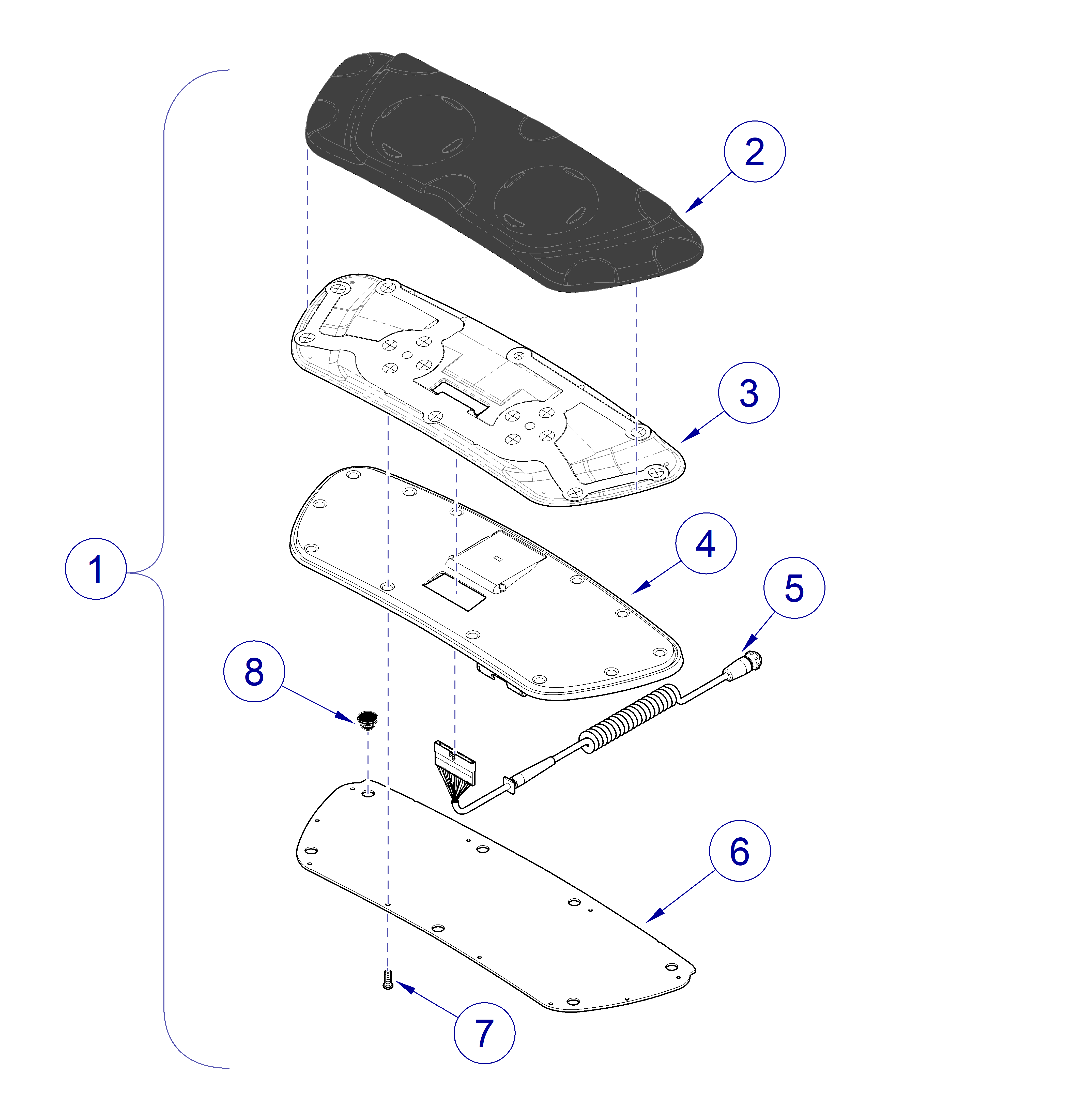

641 Chair Disc-Style Foot Control
|
Model |
641 |
| Serial Number | All |
Verify foot control style (Disc / Linear) when ordering parts.
| 641 Chair Disc-Style Foot Control | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Disc-Style Foot Control Assembly Options - includes items 2 thru 9 | ||
|
9A370002 |
Non-Programmable |
NLA |
|
|
9A370001 |
Programmable |
NLA |
|
|
2 |
Keypad Assembly Options | ||
|
029-3930-01 |
Non-Programmable |
NLA |
|
|
029-3930-00 |
Programmable |
NLA |
|
|
3 |
002-1024-00 |
Switch Membrane Kit |
NLA |
|
4 |
053-1688-00-312 |
Base |
1 |
|
5 |
015-1675-00 |
Cord |
1 |
|
6 |
050-6870-00-312 |
Base Plate |
1 |
|
7 |
042-0168-00 |
Screw 3.5 mm x 10 mm |
10 |
|
8 |
053-1439-00 |
Stem Bumper |
5 |
|
9 |
IPX1 Label - not shown |
NSS |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
