1.Remove foot extension upholstery and substrate (not shown).

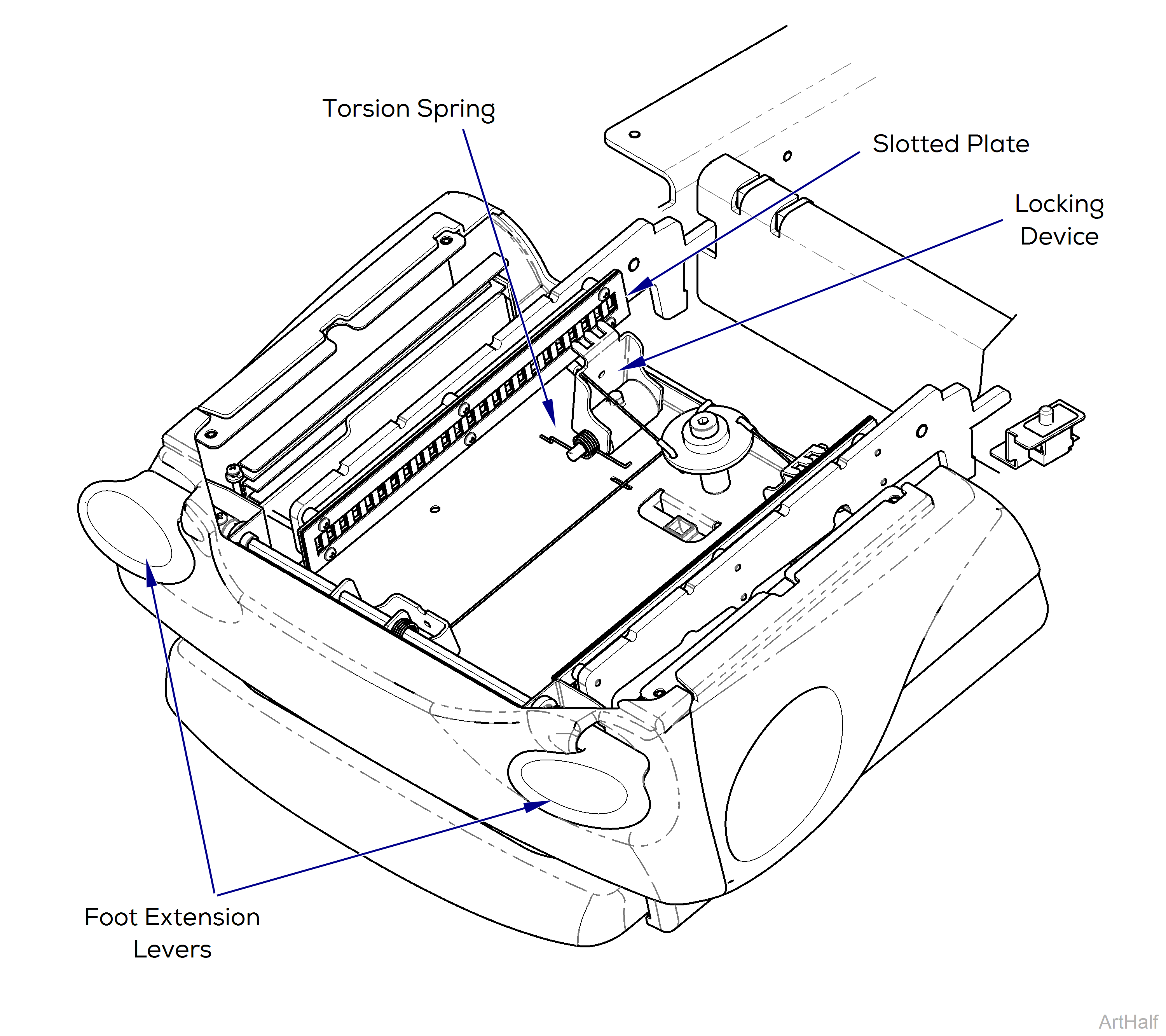

2.Press foot extension lever(s). Extend / retract foot extension. Linkage should retract two locking devices, disengaging the teeth from the slotted plates. This should allow foot extension to slide in and out.

3.Release foot extension lever(s). The torsion springs should pull the two locking devices into the locked position. The teeth should engage the slotted plates, locking the foot extension in position.

1.Tag and disconnect wires.

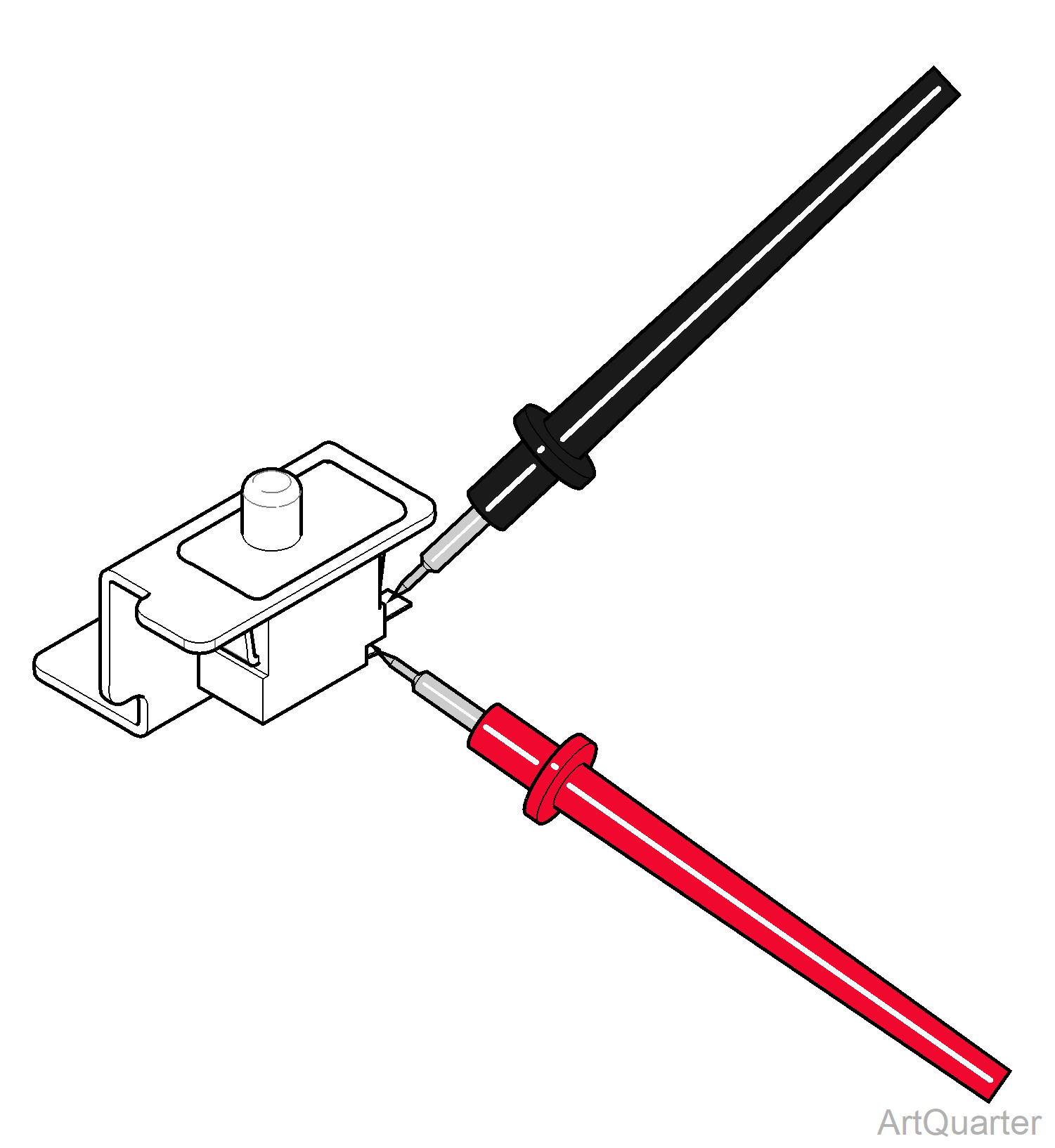

2.Place meter probes on COM and NC terminals.

With Switch Tripped
Meter Reading	Required Action
OL	Limit switch OK
Less than 5 Ω	Replace limit switch

With Switch Untripped
Meter Reading	Required Action
OL	Replace limit switch
Less than 5 Ω	Limit switch OK
