646 Chair Upholstery Access Procedures
Upholstery is fastened with hook and loop fastener. To remove, simply pull desired section away from mounting surface.

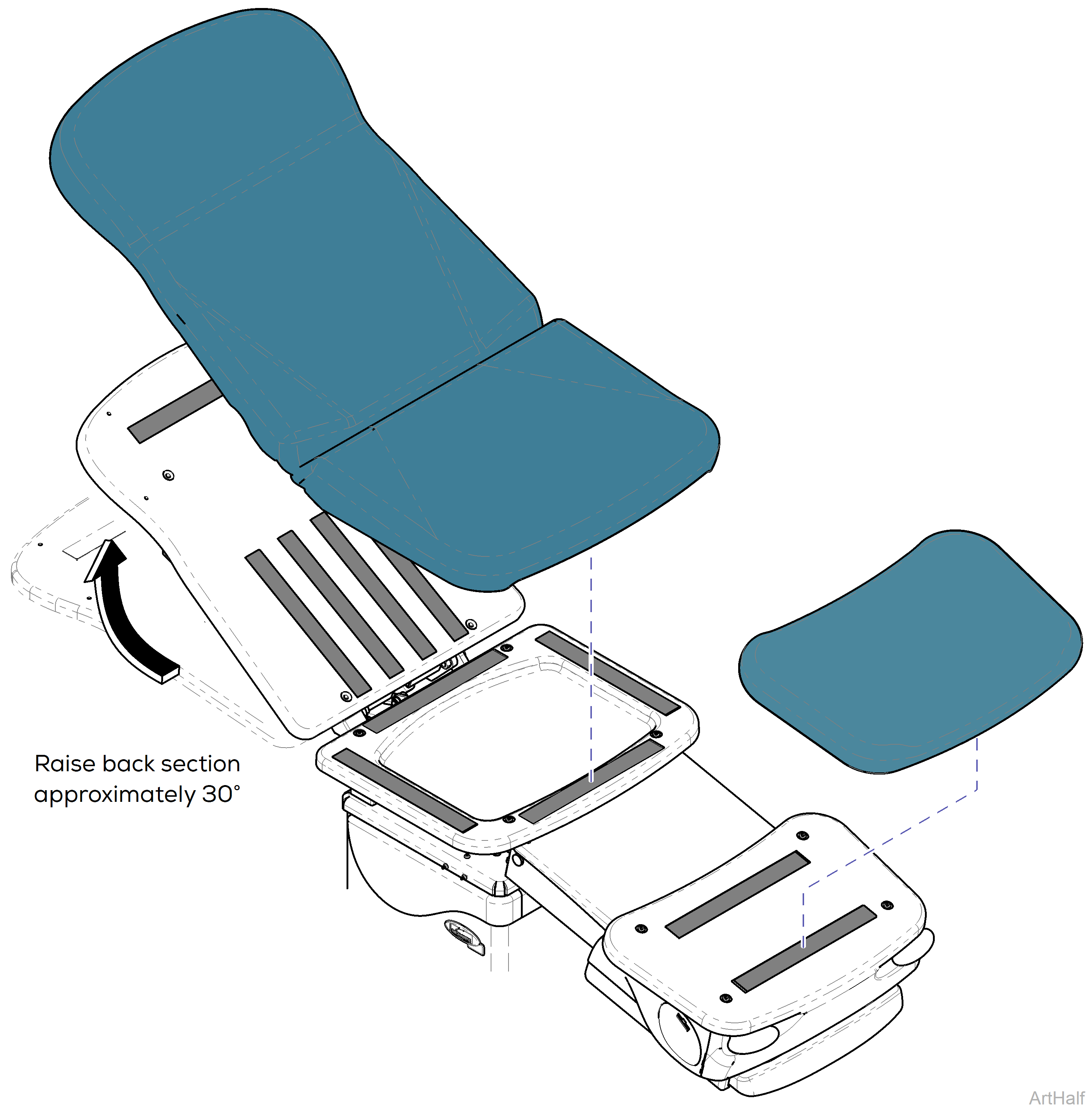

To install seat / back upholstery
1.Raise back section of table approximately 30°.
2.Position front of seat upholstery against mounting board.
3.Press seat section down firmly, then lay back section into position and press down firmly.
To install foot section upholstery
1.Position foot upholstery on mounting board.
2.Press down firmly.

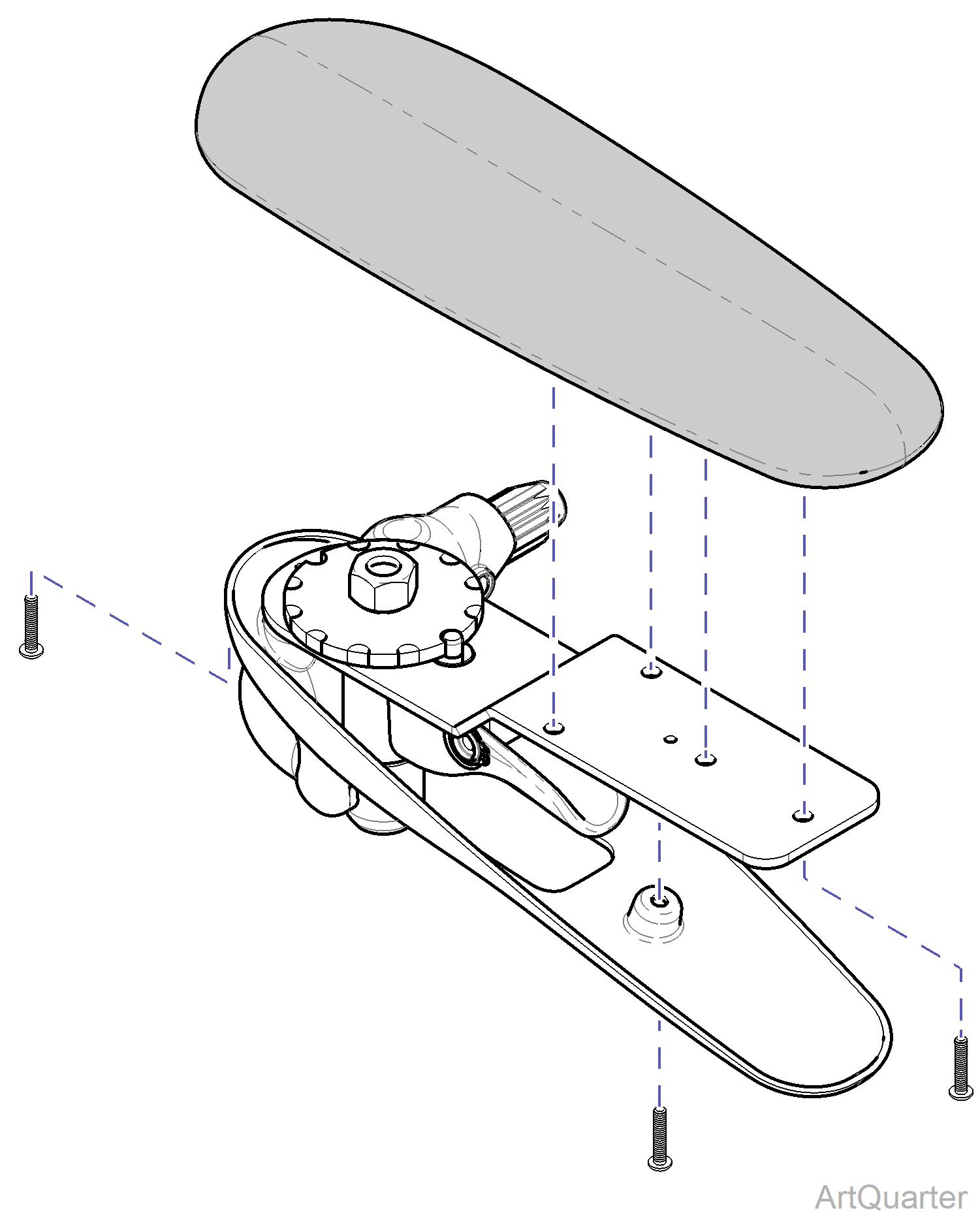

To replace chair arm upholstery
1.Remove two screws securing bottom cover.
2.Remove four screws securing upholstered pad.
3.Position new upholstered pad, then secure with four screws.
4.Position bottom cover, then secure with two screws.
