646 Chair Base Components

Model

 646
Serial Number V2200 thru V943862

646 Chair Base Components

646 Chair Base Components
Item Part Number Description Qty

1

 020-0262-00-341 PC Board Cover 1

2

 040-0010-129 Screw 10-24 x 1/2” 2

3

 045-0001-35 Lockwasher 2

4

 015-1596-00 Circuit Breaker - 5 amp 2

5

 041-0006-02 Nut 4

6

 015-0083-02 Receptacle 2

7

 040-0010-47 Screw 10-24 x 3/8” 10

8

 050-5952-00 Receptacle Plate 2

9

 040-0006-13 Screw 6-32 x 3/8” 4

10

 016-0001-01 Leveling Foot 4

11

020-0246-00

 Base Casting

NSS

12

 Refer to: Column Components -

13

 053-1664-00-000 Standoff 7

14

 050-7389-00-312 Mounting Plate 1

15

 002-10296-00 Replacement PCB Assembly Kit 1

16

 053-0050-19 Hole Plug 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 646
Serial Number V943863 thru V1977127

646 Chair Base Components

646 Chair Base Components
Item Part Number Description Qty

1

 020-0262-00-341 PC Board Cover 1

2

 040-0010-129 Screw 10-24 x 1/2” 2

3

 045-0001-35 Lockwasher 2

4

 015-1596-00 Circuit Breaker - 5 amp 2

5

 041-0006-02 Nut 4

6

 015-0083-02 Receptacle 2

7

 040-0010-47 Screw 10-24 x 3/8” 10

8

 053-2197-00-312 Receptacle Plate 2

9

 040-0006-13 Screw 6-32 x 3/8” 4

10

 016-0001-01 Leveling Foot 4

11

020-0246-00

 Base Casting

NSS

12

 Refer to: Column Components -

13

 053-1664-00-000 Standoff 7

14

 050-7389-00-312 Mounting Plate 1

15

 002-10296-00 Replacement PCB Assembly Kit 1

16

 053-0050-19 Hole Plug 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 646
Serial Number

V1977128 thru V2785525

646 Chair Base Components

646 Chair Base Components
Item Part Number Description Qty

1

 020-0262-00-341 PC Board Cover 1

2

 040-0010-129 Screw 10-24 x 1/2” 2

3

 045-0001-35 Lockwasher 2

4

 002-10401-00 Power / QuickChair PC Board 1

5

 053-1664-00-000 Standoff 12

6

 040-0008-78 Screw 8-32 x 1/4” 2

7

 015-10414-00 EMI Filter 1

8

 015-1596-00 Circuit Breaker - 5 amp 2

9

 041-0006-02 Nut 4

10

 015-0083-02 Receptacle 2

11

 040-0010-47 Screw 10-24 x 3/8” 10

12

 053-2197-00-312 Receptacle Plate 2

13

 040-0006-13 Screw 6-32 x 3/8” 4

14

 016-0001-01 Leveling Foot 4

15

020-0246-00

 Base Casting

NSS

16

015-1633-01

 Self Mount Cable Tie NSS

17

 050-11232-00-312 PCB Mounting Plate 1

18

 002-10402-00 Motor Control PC Board 1

19

 053-0050-19 Hole Plug 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 646
Serial Number

V2785526 thru Present

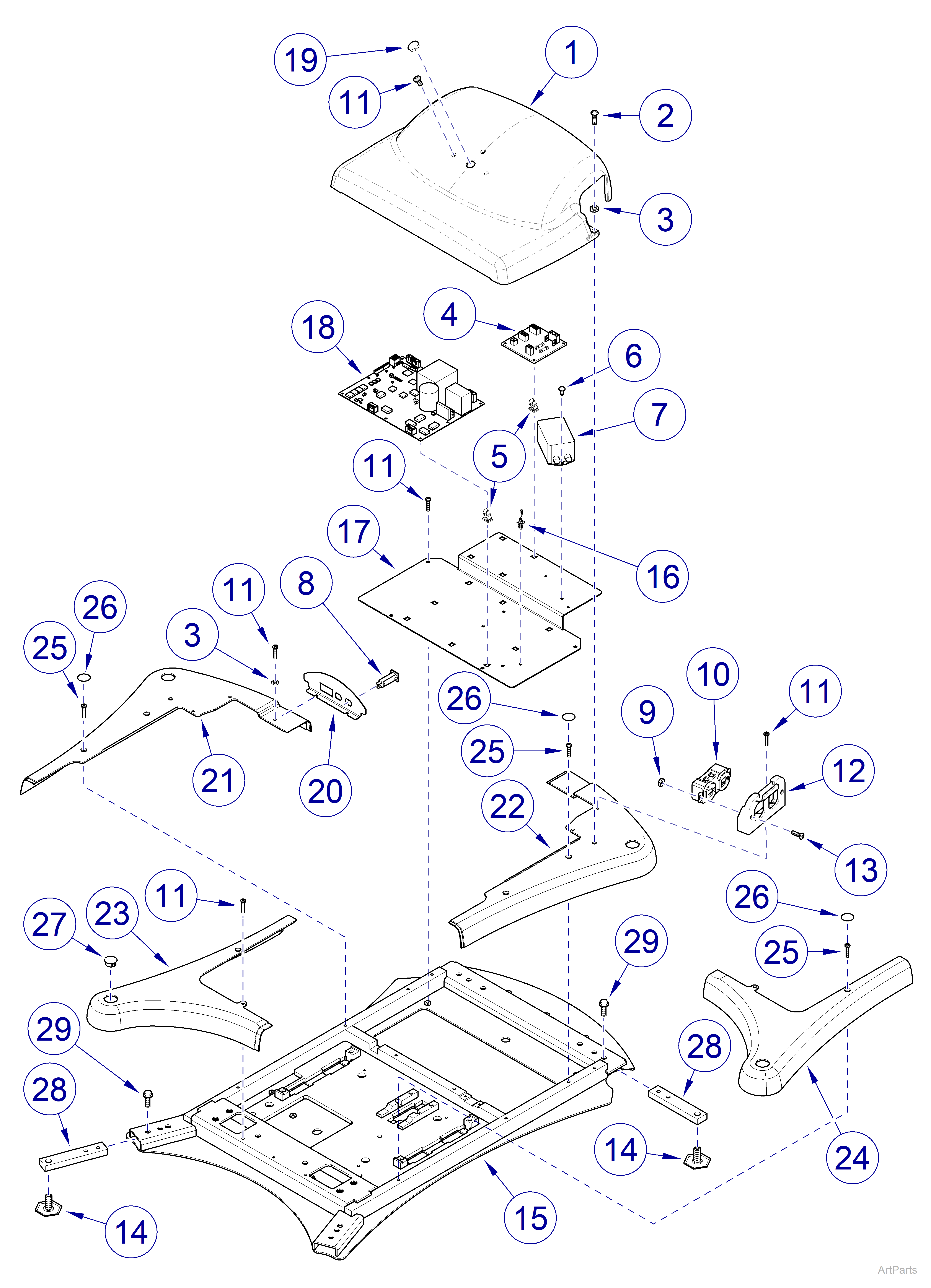

646 Chair Base Components

646 Chair Base Components
Item Part Number Description Qty

1

 020-0262-00-341 PC Board Cover 1

2

 040-0010-129 Screw 10-24 x 1/2” 2

3

 045-0001-35 Lockwasher 4

4

 002-10401-00 Power / QuickChair PC Board 1

5

 053-1664-00-000 Standoff 12

6

 040-0008-78 Screw 8-32 x 1/4” 2

7

 015-10414-00 EMI Filter 1

8

 015-1596-00 Circuit Breaker - 5 amp 2

9

 041-0006-02 Nut 4

10

 015-0083-02 Receptacle 2

11

 040-0010-47 Screw 10-24 x 3/8” 14

12

 053-2197-00-312 Receptacle Plate 2

13

 040-0006-13 Screw 6-32 x 3/8” 4

14

 016-1196-00 Leveling Foot 4

15



 BaseWeldment

NSS

16

015-1633-01

 Self Mount Cable Tie NSS

17

 050-13319-00-813 PCB Mount 1

18

 002-10402-00 Motor Control PC Board 1

19

 053-0050-19 Hole Plug 1

20

 050-13242-01-312 Inlet Plate 1

21

 020-10141-00-312 Patient Right Rear Cover 1

22

 020-10142-00-312 Patient Left Rear Cover 1

23

 020-10140-00-312

Patient Right Front Cover

 1

24

 020-10139-00-312 Patient Left Front Cover 1

25

 040-0010-75 Screw 10-24 x 3/8" 6

26

 016-1760-01-312 Cap 6

27

053-0050-02

Hole Plug 4

28

 051-1292-00-216

Leveling Foot Mount

 4

29

 040-0312-21 Bolt 5/16-18 x 5/8" Socket Head 8

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
