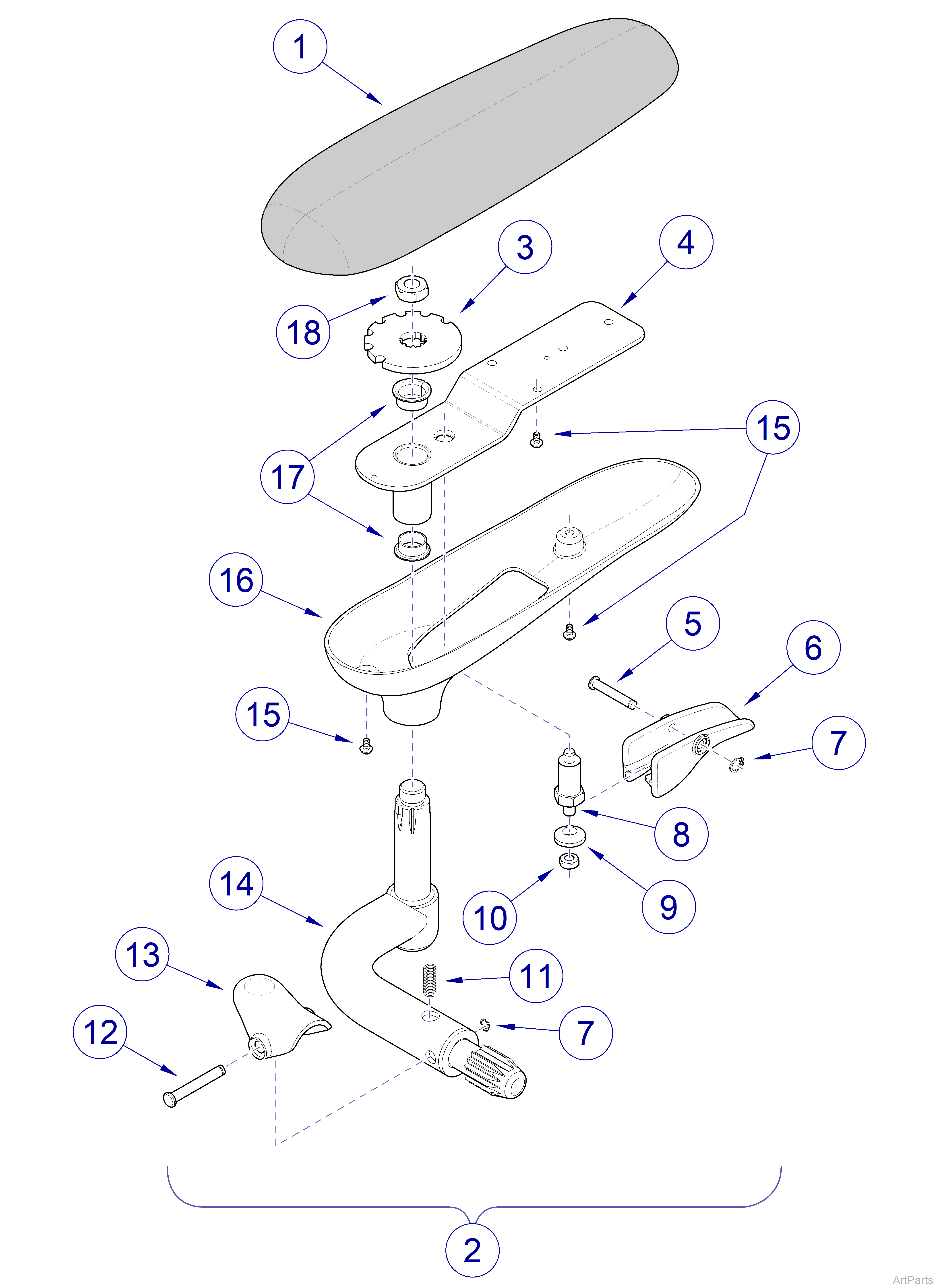

646 Chair Arms
|
Model |
646 |
| Serial Number | All |
Refer to: Upholstery Color Options for the order number extension of your desired color.
| 646 Chair Arms | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Upholstered Chair Arm Options Refer to: Upholstery | ||
| 9A396001-xxx | Premium Standard and UltraFree Upholstery | - | |
|
9A397001-xxx |
Premium Standard and UltraFree Upholstery-Cal 133 | NLA | |
| 9A398001-xxx | Ultra Premium Upholstery | - | |
|
9A399001 xxx |
Ultra Premium Upholstery-Cal 133 | NLA | |
|
2 |
Chair Arm Mechanism Options - includes items 3 thru 18 | ||
| 029-4718-00 | Right Hand | 1 | |
| 029-4718-01 | Left Hand | 1 | |
|
3 |
050-6916-00 | Lock Plate | 1 |
|
4 |
030-1660-00-312 | Arm Weldment | 1 |
|
5 |
042-0606-01 | Clevis Pin | 1 |
|
6 |
053-1332-01 | Pivot Handle | 1 |
|
7 |
042-0056-05 | Retaining Ring | 2 |
|
8 |
016-0946-00 | Indexing Plunger | 1 |
|
9 |
045-0001-129 | Spherical Washer | 1 |
|
10 |
041-0026-03 | Nut | 1 |
|
11 |
025-0042-11 | Compression Spring | 1 |
|
12 |
042-0606-00 | Clevis Pin | 1 |
|
13 |
053-1339-01 | Retainer Clip | 1 |
|
14 |
Shaft Weldment Options | ||
| 030-1658-01-312 | Left Hand - Shown | 1 | |
| 030-1658-00-312 | Right Hand | 1 | |
|
15 |
040-0010-47 | Screw 10-24 x 3/8” | 6 |
|
16 |
053-1763-00-312 | Bottom Cover | 1 |
|
17 |
016-0392-04 | Flange Bearing | 2 |
|
18 |
041-0625-00 | Nut - Apply Loctite 242 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
