647 Chair QuickChair Function Troubleshooting

647 Chair QuickChair Function

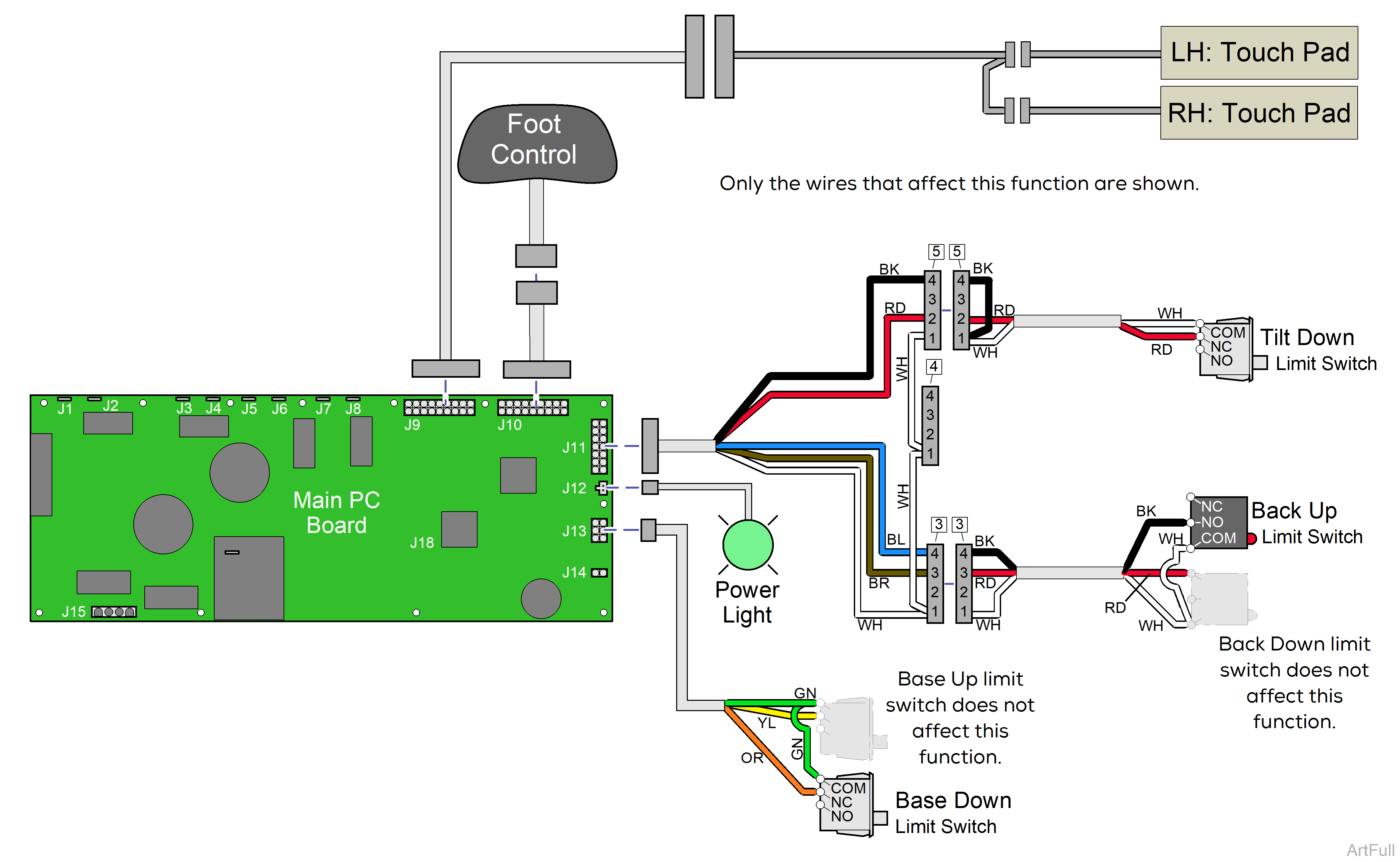

This function activates the Base Down, Back Up, and Tilt Down functions simultaneously to move the chair into chair position. This illustration shows only the components that affect the QuickChair function. A detailed description of the QuickChair Function appears below.

•If actuator(s) are not working properly, Refer to: that specific Troubleshooting topic, for example; Base Up / Down Function, Back Up/Down Function.

•If power light is OFF: Refer to: Power to the Chair for troubleshooting.

•If power light is ON: Proper voltage is present at PC board.

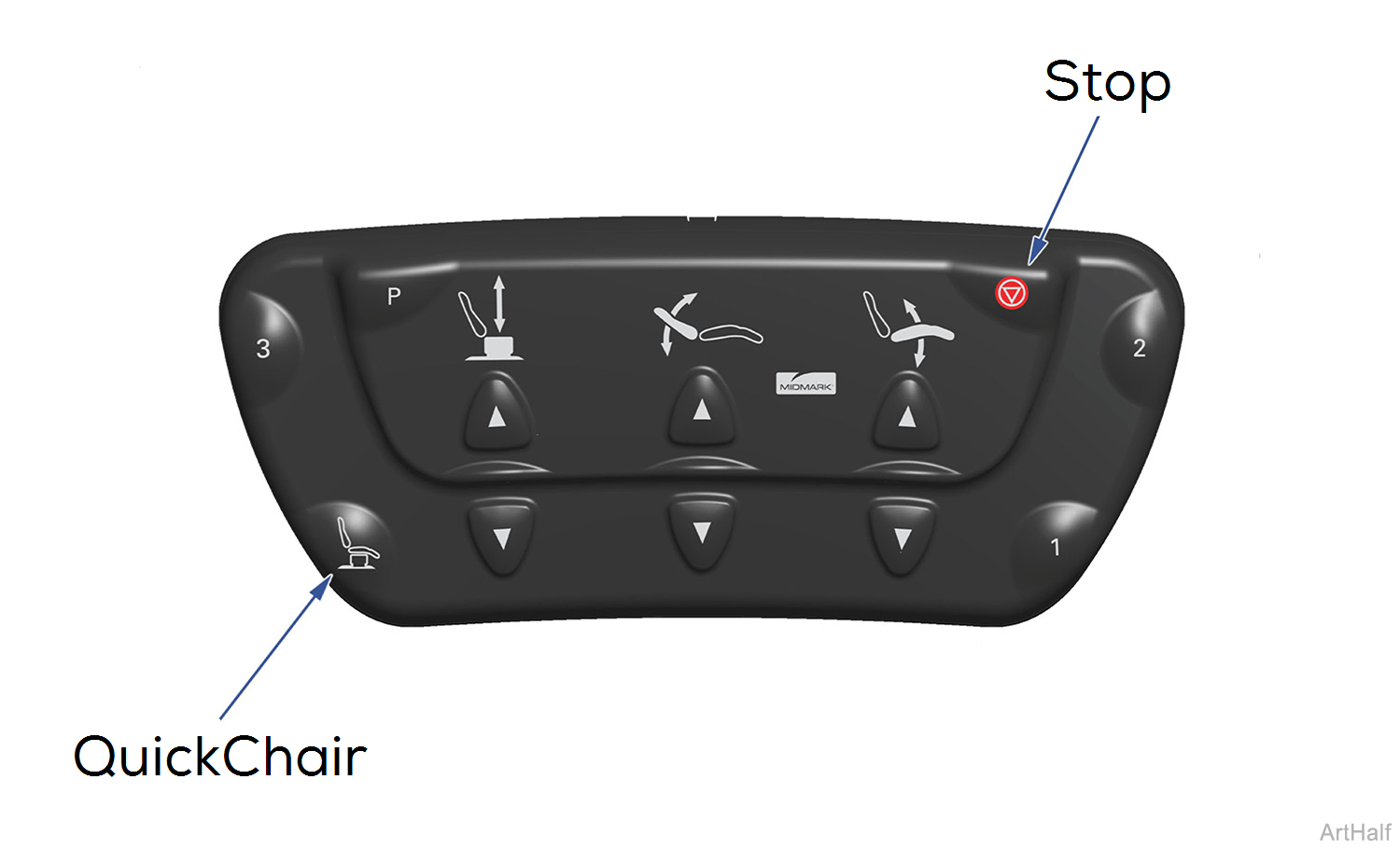

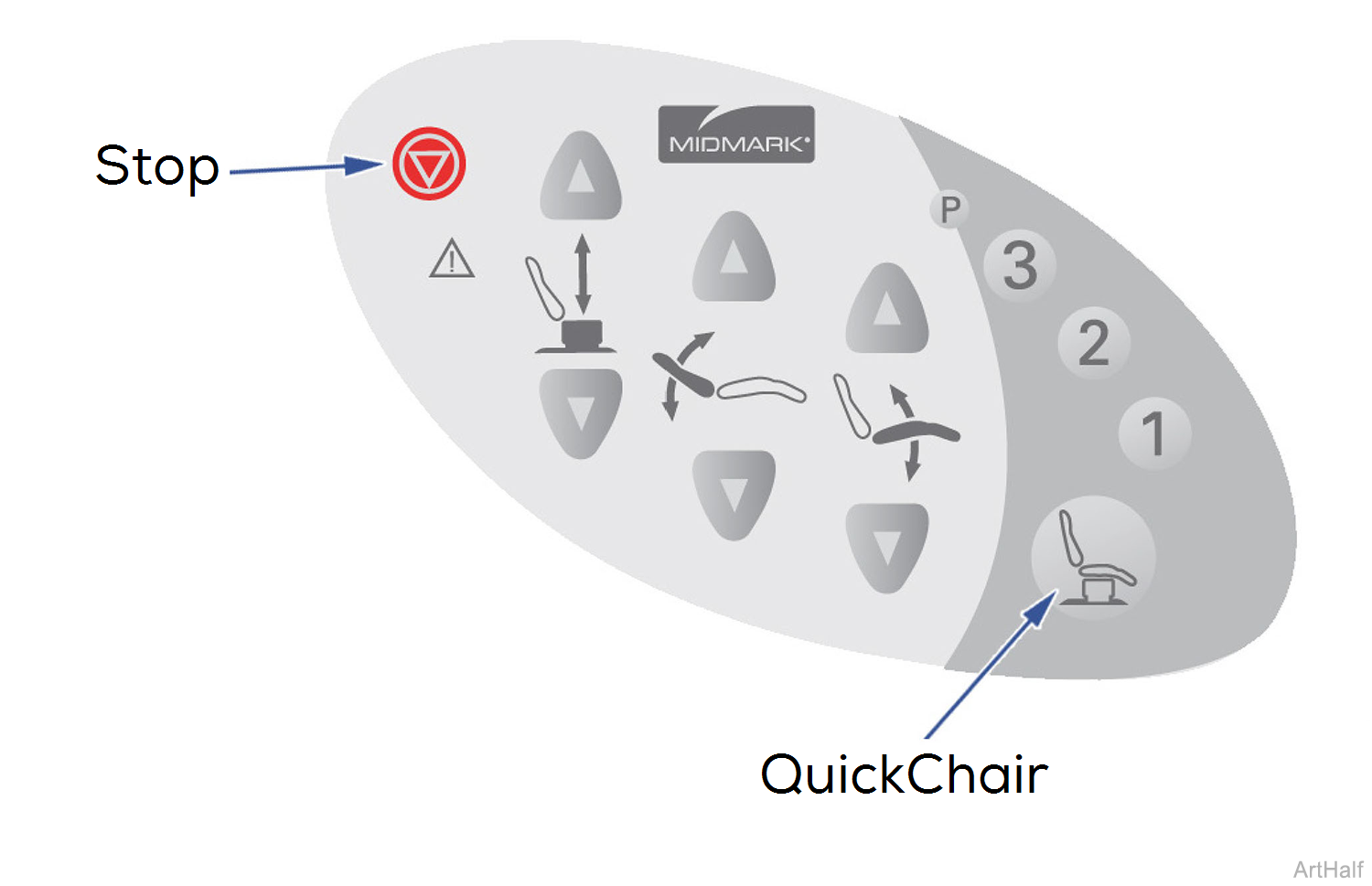

647 Chair Control Pad 647 Chair Foot Control

What is Chair Position?

•Base: all the way down

•Tilt: all the way down

•Back: all the way up

How it works.

When the QuickChair button is pressed and held, the PC board activates the following functions:

•Base Down Function runs until the Base Down limit switch is tripped.

•Tilt Down Function runs until the Tilt Down limit switch is tripped

•Back Up Function runs until the Back Up limit switch is tripped
