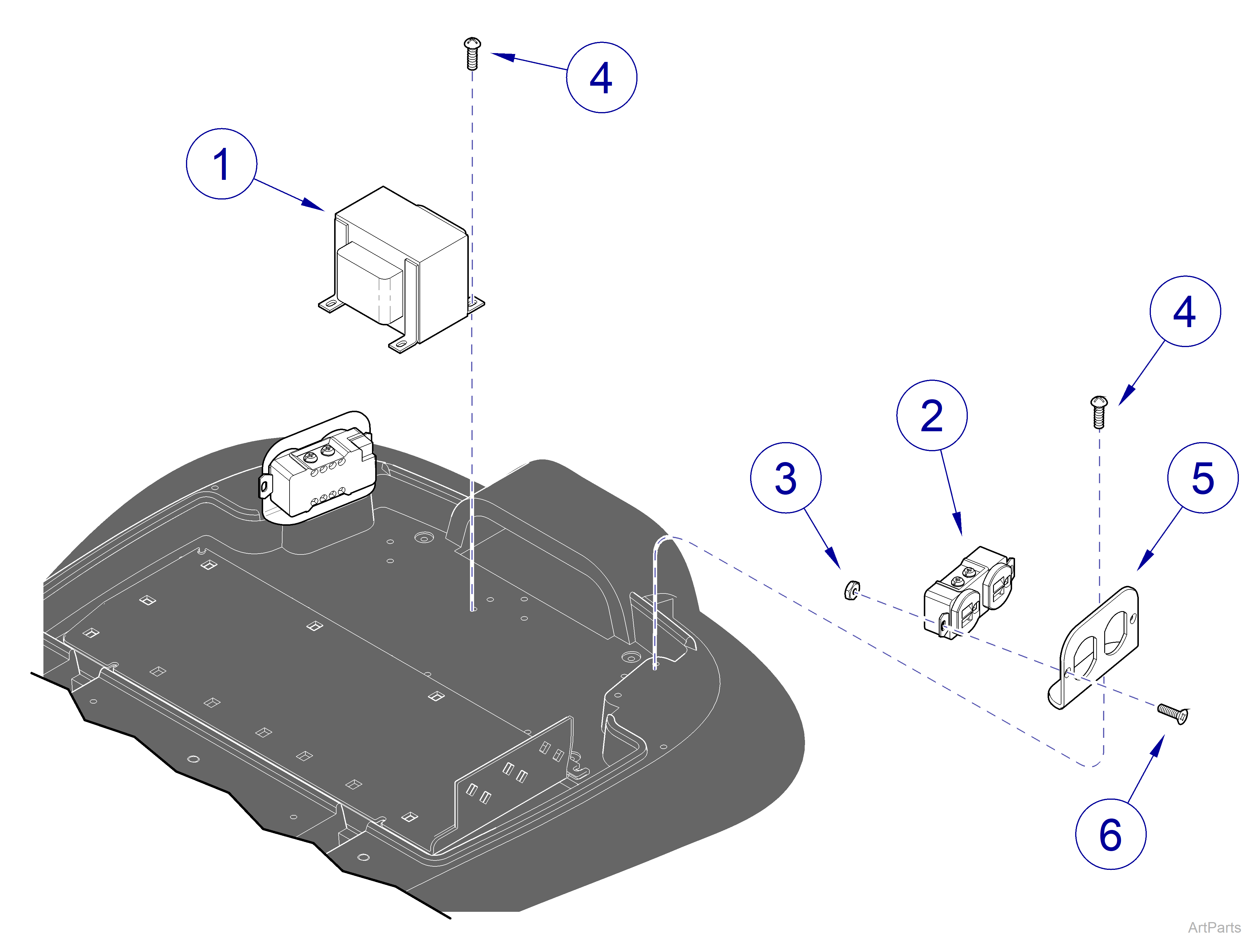

647 Chair Receptacles
|
Model |
647-001 and -002 |
| Serial Number | All |
| 647 Chair Receptacles | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
015-1781-00 | Isolation Transformer | 1 |
|
2 |
040-0010-129 | Screw #10-24 x 1/2” | 1 |
|
3 |
045-0001-144 | Rubber Washer | 4 |
|
4 |
015-0083-02 | Duplex Receptacle | 2 |
|
5 |
041-0006-02 | Nut #6-32 | 4 |
|
6 |
040-0010-47 | Screw #10-24 x 3/8” | 2 |
|
7 |
050-5952-00 | Receptacle Plate | 2 |
|
8 |
040-0006-13 | Screw #6-32 self tapping | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
