230 Universal Procedures Chair Base Shrouds Access Procedures

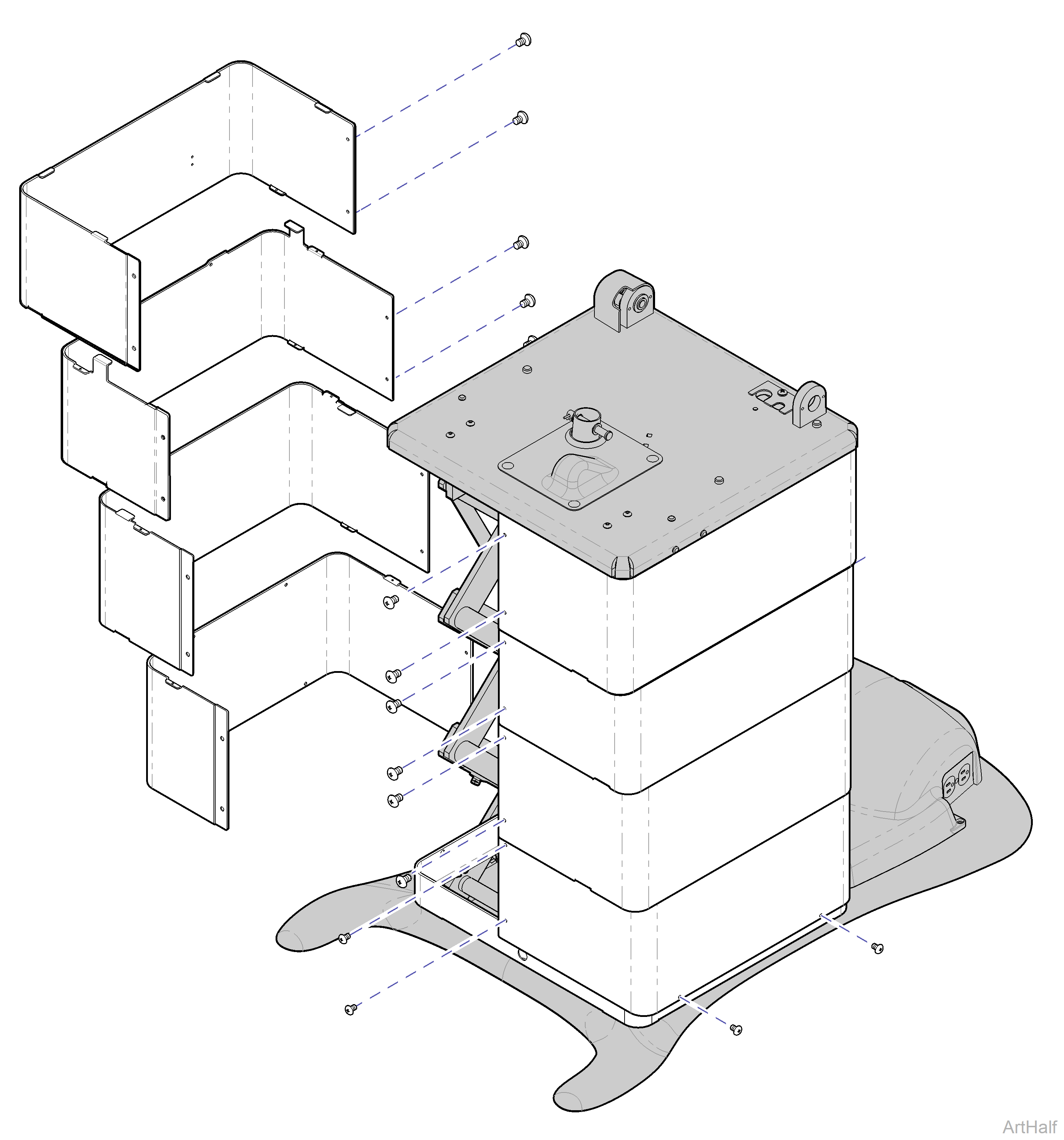

If possible, lower the base completely before removing the shrouds. This illustration shows the base raised, and the top components removed for clarity only.
Removal

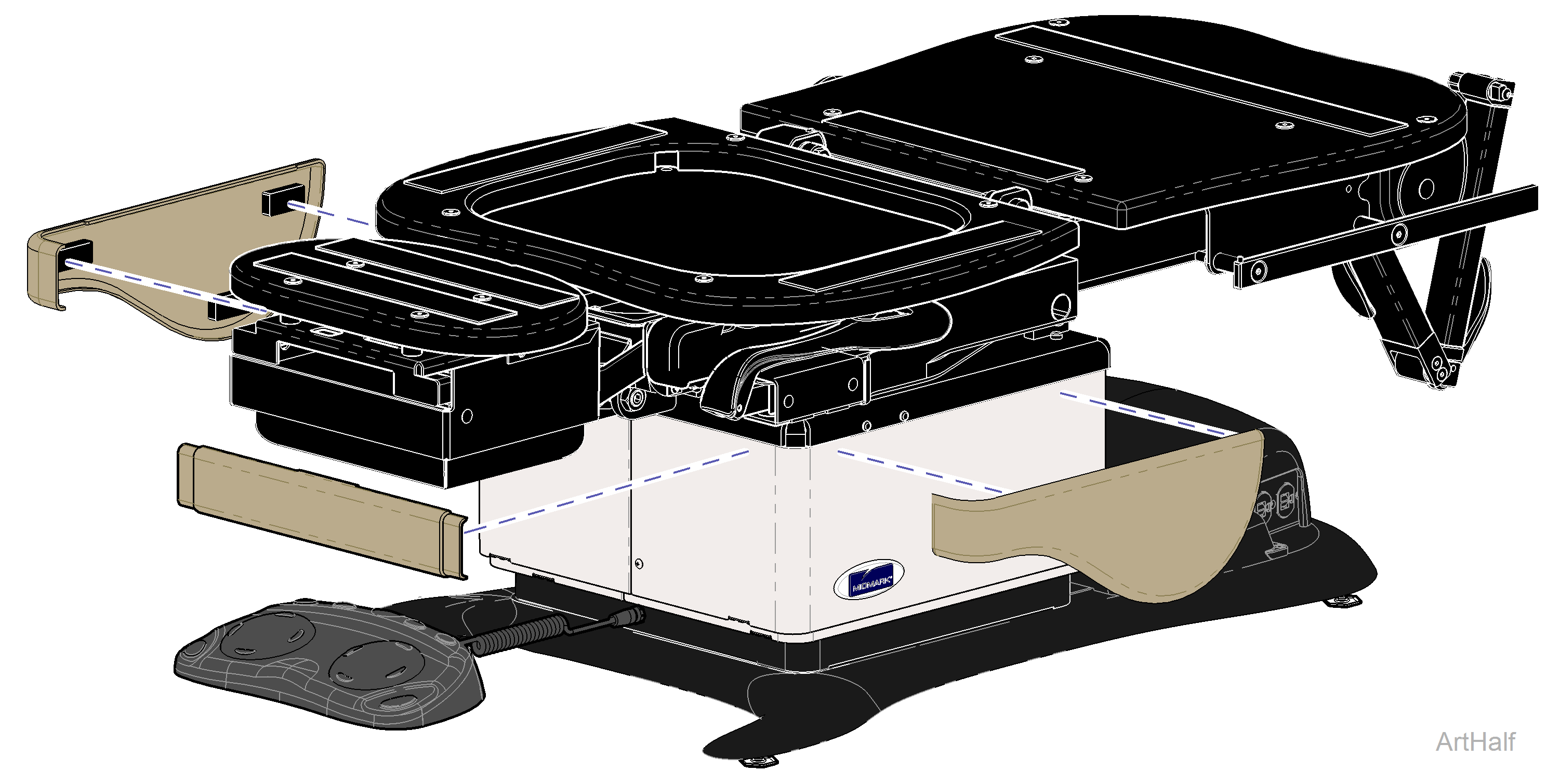

1.Midmark models only Remove magnetic covers.
2.Remove screws from both ends of outer shrouds. Pull shrouds outward to disengage tabs. Repeat for middle and inner shrouds
3.Remove bottom screws from inner shrouds.
Installation
1.Position inner shrouds. Secure with screws at both ends and bottom.
2.Position middle shrouds. Secure with screws at both ends. Be sure shroud tabs stack on top of each other.
3.Position outer shrouds. Secure with screws at both ends. Insert shroud tabs into seat weldment slots.
4.Midmark models only Install magnetic covers.
