230 Universal Procedures Chair Base Shrouds

Model

 230
Serial Number

V1000 Thru V2785525

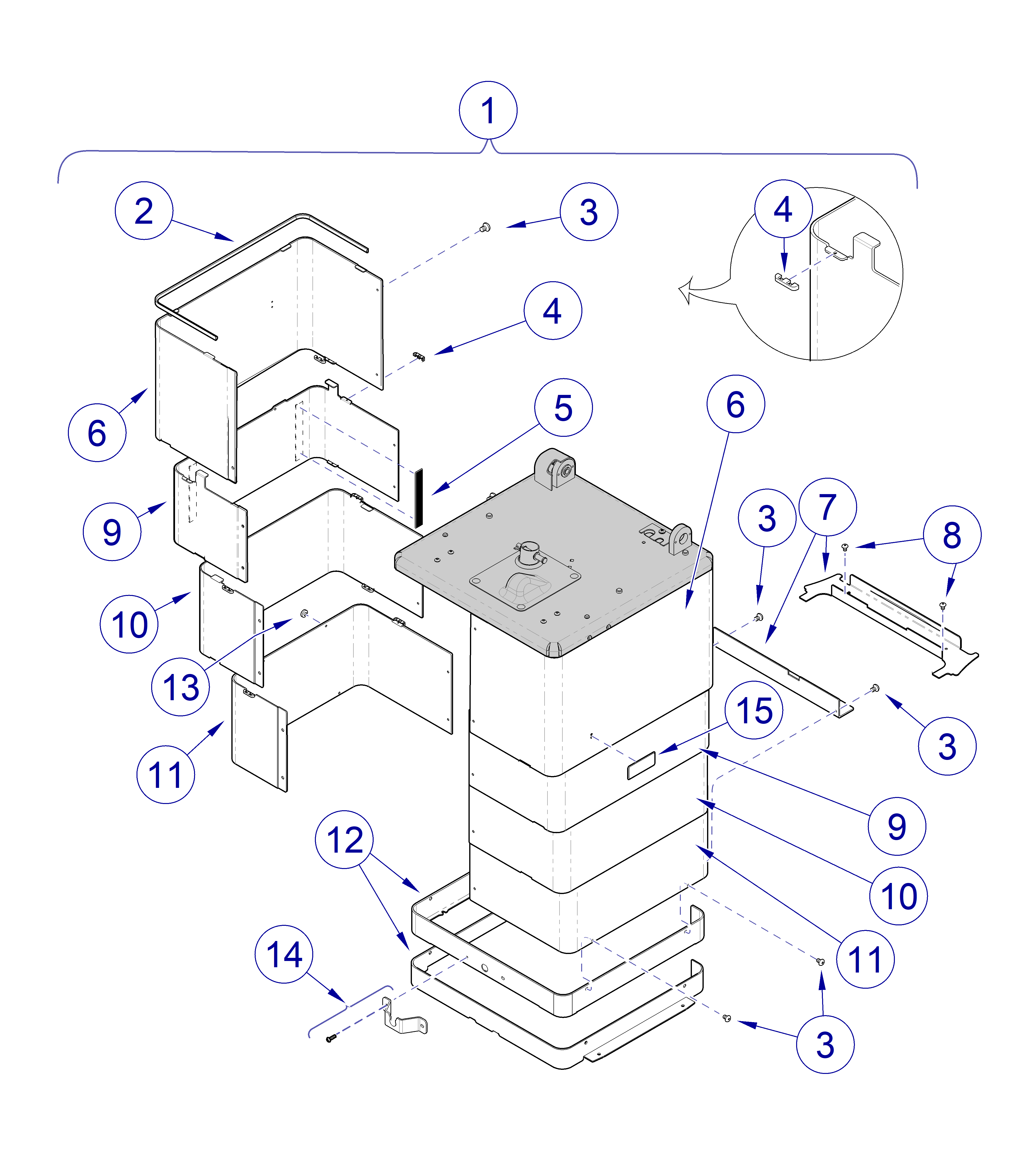

230 and 630 Chair Ritter Model Base Shroud

Shroud assemblies include all Snap-on-Guides (item 4) and nutserts.

230 Universal Procedures Chair Ritter Model Base Shroud
Item Part Number Description Qty

1

 Ritter Shroud Set Options - include items 2 thru 13
  002-0899-01 Rotational base (Black) 1
  002-0899-02 Standard base (Shadow) 1
  002-0899-03 Rotational base (Shadow) 1

2

 053-0717-00 Outer Shroud Seal 2

3

 040-0008-106 Screw #8-32 x 1/4" truss head 22

4

 053-0752-00 Snap-on-guide 24

5

 053-0105-40 Loop Fastener 4

6

 029-3373-00 Outer Shroud Assembly 2

7

 Wire Harness Cover Options


050-5966-02

Standard base 1
  050-6442-00-341 Rotational base 1

8

 040-0010-109 Screw 2

9

 002-10345-00 Middle Outer Shroud Assembly 2

10

 002-10344-00 Middle Inner Shroud Assembly 2

11

 002-10343-00 Inner Shroud 2

12

 Shroud Spacer Options
  002-1569-01 Standard base - include two #8-32 x 3/8" screws 1
  029-3648-01 Rotational base 1

13

 053-2301-00 Bumper 2

14

 002-0962-03 Control Cord Bracket Kit - include bracket, two #8-32 x 3/8" screws, and two nuts 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 230
Serial Number

V2785526 Thru V2857259

230 and 630 Chair Ritter Model Base Shroud

Shroud assemblies include all Snap-on-Guides (item 4) and nutserts.

230 Universal Procedures Chair Ritter Model Base Shroud
Item Part Number Description Qty

1

 Ritter Shroud Set Options - include items 2 thru 13
  002-0899-00 Canadian base (Black) 1
  002-0899-01 Rotational base (Black) 1
  002-0899-03 Rotational base (Shadow) 1
  002-0899-04 Welded Standard base (Black) 1

2

 053-0717-00 Outer Shroud Seal 2

3

 040-0008-106 Screw #8-32 x 1/4" truss head 22

4

 053-0752-00 Snap-on-guide 24

5

 053-0105-40 Loop Fastener 4

6

 029-3373-00 Outer Shroud Assembly 2

7

 Wire Harness Cover Options


050-13243-00-312

Standard base 1
  050-6442-00-341 Rotational base 1

8

 040-0010-109 Screw 2

9

 002-10345-00 Middle Outer Shroud Assembly 2

10

 002-10344-00 Middle Inner Shroud Assembly 2

11

 002-10343-00 Inner Shroud 2

12

 Shroud Spacer Options
  002-1569-01 Standard base - include two #8-32 x 3/8" screws 1
  029-3648-01 Rotational base 1

13

 053-2301-00 Bumper 2

14

 002-0962-03 Control Cord Bracket Kit - include bracket, two #8-32 x 3/8" screws, and two nuts 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 230
Serial Number

V2857260 Thru Present

230 and 630 Chair Ritter Model Base Shroud

Shroud assemblies include all Snap-on-Guides (item 4) and nutserts.

230 Universal Procedures Chair Ritter Model Base Shroud
Item Part Number Description Qty

1

 Ritter Shroud Set Options - include items 2 thru 13
  002-0899-00 Canadian base (Black) 1
  002-0899-01 Rotational base (Black) 1
  002-0899-03 Rotational base (Shadow) 1
  002-0899-04 Welded Standard base (Black) 1

2

 053-0717-00 Outer Shroud Seal 2

3

 040-0008-106 Screw #8-32 x 1/4" truss head 22

4

 053-0752-00 Snap-on-guide 24

5

 053-0105-40 Loop Fastener 4

6

 029-3373-00 Outer Shroud Assembly 2

7

 Wire Harness Cover Options


050-13243-00-312

Standard base 1
  050-6442-00-341 Rotational base 1

8

 040-0010-109 Screw 2

9

 002-10345-00 Middle Outer Shroud Assembly 2

10

 002-10344-00 Middle Inner Shroud Assembly 2

11

 002-10343-00 Inner Shroud 2

12

 Shroud Spacer Options
  002-1569-01 Standard base - include two #8-32 x 3/8" screws 1
  029-3648-01 Rotational base 1

13

 053-2301-00 Bumper 2

14

 002-0962-03 Control Cord Bracket Kit - include bracket, two #8-32 x 3/8" screws, and two nuts 1

15

 053-10849-00 Ritter Badge 2

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
