230 Universal Procedures Chair Rotational Base Brake System PC Board Replacement Test and Repair

Model

 230-003
Serial Number All

230 and 630 Chair Rotational Base Brake System Rotational Base PC Board Replacement

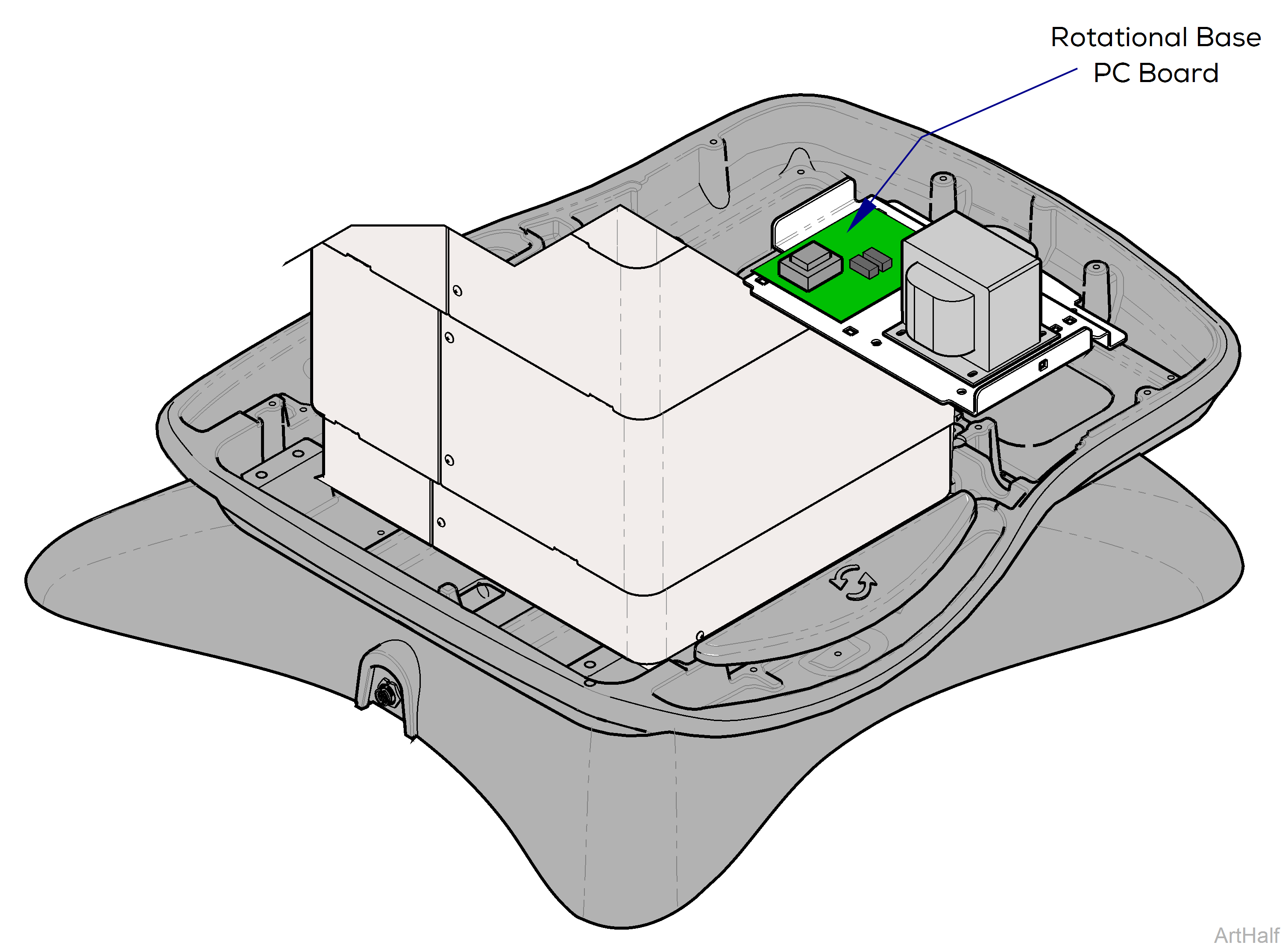

1.Remove PC board cover. Refer to: PC Board Cover

2.Tag and disconnect all wire harnesses from board.

230 and 630 Chair Rotational Base Brake System Rotational Base PC Board Replacement

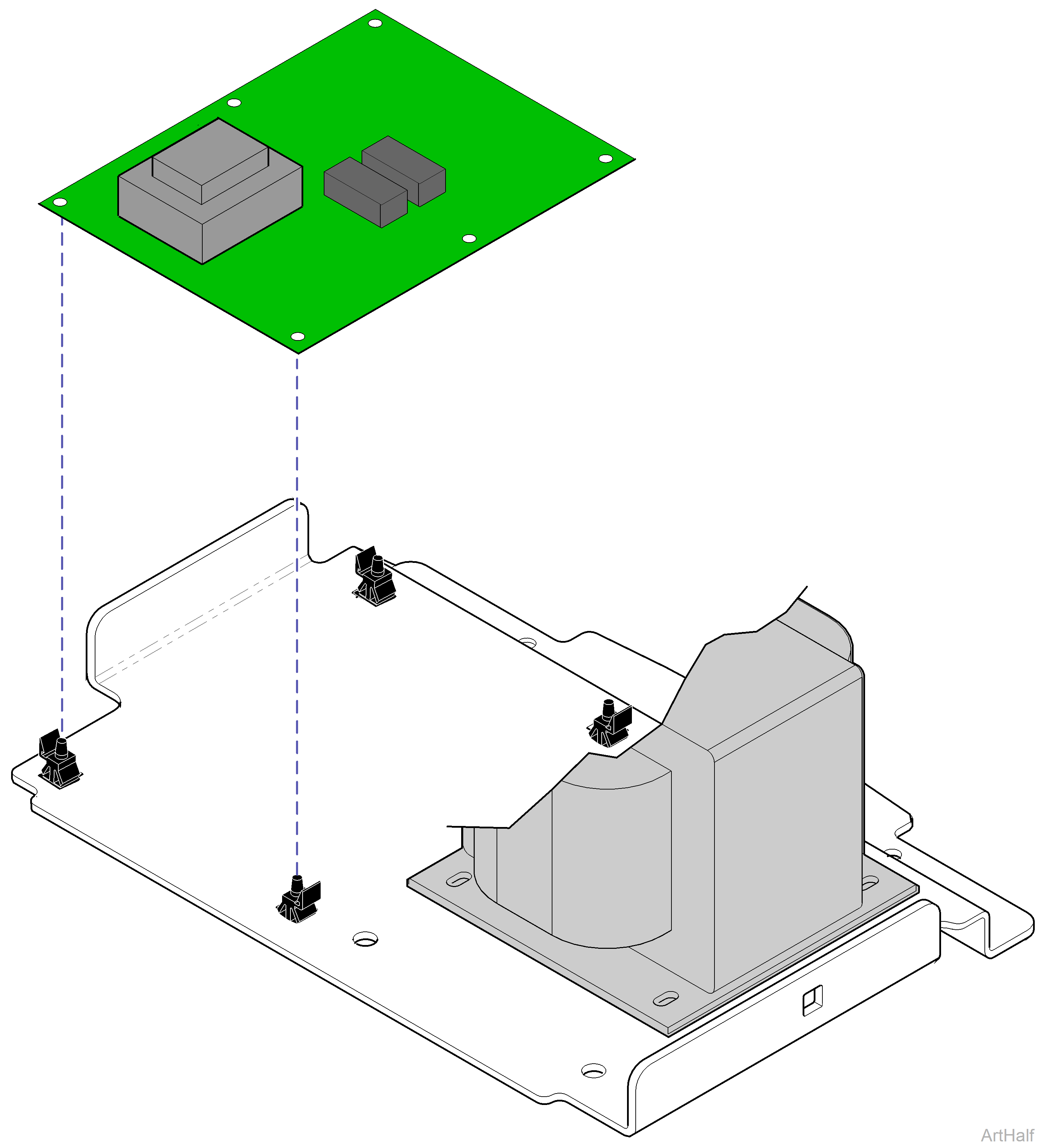

3.Push tabs back and remove board from mounting studs.

230 and 630 Chair Rotational Base Brake System Rotational Base PC Board Replacement

1.Align board with mounting studs, then press down until tabs lock board in place.

To minimize stress on the board, work from one end to the other.

2.Connect all wire harnesses to proper terminals.
