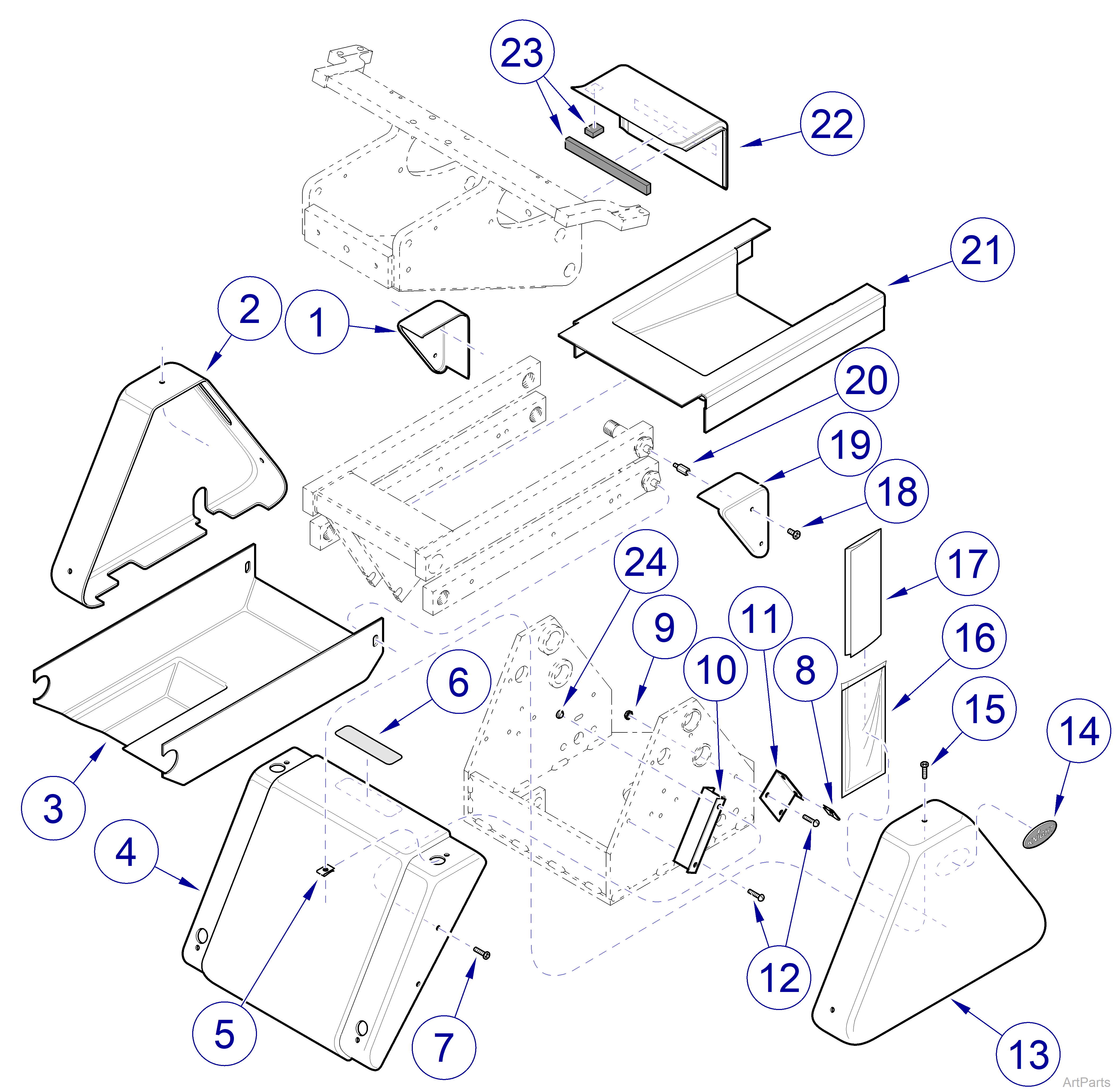

Biltmore/Knight Chairs Covers
Serial Number Range: V2200 thru V160530
|
Model |
Biltmore/Knight Chairs |
| Serial Number | V2200 thru V160530 |
| Biltmore/Knight Chairs Covers | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
121904-01 | RH Platform Cover | 1 |
|
2 |
122069-01 | RH Base Cover | 1 |
|
3 |
121026-01 | Lower Arm Cover | 1 |
|
4 |
122623-01 | Center Base Cover | 1 |
|
5 |
121971 | Nut Clip | 4 |
| 6 | 561-0262-01 | Electrical Shock Label | 1 |
| 7 | 105480 | Screw | 4 |
| 8 | 121972 | Nut Clip | 2 |
| 9 | 122357 | Locknut | 2 |
| 10 | 121887-2 | Cover Mounting Bracket | 2 |
| 11 | 121963-2 | Cover Mounting Bracket | 2 |
| 12 | 040-0010-183 | Screw | 6 |
| 13 |
121890-01 |
LH Base Cover | NLA |
| 14 | 061-0803-00 | Name Plate | 2 |
| 15 | 121980-50 | Screw | 6 |
| 16 | S006-00895 | Plastic Sleeve | 1 |
| 17 | Wiring Diagram | 1 | |
| 18 | 121981-50 | Screw | 4 |
| 19 | 121905-01 | LH Platform Cover | 1 |
| 20 | 119610 | Standoff | 4 |
| 21 | 121027-01 | Upper Arm Cover | 1 |
| 22 | 121903-01 | Center Platform Cover - Includes Item 23 | 1 |
| 23 | 275479 | Foam Spacer Material | AR |
| 24 | 117977 | Self-Clinch Nut | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

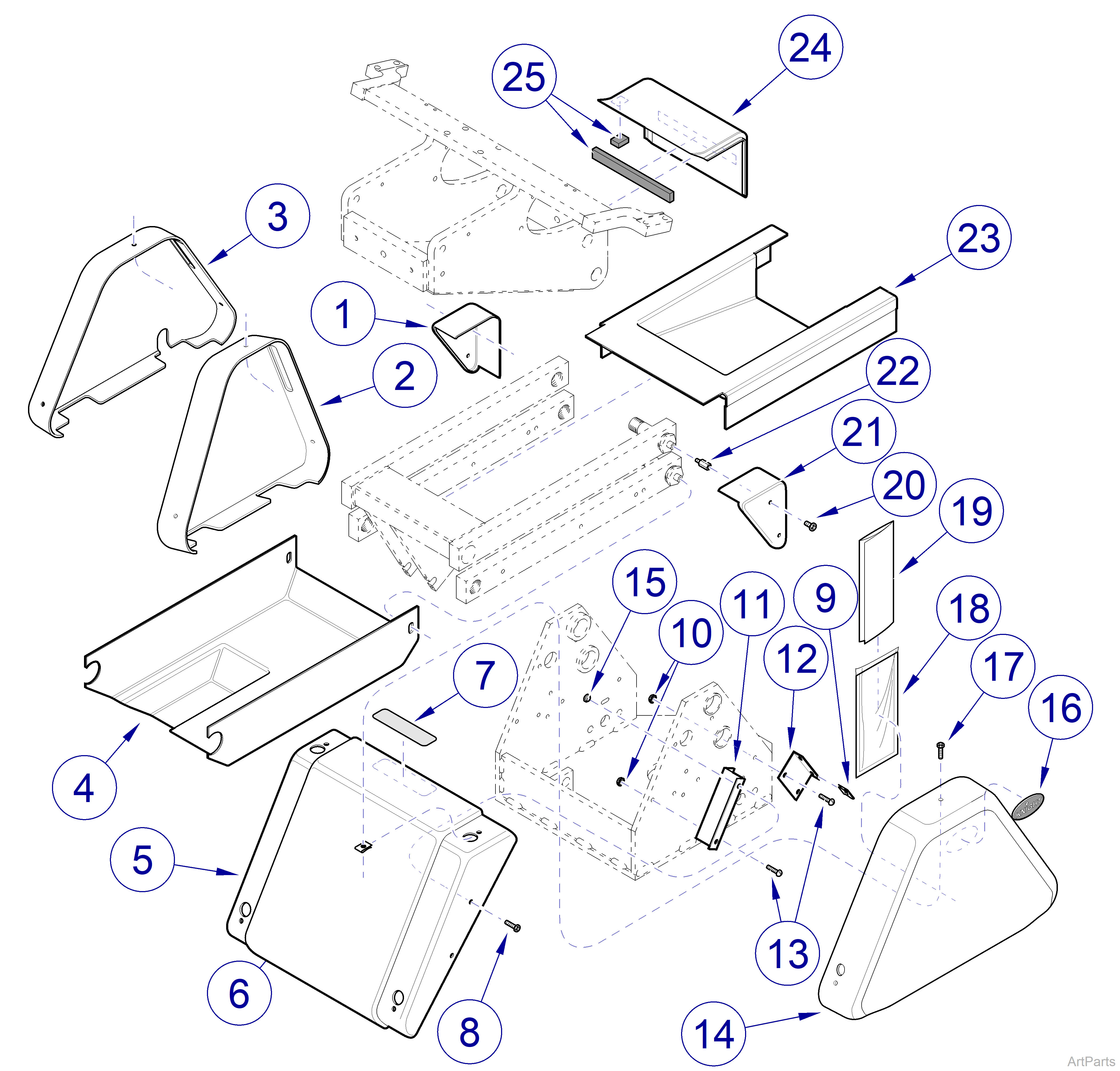

Serial Number Range: V160531 thru V456962
|
Model |
Biltmore/Knight Chairs |
| Serial Number | V160531 thru V456962 |
| Biltmore/Knight Chairs Covers | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
121904-01 | RH Platform Cover | 1 |
|
2 |
122069-01 | RH Base Cover | 1 |
|
3 |
121026-01 | Lower Arm Cover | 1 |
|
4 |
122623-01 | Center Base Cover - for Concept LR Classic | 1 |
|
5 |
121971 | Nut Clip | 4 |
| 6 | 561-0262-01 | Electrical Shock Label | 1 |
| 7 | 105480 | Screw | 4 |
| 8 | 121972 | Nut Clip | 2 |
| 9 | 122357 | Locknut | 2 |
| 10 | 121887-2 | Cover Mounting Bracket | 2 |
| 11 | 121963-2 | Cover Mounting Bracket | 2 |
| 12 | 040-0010-183 | Screw | 6 |
| 13 | LH Base Cover Options | ||
| 122075-01 | LH Base Cover 120 VAC, 2 hole | 1 | |
|
053-1584-00-216 |
LH Base Cover 240 VAC, 3 hole | NLA | |
| 14 | Fuse Replacement Label Options | ||
| 061-0808-05 | Fuse Replacement Label 120 VAC | 1 | |
| 061-0808-06 | Fuse Replacement Label 240 VAC | 1 | |
| 15 | 061-0803-00 | Name Plate | 2 |
| 16 | 121980-50 | Screw | 6 |
| 17 | S006-00895 | Plastic Sleeve | 1 |
| 18 | Wiring Diagram | 1 | |
| 19 | 121981-50 | Screw | 4 |
| 20 | 121905-01 | LH Platform Cover | 1 |
| 21 | 119610 | Standoff | 4 |
| 22 | 121027-01 | Upper Arm Cover | 1 |
| 23 | 121903-01 | Center Platform Cover - Includes Item 24 | 1 |
| 24 | 275479 | Foam Spacer Material | AR |
| 25 | 117977 | Self-Clinch Nut | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

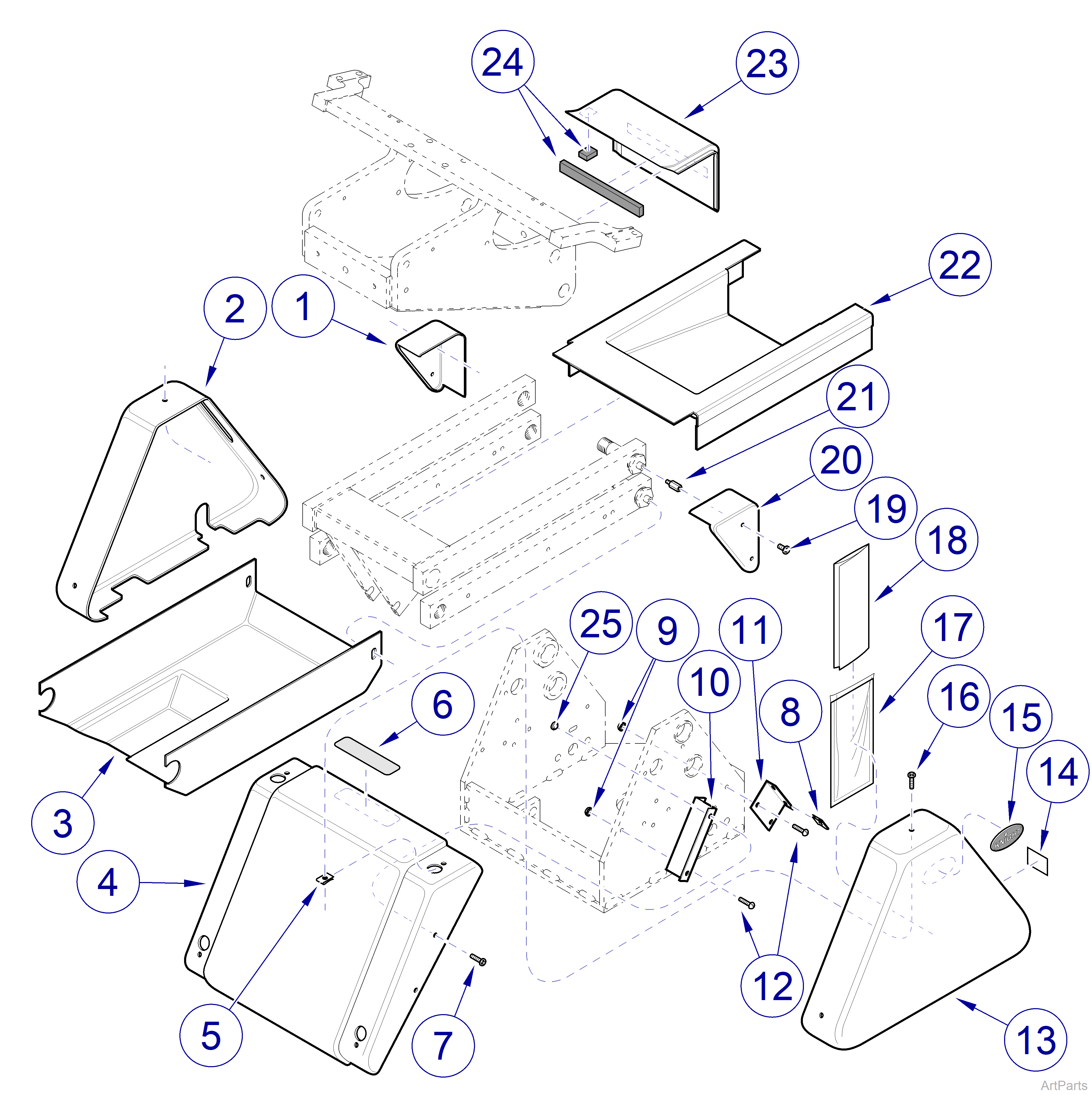

Serial Number Range: V456963 thru Present
|
Model |
Biltmore/Knight Chairs |
| Serial Number | V456963 thru Present |
| Biltmore/Knight Chairs Covers | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
121904-01 | RH Platform Cover | 1 |
|
2 |
Base Cover Options | ||
| 122069-01 | Non-Rotational Base Cover | 1 | |
| 121889-01 | Base Cover | 1 | |
|
3 |
121026-01 | Lower Arm Cover | 1 |
|
4 |
122623-01 | Center Base Cover -Concept LR Classic | 1 |
|
5 |
121971 | Nut Clip | 4 |
| 6 | 561-0262-01 | Electrical Shock Label | 1 |
| 7 | 105480 | Screw | 4 |
| 8 | 121972 | Nut Clip | 2 |
| 9 | 122357 | Locknut | 2 |
| 10 | 121887-2 | Cover Mounting Bracket | 2 |
| 11 | 121963-2 | Cover Mounting Bracket | 2 |
| 12 | 040-0010-183 | Screw | 6 |
| 13 | 053-1807-00-216 | Base Cover | 1 |
| 14 | 117977 | Self-Clinch Nut | 4 |
| 15 | 061-0803-00 | Name Plate | 2 |
| 16 | 121980-50 | Screw | 6 |
| 17 | S006-00895 | Plastic Sleeve | 1 |
| 18 | Wiring Diagram | 1 | |
| 19 | 121981-50 | Screw | 4 |
| 20 | 121905-01 | LH Platform Cover | 1 |
| 21 | 119610 | Standoff | 4 |
| 22 | 121027-01 | Upper Arm Cover | 1 |
| 23 | 121903-01 | Center Platform Cover - Includes Item 24 | 1 |
| 24 | 275479 | Foam Spacer Material | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
