Biltmore/Knight Chairs Upholstery Components

Vacuum Form Upholstery no longer available. Refer to Plush for available upholstery or components.

Model

 Biltmore/Knight Chairs
Serial Number All

Upholstery Components

Refer to: the Upholstery Color Options for the order number extension of your desired color.

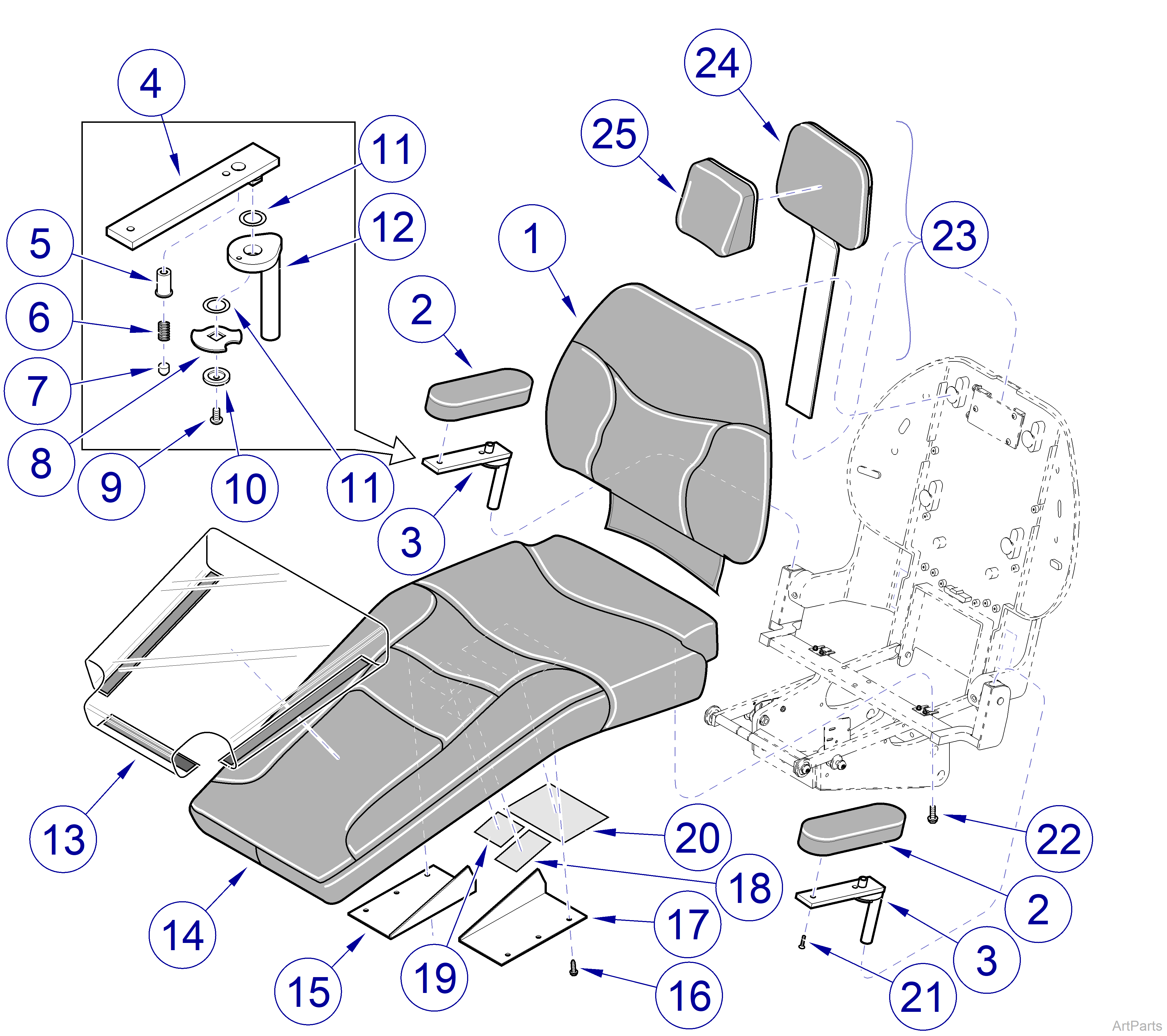

Biltmore/Knight Chairs Plush Upholstery Components
Item Part Number Description Qty

1

154094-xxx

 Back Rest Upholstery

NLA

2

153316-xxx

 Arm Rest Cushion

NLA

3

 Arm Rest Assembly Options - Includes Items 4 thru 12


152637-01

 RH Arm Rest Assembly

NLA



152638-01

 LH Arm Rest Assembly

NLA

4

 152675-50 Arm Rest Support - 1 per Arm Rest 2

5

 122006-2 Plunger Housing - 1 per Arm Rest 2

6

 121997 Spring - 1 per Arm Rest 2

7

 121996-3 Plunger - 1 per Arm Rest 2

8

 122007-50 Stop Plate - 1 per Arm Rest 2

9

 120950 Screw - 1 per Arm Rest 2

10

 121954-50 Retainer Disk - 2 per Arm Rest 2

11

 119034 Thrust Race - 1 per Arm Rest 4

12

152674-50

Support Hub - 1 per Arm Rest 2

13

 Foot Rest Cover Options


122943

Velcro- shown 1


148503

 Elastic NLA

14

154095-xxx

 Seat Rest Assembly - Includes Items 15 thru 20

NLA

15

121919-00

RH Roller Bracket 1

16

 121077 Screw 6

17

 121920-00 LH Roller Bracket 1

18

 061-0041-00 Law Label 1

19

300067

 CA Compliance Label

NLA

20

 300116 Caution Label 1

21

 118796 Screw 4

22

 120718 Screw 4

23

 154077-xxx Head Rest - Includes Items 24 And 25 1

24

154092-xxx

 Back Board NLA

25

154091-xxx

 Magnetic Pillow

NLA

26

121536-01

 Back Cover, Pebble - Not Shown NLA

27

 275184 Foam Tape Per Foot - Not Shown 2

28

154076-xxx

 Plush Upholstery Kit - Includes Items 1 thru 22

NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
