Biltmore/Knight Chairs Back Components

Model

 Biltmore/Knight Chairs
Serial Number All

Back Components

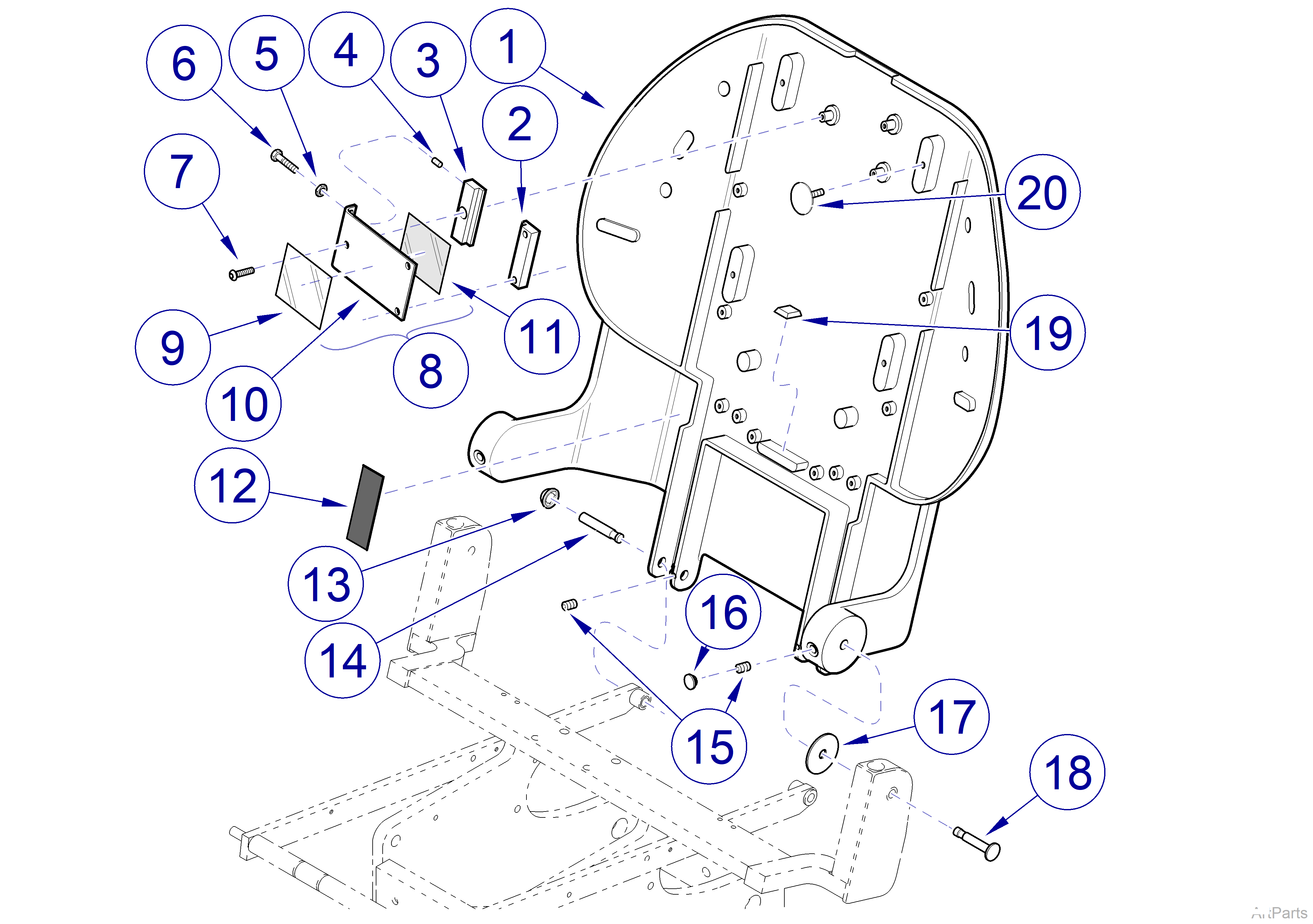

Biltmore/Knight Chairs Back Components
Item Part Number Description Qty

1

 Chair Back Options
  121966-00 With switch mounting holes - Biltmore Classic Only 1
  121881-00 Without switch mounting holes - Concept L/R Classic Only 1

2

 121943 Fixed Tang Guide 1

3

 120975 Floating Tang Guide 1

4

 120976 Tang Guide Compensator 2

5

 P1215 Nut 2

6

 108850 Screw 2

7

 040-0010-144 Screw 3

8

 152094-01 Tang Guide Plate Assembly - Includes Items 9 thru 11 1

9

121055

 Headrest Adjustment Label

10

 120955-50 Tang Guide Plate 1

11

 120981 Tang Bearing 1

12

 275505 Loop Fastener 2

13

 121967 Push Nut Cap 2

14

 121926-2 Pin 2

15

 120102 Set Screw 4

16

 053-1333-50 Hole Plug 2

17

 121944 Flat Washer 2

18

 121927-00 Hip Pin 2

19

 108965 Bumper - Used on earlier units 1

20

 122021 Elevator Bolt 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
