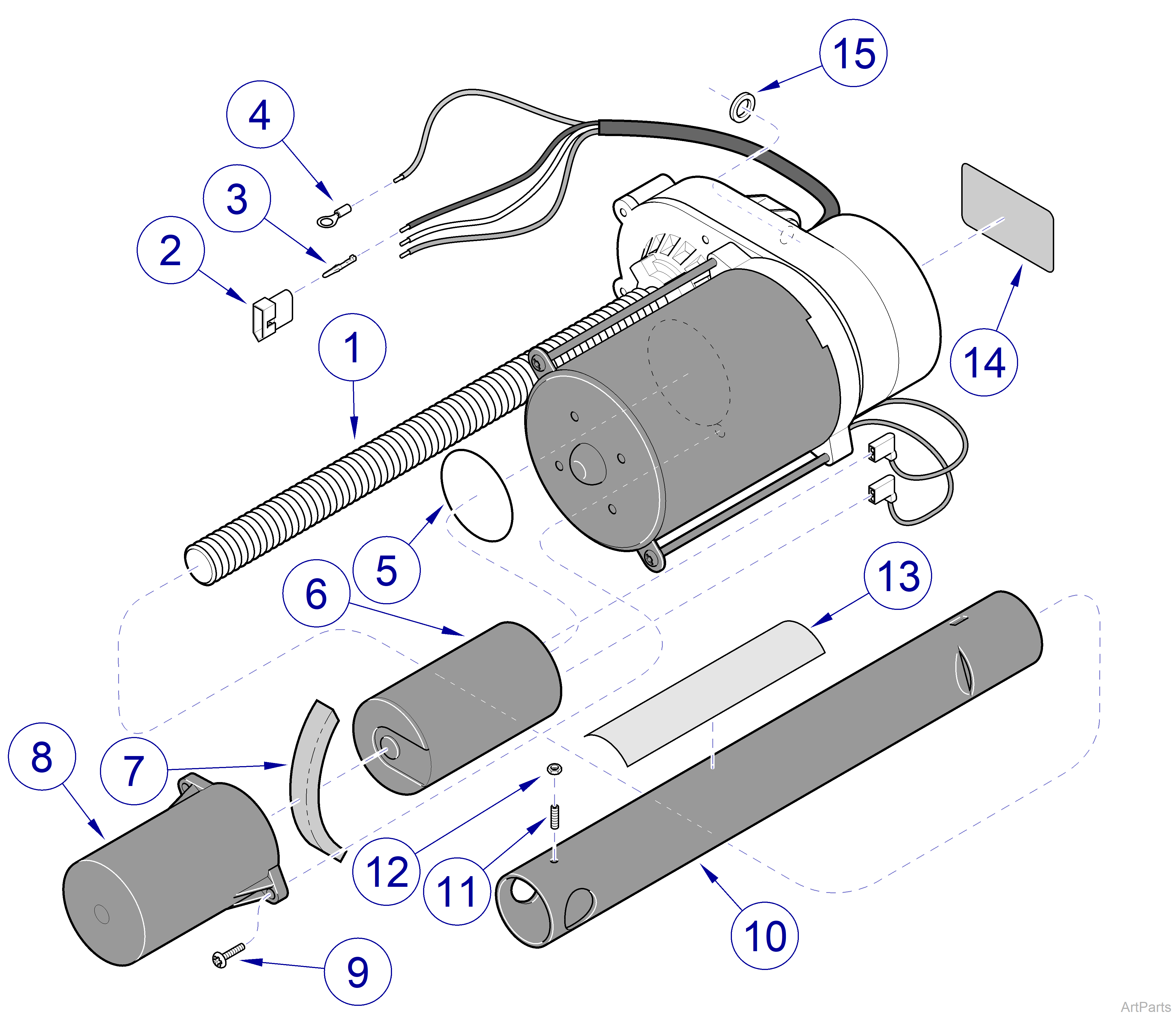

Biltmore/Knight Chairs Top Motor Assembly
Model |
Biltmore/Knight Chairs |
Serial Number | All |
Biltmore/Knight Chairs Top Motor Assembly | |||
---|---|---|---|
Item | Part Number | Description | Qty |
1 |
Top Motor Assembly Options - Includes Items 2 thru 15 | ||
151900 | 120-volt | 1 | |
151905 | 240-volt | 1 | |
2 |
101927 |
Connector |
NLA |
3 |
101928 |
Male Terminal | NSS |
4 |
P17087 |
Terminal #10 | NLA |
5 |
002-0733-00 | Insulator | 1 |
6 |
Capacitor Options | ||
002-0733-00 | 120-volt units | 1 | |
002-0734-00 | 240-volt units | 1 | |
7 |
Foam Spacer | 1 | |
8 |
053-1379-00 |
Capacitor Cover | NLA |
9 |
Screw | 2 | |
10 |
Translating Tube | 1 | |
11 |
120913 | Set Screw | 1 |
12 |
120997 | Nut | 1 |
13 |
120116 | Motor Shaft Warning Label | 1 |
14 |
TPW1600 | Motor Label | 1 |
15 |
122056 | Washer | 1 |
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
