Biltmore/Knight Chairs Base Components - Non-Rotational

Model

 Biltmore/Knight Chairs
Serial Number V1000 thru V87416

Non-Rotational Base Components

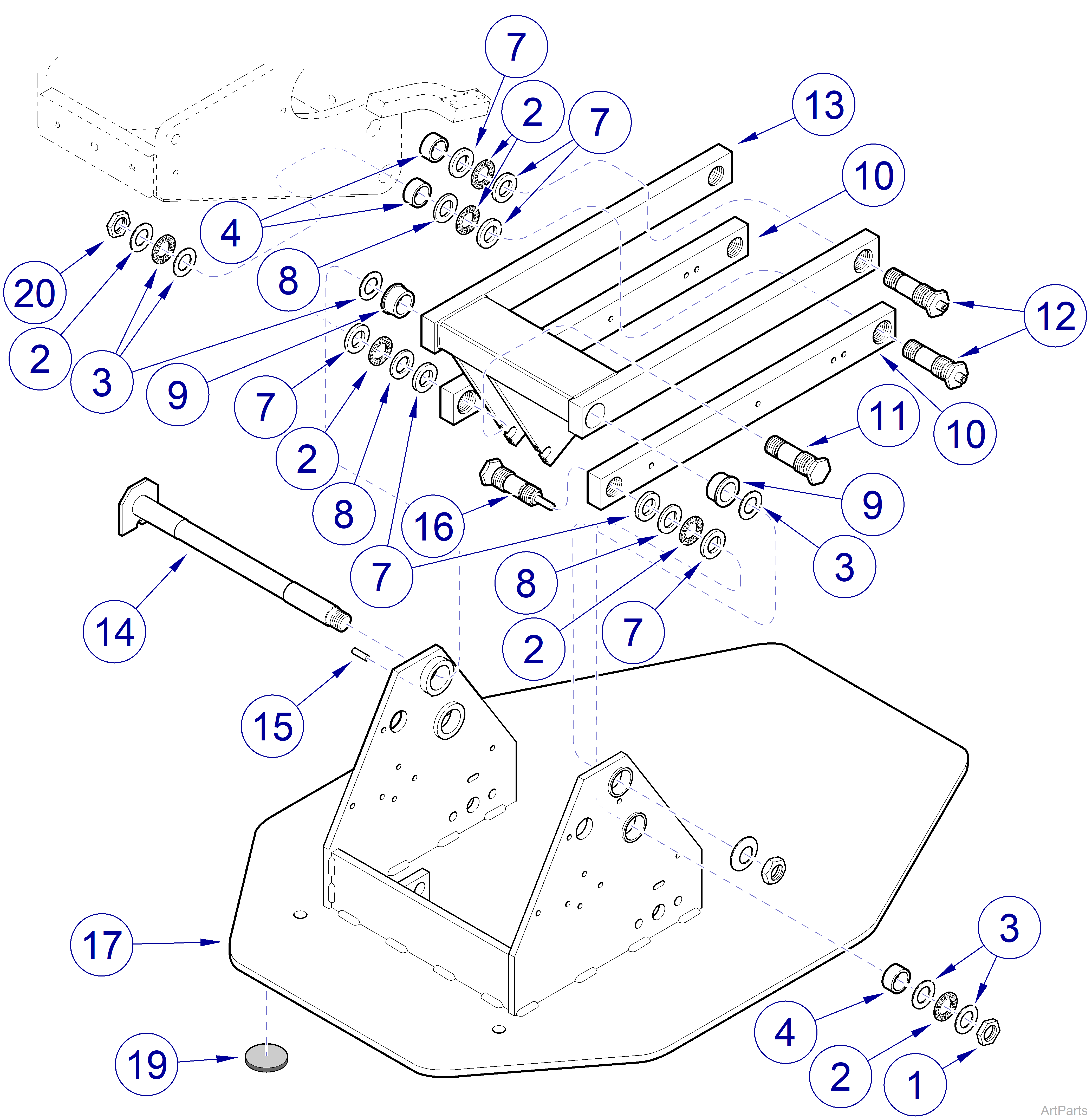

Biltmore/Knight Chairs Non-Rotational Base Components
Item Part Number Description Qty

1

 119031-2 Nut, Torque = 10 ft-lbs. (13.6 N-M) 2

2

 119033 Thrust Bearing 12

3

 119034 Thrust Race 1/32” - Ref Item 18 14

4

016-0131-23

Bearing 6

5

 041-0625-00 Nut 1

6

 111534 Spring Washer 1

7

119035

 Thrust Race 1/8” - Ref Item 18

NLA

8

 155287 Washer - Ref Item 18 4

9

 117086 Bearing 2

10

121521-00

 Parallel Arm

NLA

11

 120025-2 Pivot Screw, Torque = 75 ft-lbs. (101.7 N-M) 1

12

 120024-2 Pivot Screw, Torque = 75 ft-lbs. (101.7 N-M) 4

13

151159-50

 Lift Arm

NLA

14

 149296-2 Shaft Assembly 1

15

 117518 Groove Pin 1

16

 151336 Groove Pin Pivot Screw Assembly, Torque = 75 ft-lbs. (101.7 N-M) 1

17

153167-00

 Base Plate Weldment

NLA

18

152621

 Thrust Bearing Kit - Not Shown Includes Items 2, 3, 7 and 8 in quantities listed. Also Includes Magnalube and thread locking adhesive

NLA

19

 118286 Chair Base Pad 4

20

 041-0750-02 Nuts 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 Biltmore/Knight Chairs
Serial Number V87417 thru V128688

Non-Rotational Base Components

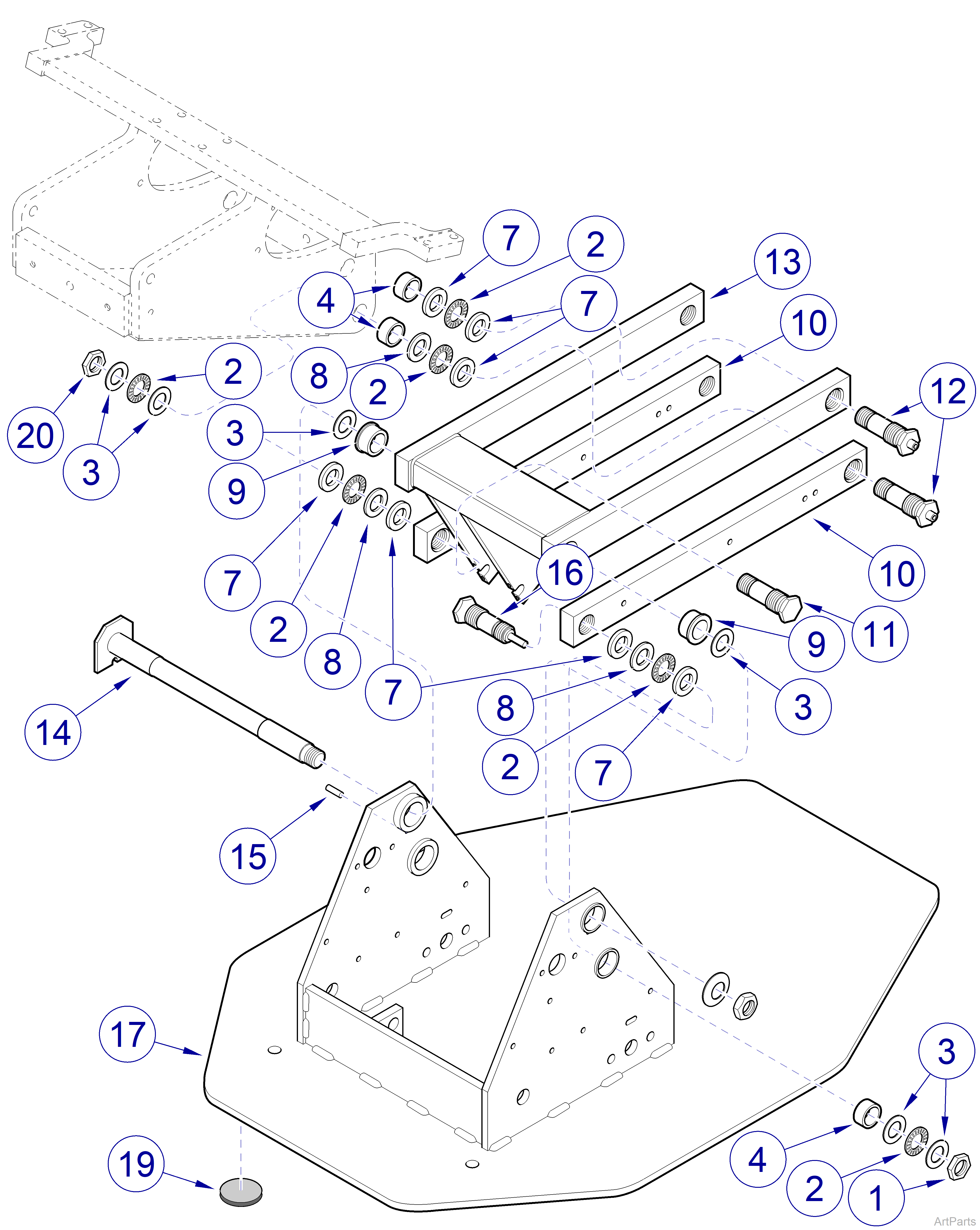

Biltmore/Knight Chairs Non-Rotational Base Components
Item Part Number Description Qty

1

 119031-2 Nut, Torque = 10 ft-lbs. (13.6 N-M) 2

2

 119033 Thrust Bearing Apply 185171 Magnalube - Ref Item 18 12

3

 119034 Thrust Race 1/32” - Ref Item 18 14

4

016-0131-23

Bearing 6

5

 041-0625-00 Nut 1

6

 111534 Spring Washer 1

7

119035

 Thrust Race 1/8” - Ref Item 18

NLA

8

 155287 Washer - Ref Item 18 4

9

 117086 Bearing 2

10

121521-00

 Parallel Arm

NLA

11

 120025-2 Pivot Screw, Torque = 75 ft-lbs. (101.7 N-M) 1

12

 120024-2 Pivot Screw, Torque = 75 ft-lbs. (101.7 N-M) 4

13

 151159-00 Lift Arm 1

14

 149296-2 Shaft Assembly 1

15

 117518 Groove Pin 1

16

 151336 Groove Pin Pivot Screw Assembly, Torque = 75 ft-lbs. (101.7 N-M) 1

17

153167-00

 Base Plate Weldment

NLA

18

152621

 Thrust Bearing Kit

NLA

19

 118286 Chair Base Pad 4

20

 041-0750-02 Nut 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 Biltmore/Knight Chairs
Serial Number V128689 thru Present

Non-Rotational Base Components

Biltmore/Knight Chairs Non-Rotational Base Components
Item Part Number Description Qty

1

 119031-2 Nut, Torque = 10 ft-lbs. (13.6 N-M) 2

2

 119033 Thrust Bearing Apply 185171 Magnalube - Ref Item 18 12

3

 119034 Thrust Race 1/32” - Ref Item 18 14

4

016-0131-23

Bearing 6

5

 041-0625-00 Nut 1

6

 111534 Spring Washer 1

7

119035

 Thrust Race 1/8” - Ref Item 18

NLA

8

 155287 Washer - Ref Item 18 4

9

 117086 Bearing 2

10

051-1081-00-216

 Parallel Arm

NLA

11

 120025-2 Pivot Screw, Torque = 75 ft-lbs. (101.7 N-M) 1

12

 120024-2 Pivot Screw, Torque = 75 ft-lbs. (101.7 N-M) 4

13

 151159-00 Lift Arm 1

14

 149296-2 Shaft Assembly 1

15

 117518 Groove Pin 1

16

 151336 Groove Pin Pivot Screw Assembly, Torque = 75 ft-lbs. (101.7 N-M) 1

17

030-1564-50

 Base Plate Weldment

NLA

18

152621

 Thrust Bearing Kit - Not Shown Includes Items 2, 3, 7 and 8 in quantities listed. Also Includes Magnalube and thread locking adhesive

NLA

19

 118286 Chair Base Pad 4

20

 041-0750-02 Nut 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
