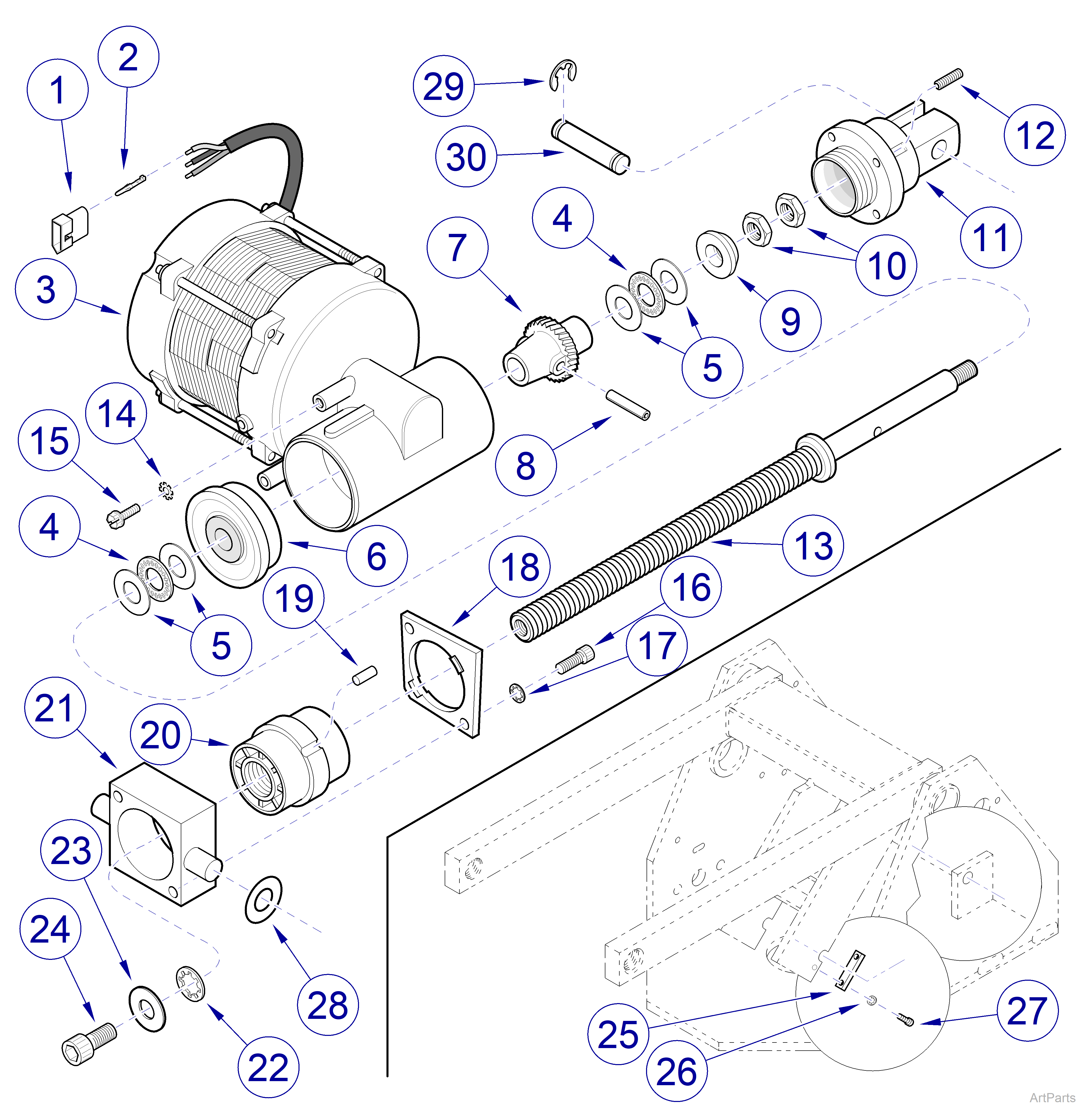

Biltmore/Knight Chairs Base Motor Assembly
Model |
Biltmore/Knight Chairs |
Serial Number | All |
Biltmore/Knight Chairs Base Motor Assembly | |||
---|---|---|---|
Item | Part Number | Description | Qty |
1 |
101927 |
Connector |
NLA |
2 |
101928 |
Male Terminal | NSS |
3 |
Base Motor Options - Includes Items 4 thru 15 | ||
121756 | 120-volt | 1 | |
121757 | 240-volt | 1 | |
4 |
Thrust Bearing | 2 | |
5 |
Bearing Race | 4 | |
6 |
Bearing | 1 | |
7 |
118624 |
Worm Wheel - Ref Item 31 | NLA |
8 |
118625 |
Roll Pin -Ref Item 31 | NLA |
9 |
Retaining Ring | 1 | |
10 |
Nut | 2 | |
11 |
Clevis | 1 | |
12 |
Set Screw | 2 | |
13 |
Screw Shaft | 1 | |
14 |
Lockwasher | 1 | |
15 |
Screw | 1 | |
16 |
108041 | Screw | 2 |
17 |
C2563 | Lock Washer | 2 |
18 |
117159-2 | Trunnion Plate | 1 |
19 |
122060 | Pin - See Item 32 | 1 |
20 |
116912 | Drive Nut | 1 |
21 |
121524-2 | Trunnion - Ref Item 32 | 1 |
22 |
C3454 | Lock Washer | 1 |
23 |
P50096 | Washer | 1 |
24 |
117195 | Screw | 1 |
25 |
120557-2 | Trunnion Retainer Plate | 2 |
26 |
C2563 | Lock Washer | 4 |
27 |
040-0250-85 | Screw | 4 |
28 |
121510 | Washer | 2 |
29 |
042-0007-00 | Retaining Ring | 2 |
30 |
117149-2 | Bottom Motor Pin | 1 |
31 |
150459 |
Worm Wheel Kit, Not Shown - Includes Items 7 and 8 | NLA |
32 |
152708 | Trunnion Kit, Not Shown - Includes Items 17 and 19 | 1 |
33 |
Base Motor Assembly Options - Includes Items 1 thru 24 | ||
152402 | 120 VAC | 1 | |
152534 | 240 VAC | 1 | |
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
