Biltmore/Knight Chairs Footswitch
|
Model |
Biltmore/Knight Chairs |
| Serial Number | All |

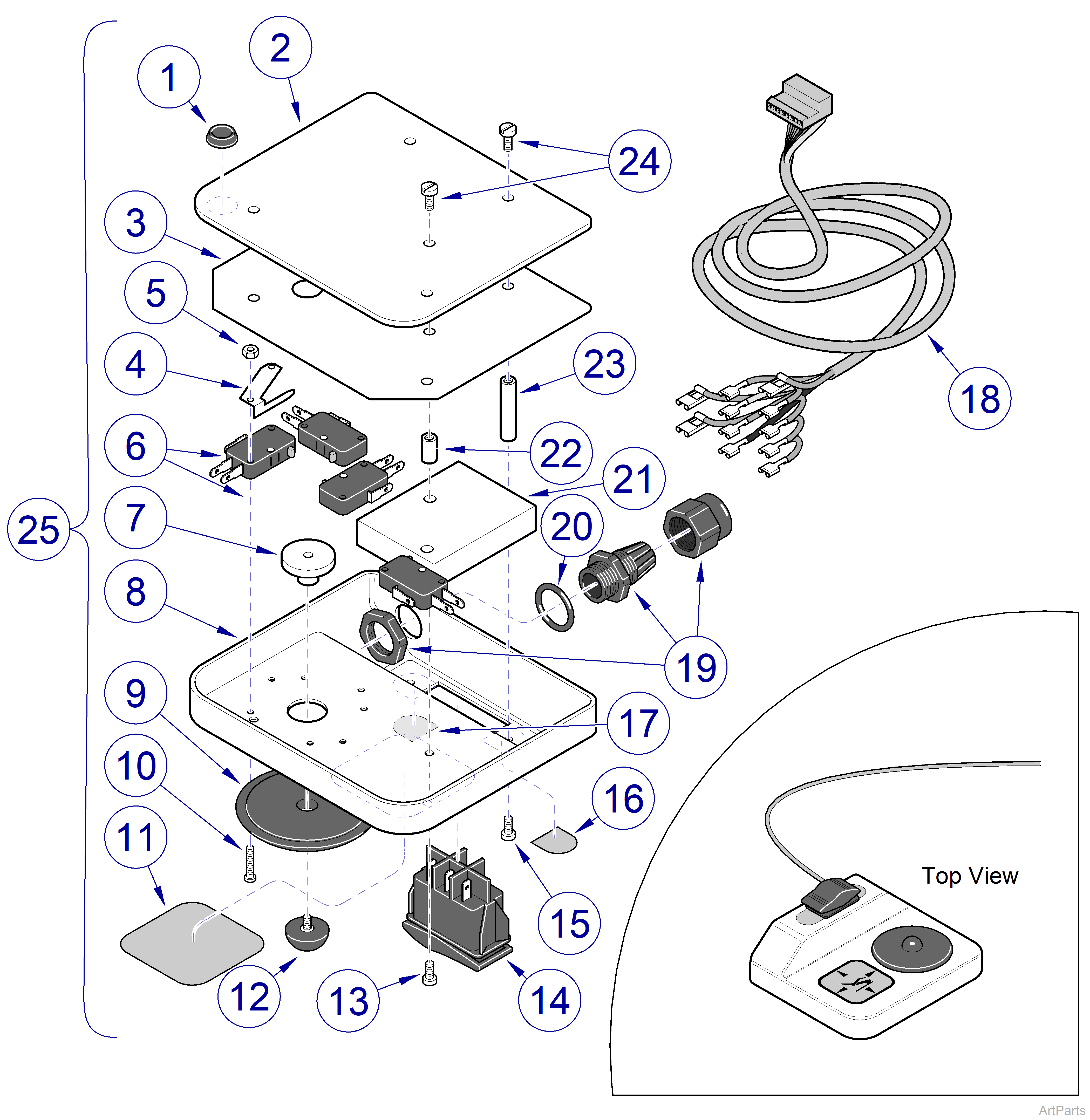

| Biltmore/Knight Chairs Footswitch | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
119891 | Foot | 4 |
|
2 |
120832-50 | Base Plate | 1 |
|
3 |
121300 | Insulation | 1 |
|
4 |
050-6044-00 | Actuator | 1 |
|
5 |
041-0004-00 | Nut | 8 |
|
6 |
146978 | Micro Switch | 4 |
|
7 |
121383-2 | Activator | 1 |
|
8 |
121998-01 | Footswitch Housing | 1 |
|
9 |
121382 | Control Pad | 1 |
|
10 |
113502 | Stud | 8 |
|
11 |
061-0806-00 | Operating Label | 1 |
|
12 |
120837 | Bumper | 1 |
|
13 |
120861 | Stud | 3 |
|
14 |
120839 | Rocker Switch | 1 |
|
15 |
120898 | Stud | 2 |
|
16 |
120848 | Green Label | 1 |
|
17 |
122071 | Yellow Label | 1 |
|
18 |
015-1530-00 | Cable Assembly - Includes Items 20 and 21, Used on Early Units Only | 1 |
|
19 |
120653 | Strain Relief Clamp | 1 |
|
20 |
P12349 | O-Ring - Used on Early Units Only | 1 |
|
21 |
120858-50 | Counter Weight | 1 |
|
22 |
120859 | Short Standoff | 1 |
|
23 |
120860 | Long Standoff | 2 |
|
24 |
040-0006-98 | Screw | 5 |
|
25 |
002-1859-00 | Footswitch Assembly - Includes Items 1 thru 24 | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
