Biltmore/Knight Chairs Umbilicals
|
Model |
Concept L/R Classic |
| Serial Number | All |

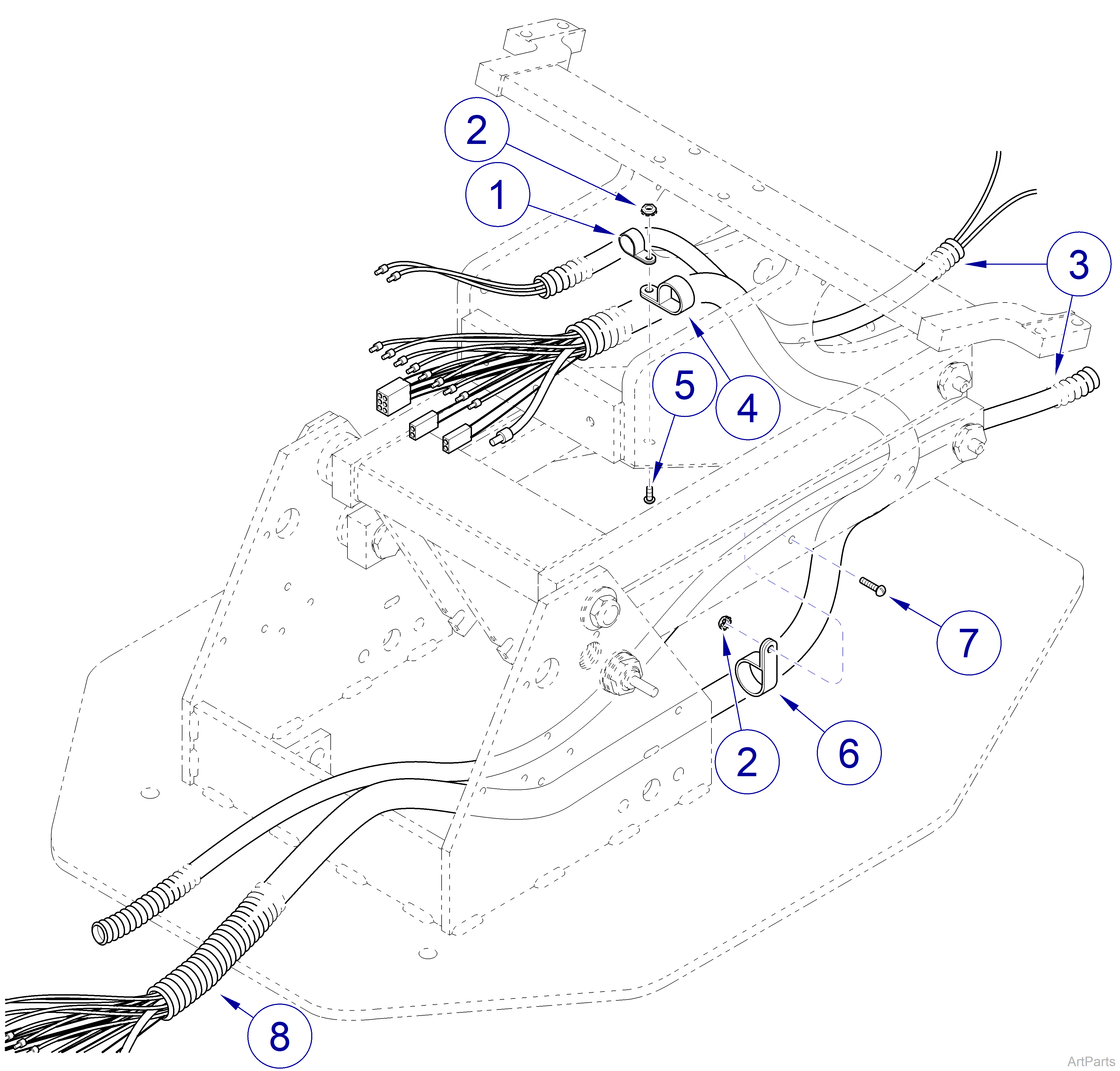

| Biltmore/Knight Chairs Umbilicals | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
122559 | Cable Clamp | 2 |
|
2 |
122357 | Lock Nut | 5 |
|
3 |
S059-00125 | Vacuum Tubing | AR |
|
4 |
122582 | Cable Clamp | 2 |
|
5 |
040-0010-183 | Screw | 2 |
|
6 |
122583 | Cable Clamp | 3 |
|
7 |
117601 | Screw | 3 |
|
8 |
153142-01 | Internal Umbilical | 1 |
|
9 |
102308 | Cable Tie - Not Shown | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
