Biltmore/Knight Chairs Articulating Headrest - Double
|
Model |
Biltmore/Knight Chairs |
| Serial Number | 154087 |
Refer to: the Upholstery Color Options for the order number extension of your desired color.

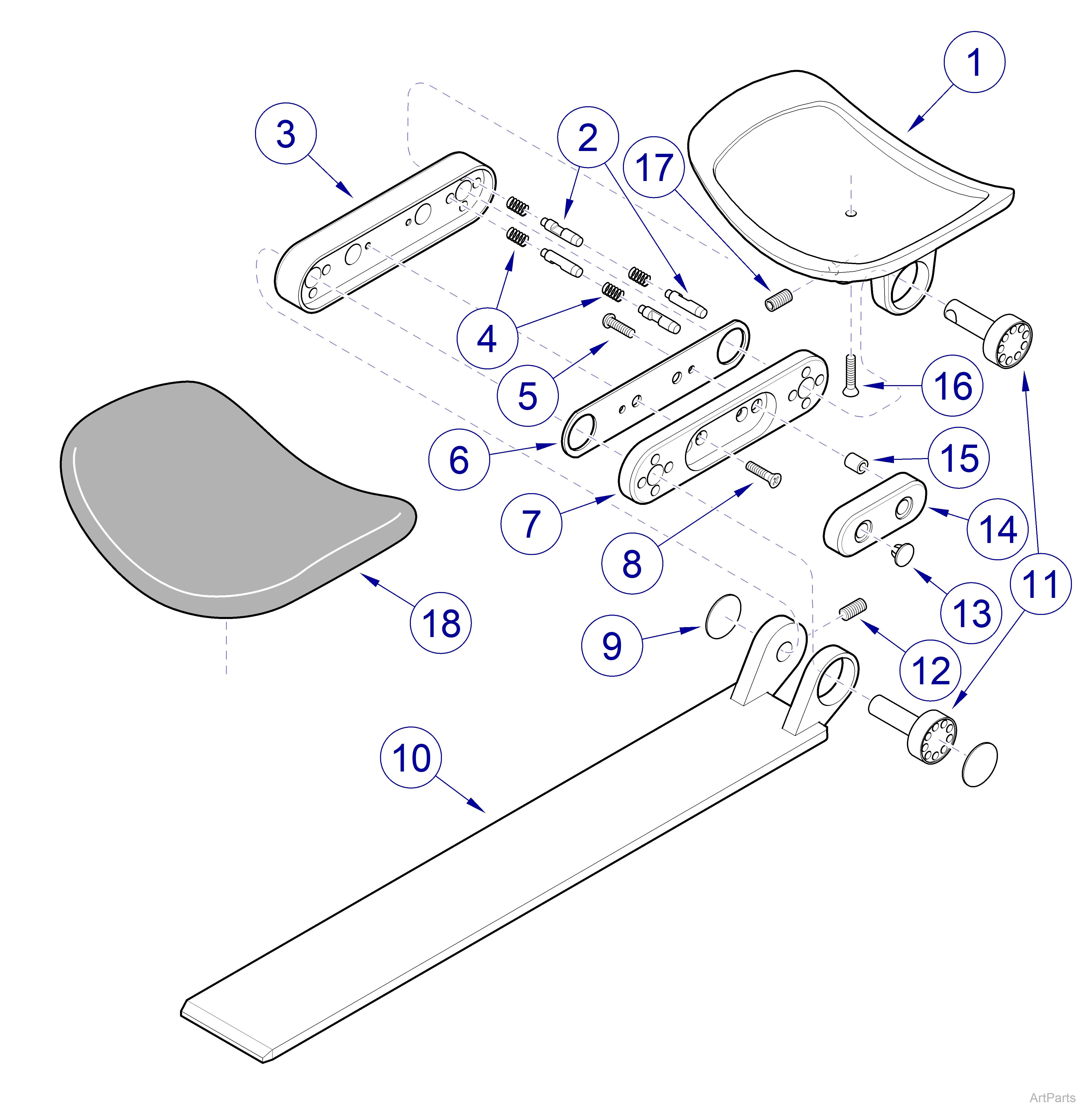

| Biltmore/Knight Chairs Double Articulating Headrest | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
121911-00 | Headrest Housing | 1 |
|
2 |
121918-3 | Stop Pin | 8 |
|
3 |
121913-50 | Spring Housing | 1 |
|
4 |
103314 | Spring | 8 |
|
5 |
122784 |
Screw | NLA |
|
6 |
121917-2 | Release Plate | 1 |
|
7 |
121912-50 | Pin Housing | 1 |
|
8 |
122096 | Screw | 2 |
|
9 |
121945 | Decorative Disc | 4 |
|
10 |
152905-50 | Tang Assembly | 1 |
|
11 |
122772-3 |
Pivot Pin |
NLA |
|
12 |
122778 |
Set Screw | NLA |
|
13 |
053-1333-50 | Plug | 2 |
|
14 |
121915-50 | Button | 1 |
|
15 |
122065-2 | Spacer | 2 |
|
16 |
122089-50 | Screw | 1 |
|
17 |
121488 | Set Screw | 1 |
|
18 |
Upholstery Options | ||
|
154079-xxx |
Vacuum Form |
NLA |
|
| 154080-xxx | Plush | 1 | |
|
19 |
154087-xxx |
Double Articulating Headrest - Includes items 1 thru 18 | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
