Biltmore/Knight Chairs Articulating Headrest - Single
|
Model |
Biltmore/Knight Chairs |
| Serial Number |
154078 |
Refer to: the Upholstery Color Options for the order number extension of your desired color.

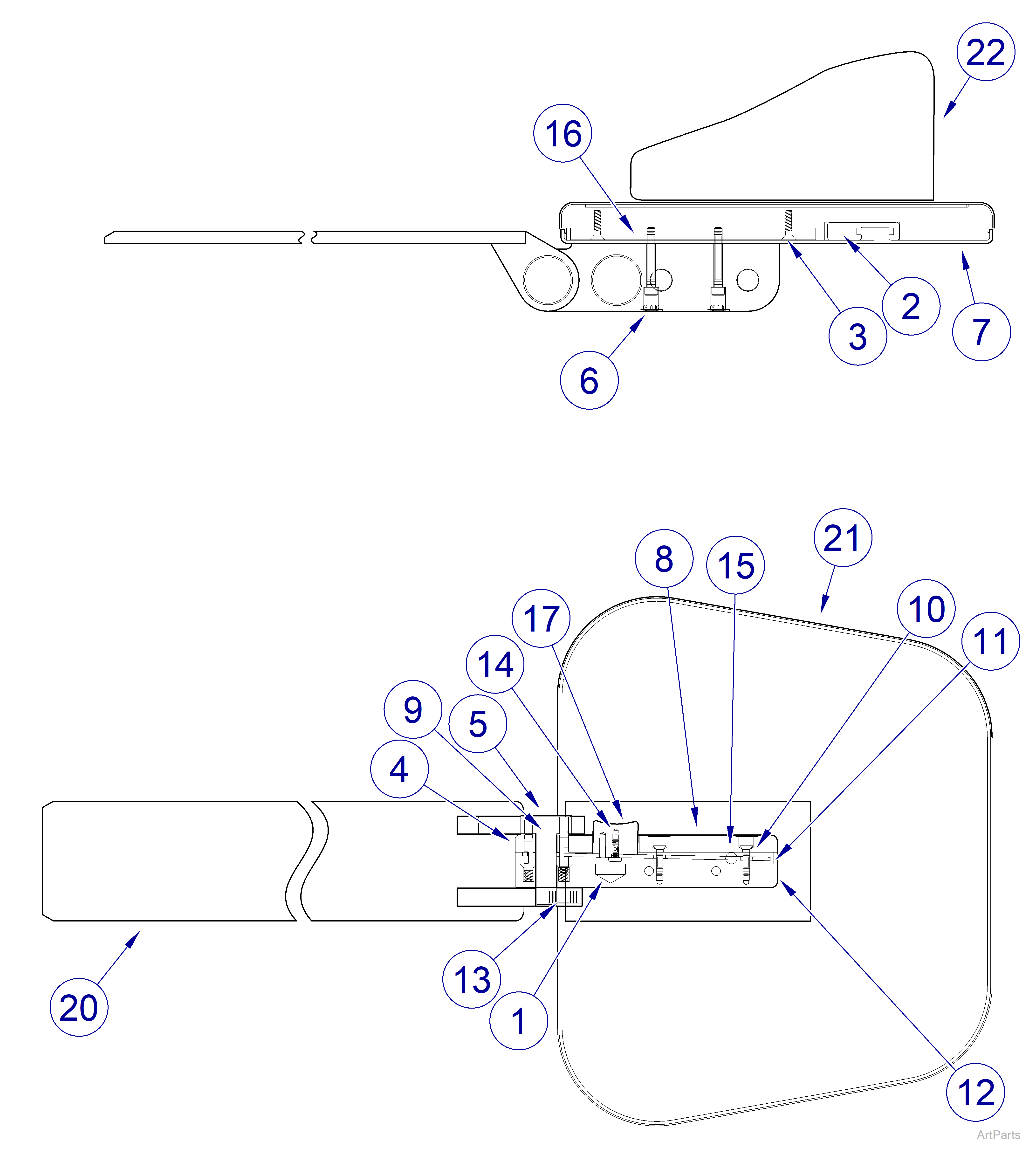

| Biltmore/Knight Chairs Single Articulating Headrest | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
103314 | Spring | 4 |
|
2 |
121493-50 |
Headrest Receptacle | NSS |
|
3 |
121784 |
Screw | NSS |
|
4 |
121918-3 | Stop Pin | 4 |
|
5 |
121945 | Decorative Disc | 2 |
|
6 |
053-1333-50 | Plug | 4 |
|
7 |
122677-01 |
Back Cover | NLA |
|
8 |
122757-50 |
Pin Housing | NLA |
|
9 |
122772-3 |
Pivot Pin |
NLA |
|
10 |
122096 |
Screw |
NLA |
|
11 |
122776-2 |
Release Plate |
NLA |
|
12 |
122777-50 |
Spring Housing |
NLA |
|
13 |
122778 |
Screw - Apply Item 23 |
NLA |
|
14 |
122784 |
Screw | NLA |
|
15 |
122775 |
Release Plate Rocker |
NLA |
|
16 |
122805-50 |
Mounting Plate |
NLA |
|
17 |
153258-50 |
Push Button Assembly |
NLA |
|
18 |
185171 | Lubricant | AR |
|
19 |
275184 | Foam Tape | AR |
|
20 |
153249-50 |
Tang Weldment |
NLA |
|
21 |
Headrest Board Options | ||
|
154090-xxx |
Vacuum Form | NLA | |
|
154092-xxx |
Plush | NLA | |
|
22 |
Magnetic Cushion Options | ||
|
154089-xxx |
Vacuum Form | NLA | |
|
154091-xxx |
Plush |
NLA |
|
|
23 |
Threadlock Adhesive | 1 | |
|
24 |
154078-xxx |
Single Articulating Headrest - Includes items 1 thru 22 |
NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
