Biltmore/Knight Chairs L/R Light Bracket Components
|
Model |
Biltmore/Knight Chairs |
| Serial Number | Non-Rotational Units Only |
Refer to: the Upholstery Color Options for the order number extension of your desired color.

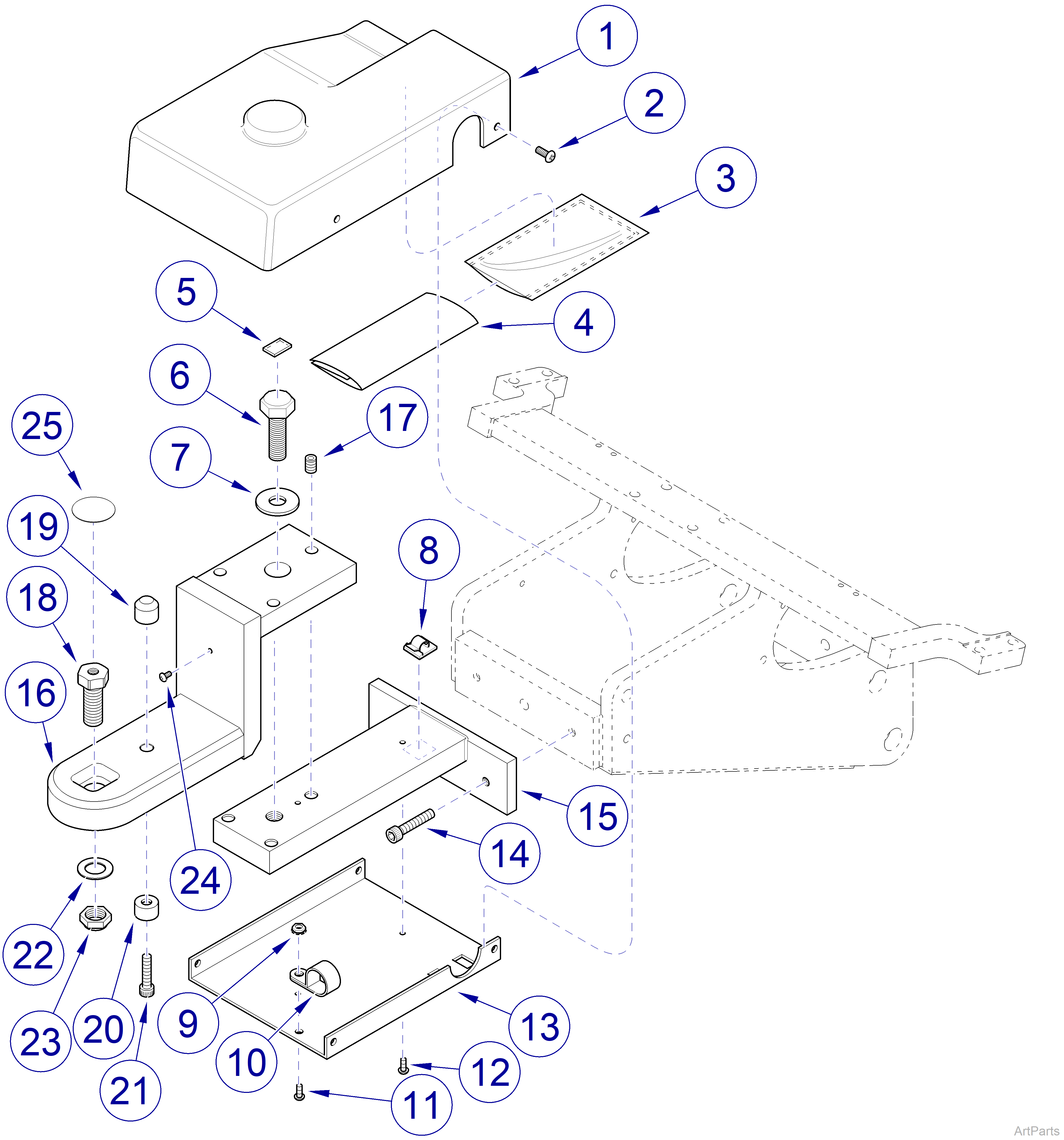

| Biltmore/Knight Chairs L/R Light Bracket Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
122638-01 | Bracket Cover | 1 |
|
2 |
121981-50 | Screw | 4 |
|
3 |
S006-00895 | Envelope | 1 |
|
4 |
Flow Diagram | 1 | |
|
5 |
275184 | Foam Tape - per foot | 1 |
|
6 |
122552 | Screw | 1 |
|
7 |
122554 | Washer | 1 |
|
8 |
109191 | Cord Clip | 1 |
|
9 |
122357 | Nut | 1 |
|
10 |
122636 | Cable Clamp | 1 |
|
11 |
105480 | Screw | 2 |
|
12 |
121127 |
Screw | NLA |
|
13 |
122539-50 | Wire Harness Plate | 1 |
|
14 |
115300 | Screw | 2 |
|
15 |
153054-50 | Mounting Bracket | 1 |
|
16 |
030-1465-50 | Lower Arm Mounting Bracket | 1 |
|
17 |
122547 | Set Screw | 3 |
|
18 |
042-0206-00 | Screw | 1 |
|
19 |
122550 | Light Arm Stop Bumper | 1 |
|
20 |
122549 | Unit Arm Stop Bumper | 1 |
|
21 |
107995 | Screw | 1 |
|
22 |
122554 | Washer | 1 |
|
23 |
122553 | Nut | 1 |
|
24 |
040-0010-109 | Screw | 1 |
|
25 |
061-0819-00 | Extension Bolt Cover | 1 |
|
26 |
121877 | Cable Clamp - not shown | 1 |
|
27 |
029-3002-00 | L/R Arm Adapter for Non Rotational Only - Includes items 1 thru 26 | 1 |
|
