Biltmore/Knight Chairs Base Components - Rotational

Model

 Biltmore/Knight Chairs
Serial Number V1000 thru V87416

Ratational Base Components

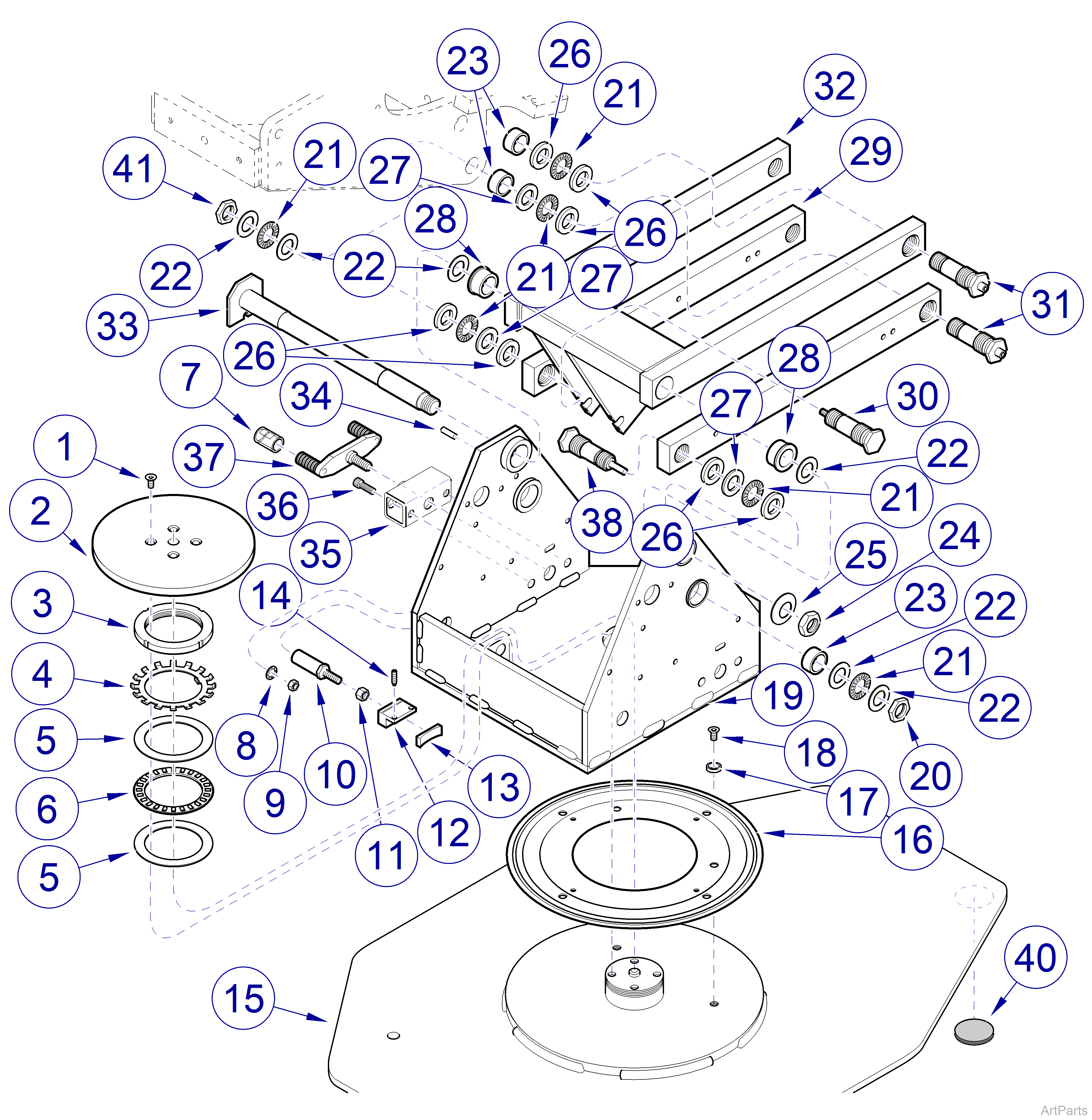

 Biltmore/Knight Chairs Base Components - Rotational
Item Part Number Description Qty

1

157122

 Screw NSS

2

119896

Brake Disk 1

3

 052-0592-00 Locknut with Hole 1

4

 119296 Bearing Lock Washer 1

5

 119295 Bearing Race 2

6

 119297 Thrust Bearing 1

7

 122627 Sleeve 2

8

 C4507 Lock Washer 2

9

 C1269 Nut 2

10

 119882-2 Rotation Lock Stud 1

11

 119513 Nut 1

12

151446

Rotation Block Assembly - Includes Item 13

1

13

   Brake Lining NSS

14

 121148 Set Screw 2

15

152642-00

 Baseplate

NLA

16

 117150 Lazy Susan Bearing 1

17

 119427-2 Rotation Stop 2

18

 119319 Screw 2

19

151168-00

 Upright Housing Assembly

NLA

20

 119031-2 Nut, Torque = 10 ft-lbs (13.6 N-M) 2

21

 119033 Thrust Bearing - Apply Item 42 (See Item 39) 12

22

 119034 Thrust Race 1/32” (See Item 39) 14

23

016-0131-23

Bearing 6

24

 041-0625-00 Nut 1

25

 111534 Spring Washer 1

26

119035

 Thrust Race 1/8” (See Item 39)

NLA

27

 155287 Washer (See Item 39) 4

28

 117086 Bearing 2

29

121521-00

 Parallel Arm

NLA

30

 151326 Cam Stud Pivot Screw Assembly, Torque = 75 ft-lbs (101.7 N-M) 1

31

 120024-2 Pivot Screw, Torque = 75 ft-lbs (101.7 N-M) 4

32

151159-00

 Lift Arm

NLA

33

 149296-2 Shaft Assembly 1

34

 117518 Groove Pin 1

35

 030-1808-00-216 Bracket Assembly 1

36

 C5253 Screw 2

37

 151447-00 Lever Assembly - Apply item 42 to Threads 1

38

 151336 Groove Pin Pivot Screw Assembly, Torque = 75 ft-lbs (101.7 N-M) 1

39

152621

 Thrust Bearing Kit - Not Shown - Includes Items 21, 22, 26 and 27 in quantities listed. Also Includes Magnalube and thread locking adhesive

NLA

40

 118286 Chair Base Pad 4

41

 041-0750-02 Nut 4

42

 185171 Magnalube AR

43

 042-0024-03

Thread locking adhesive

 AR

Model

 Biltmore/Knight Chairs
Serial Number V87417 thru V128688

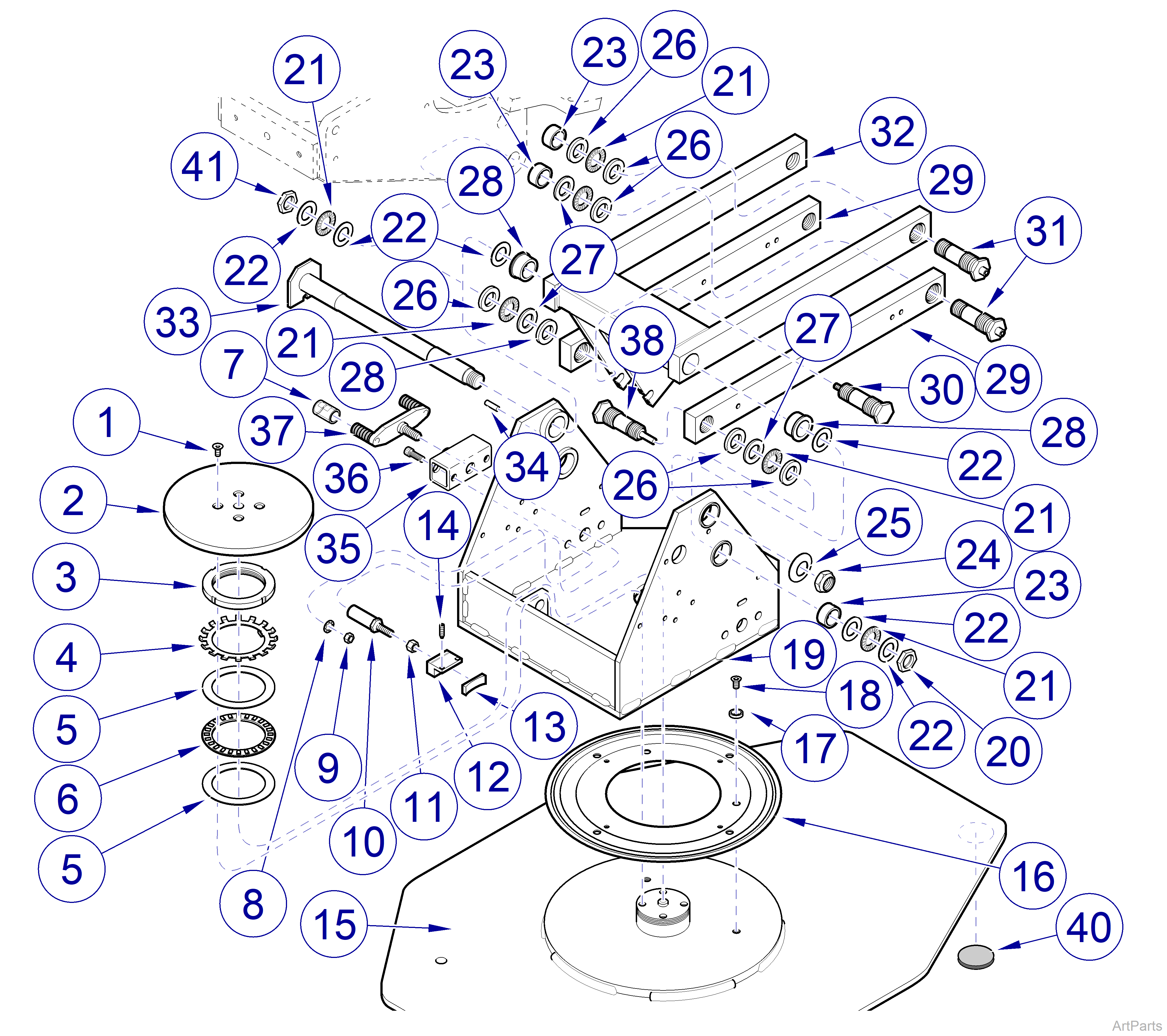

Rotational Base Components - 1

 Biltmore/Knight Chairs Base Components - Rotational
Item Part Number Description Qty

1

157122

 Screw NSS

2

119896

Brake Disk 1

3

 052-0592-00 Locknut with Hole 1

4

 119296 Bearing Lock Washer 1

5

 119295 Bearing Race 2

6

 119297 Thrust Bearing 1

7

 122627 Sleeve 2

8

 C4507 Lock Washer 2

9

 C1269 Nut 2

10

 119882-2 Rotation Lock Stud 1

11

 119513 Nut 1

12

151446

Rotation Block Assembly - Includes Item 13

1

13

   Brake Lining NSS

14

 121148 Set Screw 2

15

152642-00

 Baseplate

NLA

16

 117150 Lazy Susan Bearing 1

17

 119427-2 Rotation Stop 2

18

 119319 Screw 2

19

 030-1563-50 Upright Housing Assembly 1

20

 119031-2 Nut, Torque = 10 ft-lbs (13.6 N-M) 2

21

 119033 Thrust Bearing - Apply Item 42 (See Item 39) 12

22

 119034 Thrust Race 1/32” (See Item 39) 14

23

016-0131-23

Bearing 6

24

 041-0625-00 Nut 1

25

 111534 Spring Washer 1

26

119035

 Thrust Race 1/8” (See Item 39)

NLA

27

 155287 Washer (See Item 39) 4

28

 117086 Bearing 2

29

121521-00

 Parallel Arm

NLA

30

 151326 Cam Stud Pivot Screw Assembly, Torque = 75 ft-lbs (101.7 N-M) 1

31

 120024-2 Pivot Screw, Torque = 75 ft-lbs (101.7 N-M) 4

32

151159-00

 Lift Arm

NLA

33

 149296-2 Shaft Assembly 1

34

 117518 Groove Pin 1

35

 030-1808-00-216 Bracket Assembly 1

36

 C5253 Screw 2

37

 151447-00 Lever Assembly - Apply item 42 to Threads 1

38

 151336 Groove Pin Pivot Screw Assembly, Torque = 75 ft-lbs (101.7 N-M) 1

39

152621

 Thrust Bearing Kit - Not Shown - Includes Items 21, 22, 26 and 27 in quantities listed. Also Includes Magnalube and thread locking adhesive

NLA

40

 118286 Chair Base Pad 4

41

 041-0750-02 Nut 4

42

 185171 Magnalube AR

43

 042-0024-03

Thread locking adhesive

 AR

Model

 Biltmore/Knight Chairs
Serial Number V128689 thru Present

Rotational Base Conmponents - 2

 Biltmore/Knight Chairs Base Components - Rotational
Item Part Number Description Qty

1

157122

 Screw NSS

2

119896

Brake Disk 1

3

 052-0592-00 Locknut with Hole 1

4

 119296 Bearing Lock Washer 1

5

 119295 Bearing Race 2

6

 119297 Thrust Bearing 1

7

 122627 Sleeve 2

8

 C4507 Lock Washer 2

9

 C1269 Nut 2

10

 119882-2 Rotation Lock Stud 1

11

 119513 Nut 1

12

151446

Rotation Block Assembly - Includes Item 13

1

13

   Brake Lining NSS

14

 121148 Set Screw 2

15

152642-00

 Baseplate

NLA

16

 117150 Lazy Susan Bearing 1

17

 119427-2 Rotation Stop 2

18

 119319 Screw 2

19

 122643-01 Upright Housing Assembly 1

20

 119031-2 Nut, Torque = 10 ft-lbs (13.6 N-M) 2

21

 119033 Thrust Bearing - Apply Item 42 (See Item 39) 12

22

 119034 Thrust Race 1/32” (See Item 39) 14

23

016-0131-23

Bearing 6

24

 041-0625-00 Nut 1

25

 111534 Spring Washer 1

26

119035

 Thrust Race 1/8” (See Item 39)

NLA

27

 155287 Washer (See Item 39) 4

28

 117086 Bearing 2

29

051-1081-00-216

 Parallel Arm

NLA

30

 151326 Cam Stud Pivot Screw Assembly, Torque = 75 ft-lbs (101.7 N-M) 1

31

 120024-2 Pivot Screw, Torque = 75 ft-lbs (101.7 N-M) 4

32

151159-00

 Lift Arm

NLA

33

 149296-2 Shaft Assembly 1

34

 117518 Groove Pin 1

35

 030-1808-00-216 Bracket Assembly 1

36

 C5253 Screw 2

37

 151447-00 Lever Assembly - Apply item 42 to Threads 1

38

 151336 Groove Pin Pivot Screw Assembly, Torque = 75 ft-lbs (101.7 N-M) 1

39

152621

 Thrust Bearing Kit - Not Shown - Includes Items 21, 22, 26 and 27 in quantities listed. Also Includes Magnalube and thread locking adhesive

NLA

40

 118286 Chair Base Pad 4

41

 041-0750-02 Nut 4

42

 185171 Magnalube AR

43

 042-0024-03

Thread locking adhesive

 AR
