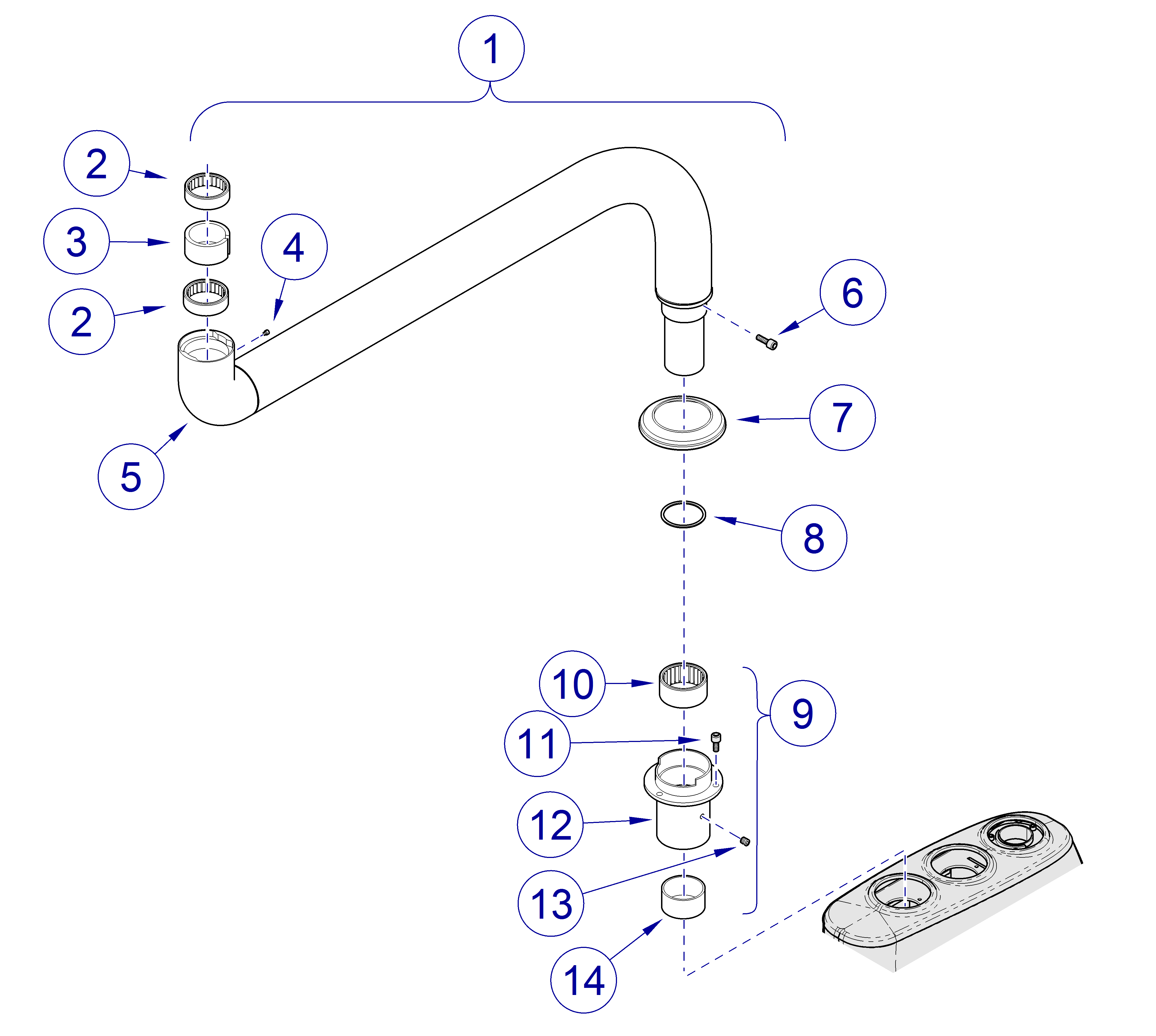

Elevance® Console Mtd. Delivery Unit Arm / Bearings
|
Mounted To |
Elevance® Dental Chair |
| Serial Number | All |
| Elevance® Console Mtd. Delivery Unit Arm / Bearings | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4098-00 | Console Unit Arm Assembly - includes items 2 - 9 | 1 |
|
2 |
016-0856-03 | Needle Bearing | 2 |
|
3 |
016-1125-00 | Slotted Sleeve Bearing | 1 |
|
4 |
040-0250-155 | Set Screw | 1 |
|
5 |
030-1726-00-216 | Unit Arm Assembly | 1 |
|
6 |
040-0250-07 | Cap Screw - Socket Head | 1 |
|
7 |
053-1875-00-216 | Trim Ring | 1 |
|
8 |
053-1151-01 | Washer | 1 |
|
9 |
029-2498-00 | Console Bearing Assembly - includes items 10 - 14 | 1 |
|
10 |
016-0856-00 | Needle Bearing | 1 |
|
11 |
040-0250-07 | Cap Screw - Socket Head | 5 |
|
12 |
057-0569-00 | Housing | 1 |
|
13 |
040-0250-155 | Set Screw | 1 |
|
14 |
016-0149-20 | IGlide Bearing | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
