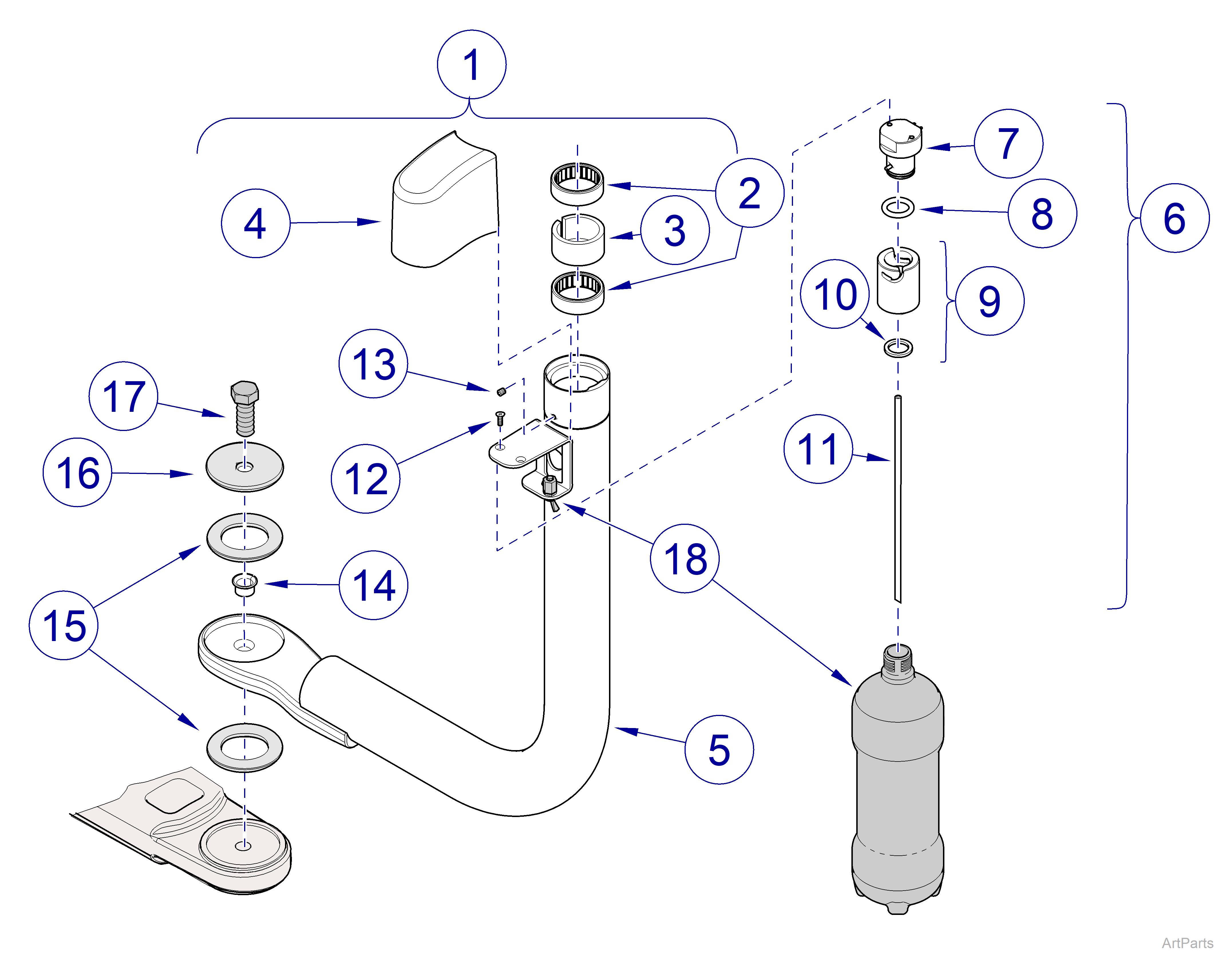

Elevance® Dental Chair LR Unit Arm Assembly
|
Mounted To |
Elevance Chair |
| Serial Number | All |
| Elevance® Dental Chair LR Unit Arm Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1928-00 | LR Unit Arm Assembly - includes items 2 thru 10 | 1 |
|
2 |
Needle Bearing | NSS | |
|
3 |
Slotted Sleeve Bearing | NSS | |
|
4 |
053-1735-00-216 | Water Bottle Cover | 1 |
|
5 |
Unit Arm Assembly | NSS | |
|
6 |
029-3977-00 | Water Bottle Quick Disconnect Cap Assembly - includes item 7, 8, 9 and 11 | 1 |
|
7 |
053-1722-00 | Water Bottle Manifold | 1 |
|
8 |
014-0176-27 | O-Ring | 1 |
|
9 |
002-10269-00 | Water Bottle Cap Kit - includes item 10 | 1 |
|
10 |
053-2675-00 | Water Bottle Washer | 1 |
|
11 |
117524 | Blue Tubing | 1 |
|
12 |
121964 | Screw - Phillips Head | 2 |
|
13 |
040-0250-155 | Set Screw | 1 |
|
14 |
Flange Bearing | NSS | |
|
15 |
Refer to: | Bearing Assembly | - |
|
16 |
Refer to: | Bearing Cap | - |
|
17 |
Refer to: | Screw - Hex Head | - |
|
18 |
Refer to: | Air Toggle Switch and Water Bottle | - |
|
19 |
Refer to: | City Water Selector Switch and Water Bottle - not shown | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
