Elevance® Dental Chair Rear Mtd. Assistant’s Arm
|
Mounted To |
Elevance Chair |
| Serial Number | V2200 thru Present |

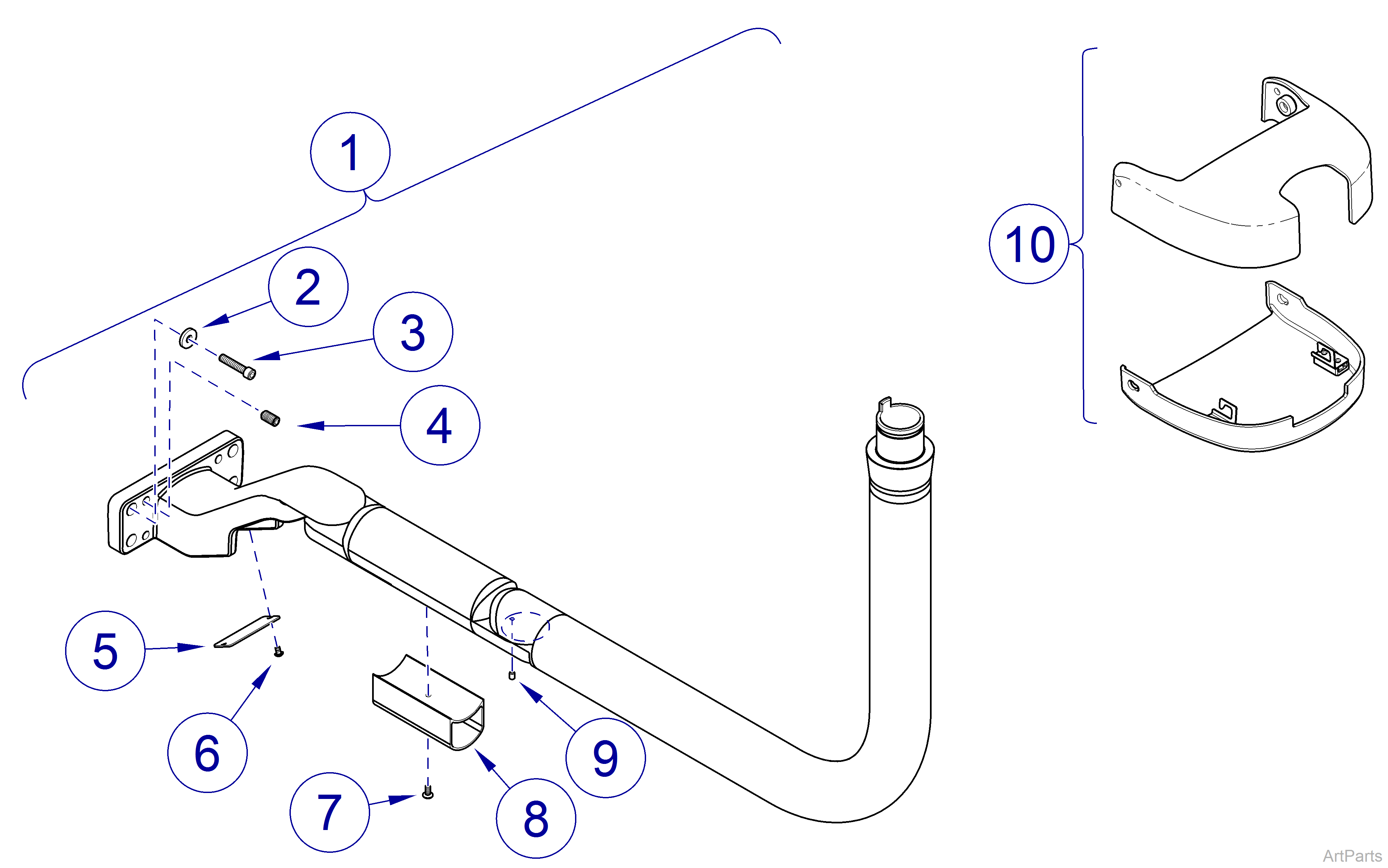

| Elevance® Dental Chair Rear Mtd. Assistant’s Arm | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10322-00 | Rear Mtd. Asstistant’s Arm Kit - includes Items 2 thru 9 | 1 |
|
2 |
045-0001-156 | Plain Washer 1/4" | 4 |
|
3 |
040-0250-135 | Cap Screw 1/4-20 x 1-1/4" | 4 |
|
4 |
040-0375-83 | Set Screw 3/8-16 x .75" Hex Socket | 4 |
|
5 |
050-7601-00-216 | Bottom Plate | 1 |
|
6 |
040-0008-97 | Screw #8-32 Pan Head | 2 |
|
7 |
040-0010-109 | Screw #10-24 x 3/8" Pan Head | 2 |
|
8 |
021-0079-00-216 | Tubing Extrusion | 1 |
|
9 |
121428 | Set Screw - Nylon-tipped | 2 |
|
10 |
Pivot Cover Options | ||
|
|
029-4654-00 | Assembly without Quick Disconnect | 1 |
| 029-4654-01 | Assembly with Quick Disconnect - Not shown | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
