Elevance® Chair Checking Oil Level Test and Repair
Always disconnect chair from the power source before removing any covers. Failure to do so may result in personal injury.
1.Position chair.
a.Rotate chair to the right for more room to work.
b.Tap a lift arm cover three times to raise chair to the home position.
c.Lower back until level with seat.
d.Disconnect chair from power supply.

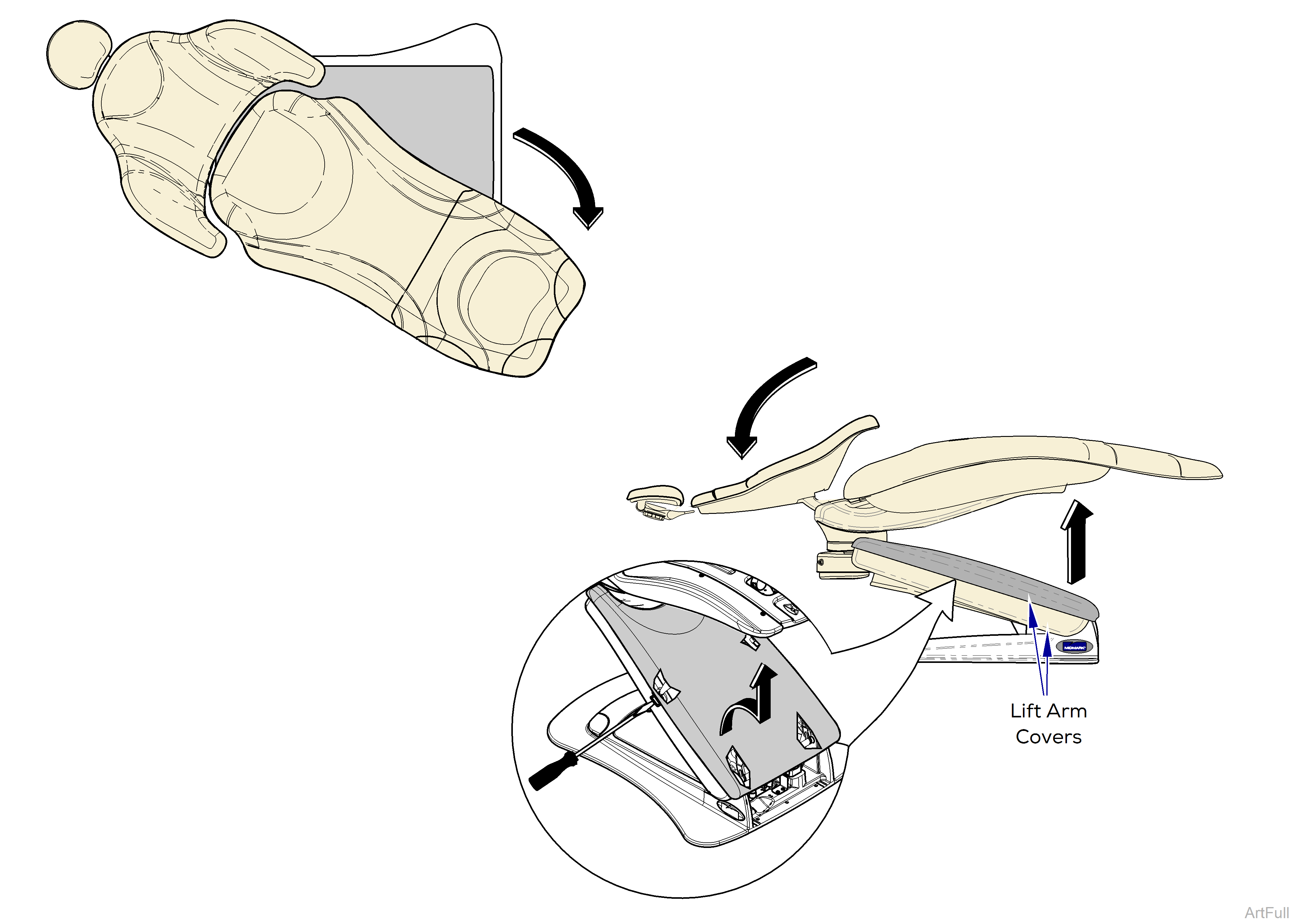

2.Remove the upper arm lift cover by pushing clips in with a slotted screwdriver to release clips and lift upper arm lift cover up to free front clips from shaft.
3.Check oil level.

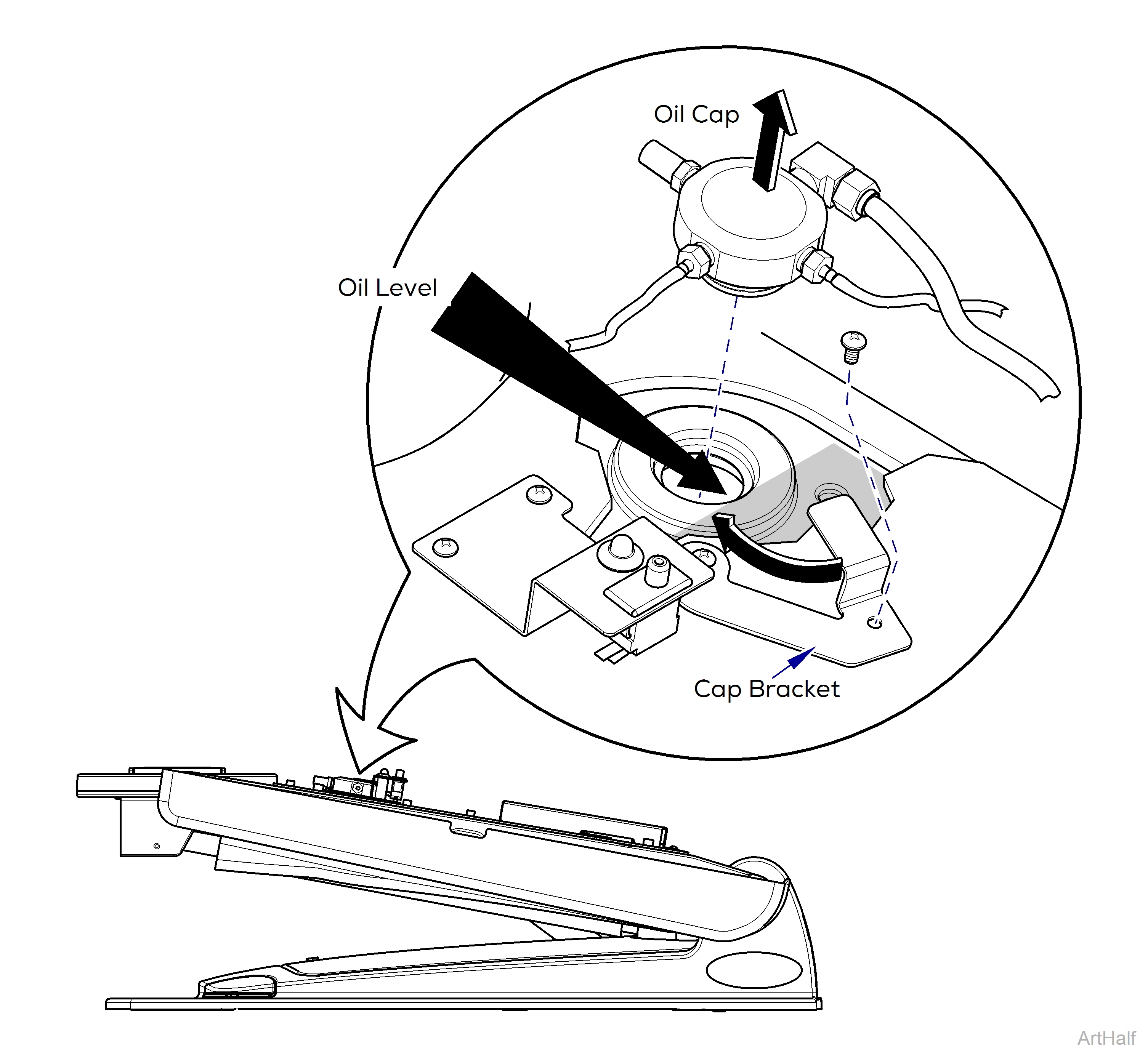

a.Remove screw in cap bracket and rotate bracket to remove.
b.Pull up on oil cap to remove from reservoir.
c.Oil should be level with the base of the oil cap opening.
d.Add only Hydraulic Oil with Viscosity ISOVG 32 if oil level is low.
Factory fill volume: 1.3 - 1.4 U.S. quarts (1.2 - 1.3 liters).
4.Install oil cap, cap bracket and lift arm cover.
a.Push oil cap into tank opening.
b.Place bracket over screw, rotate bracket to fit over oil cap and screw into tank.
c.Replace upper arm lift cover.
5.Connect chair to power supply.
