Ultra Chair UltraComfort® Upholstery
UltraComfort® Chair Standard Upholstery
Refer to: the Upholstery Color Options for the order number extension of your desired color.
| Ultra Chair, UltraComfort ® Standard Upholstery | |||
|---|---|---|---|
| Item | Part Number | Description -Always Specify A Color Option | Qty |
|
1 |
154070-xxx |
Standard Upholstery, UltraComfort ® - Includes Items 2 and 3 |
1 |
|
2 |
Seat Cushion - Includes Item 12 |
1 |
|
|
3 |
Back Cushion |
1 |
|
|
4 |
154074-xxx |
Double Articulating Headrest w/Upholstery - Includes Items 5 and 6 |
1 |
|
5 |
Headrest Cushion |
1 |
|
|
6 |
Refer to: |
- |
|
|
7 |
Refer to: |
Back Casting in Back Components - UltraComfort | - |
|
8 |
Bolt |
2 |
|
|
9 |
Push Retainer - Early units only |
6 |
|
|
10 |
Knob Assembly |
6 |
|
|
11 |
Refer to: |
Seat Frame in Seat Components |
- |
|
12 |
Footrest Cover - Standard |
1 |
|
|
13 |
Pediatric Footrest Cover - Not Shown, 9" longer than Standard |
1 |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

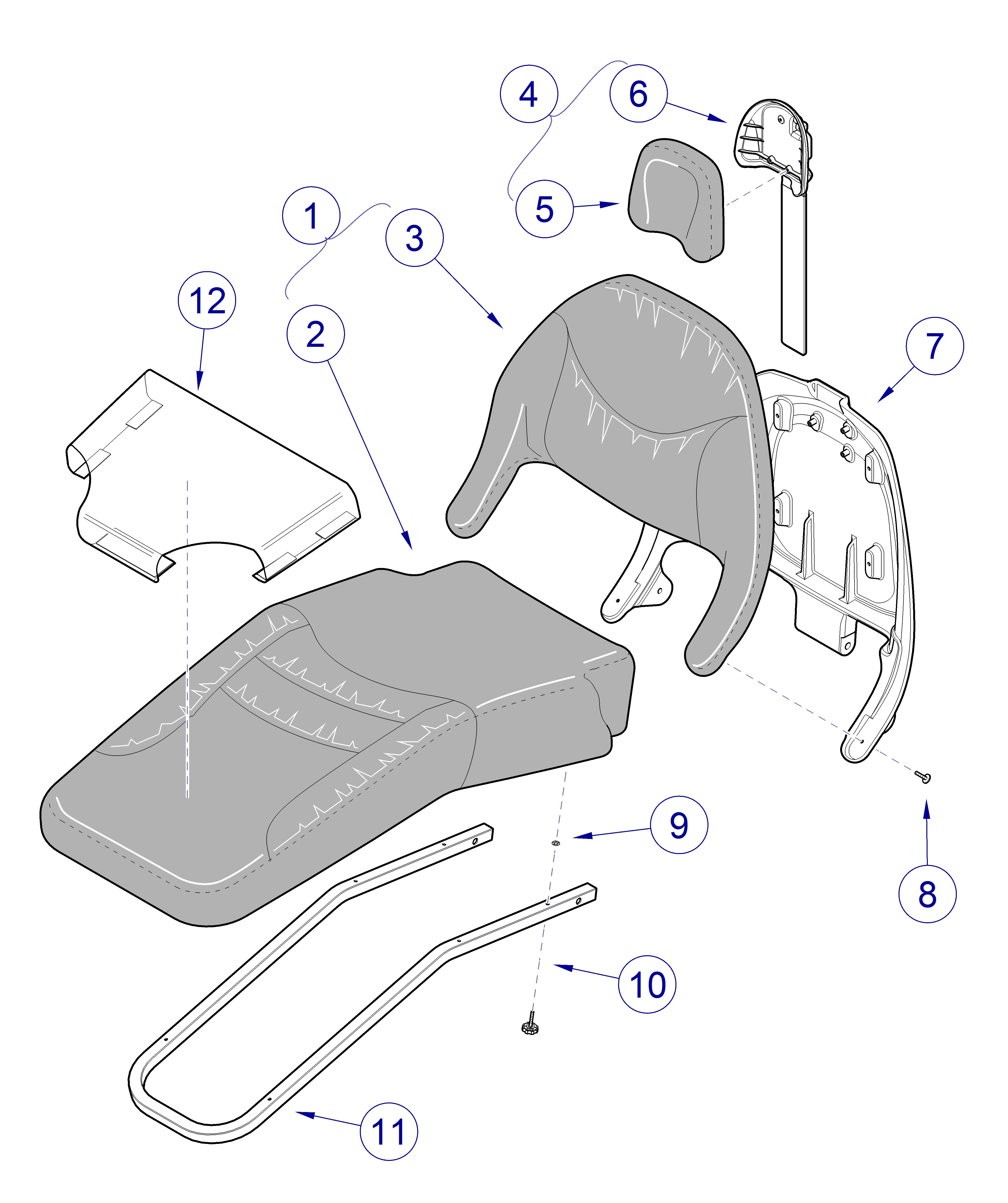

UltraComfort® Chair Ultraleather Upholstery
Refer to: the Upholstery Color Options for the order number extension of your desired color.
| Ultra Chair, UltraComfort ® Ultraleather Upholstery | |||
|---|---|---|---|
| Item | Part Number | Description -Always Specify A Color Option | Qty |
|
1 |
Ultraleather Upholstery Options |
||
| 154054-xxx | Cut /Sewn Ultraleather Upholstery | 1 | |
| 154103-xxx | Seamless Ultraleather Upholstery | 1 | |
|
2 |
Seat Cushion Options |
||
| 028-0505-xxx | Cut/Sewn Seat Cushion - Includes Item 12 | 1 | |
| 028-0536-xxx | Seamless Seat Cushion - Includes Item 12 | 1 | |
|
3 |
Back Cushion Options |
||
| 028-0506-xxx | Cut/Sewn Back Cushion | 1 | |
| 028-0537-xxx | Seamless Back Cushion | 1 | |
|
4 |
154051-xxx |
Double Articulating Headrest w/Upholstery |
1 |
|
5 |
Headrest Cushion |
1 |
|
|
6 |
Refer to: | Double Articulating Headrest |
- |
|
7 |
Refer to: |
Back Casting in Back Components - UltraComfort | - |
|
8 |
Bolt |
2 |
|
|
9 |
Push Retainer - Early units only |
6 |
|
|
10 |
Knob Assembly |
6 |
|
|
11 |
Refer to: |
Seat Frame in Seat Components |
- |
|
12 |
Footrest Cover - Standard |
1 |
|
|
13 |
Pediatric Footrest Cover - Not Shown, 9" longer than Standard |
1 |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
