Ultra Chair Hoses and Fittings

Model

 Ultra Chair 153592
Serial Number NT2048 and NZ1000 to V2200 and V2201 to V2187846

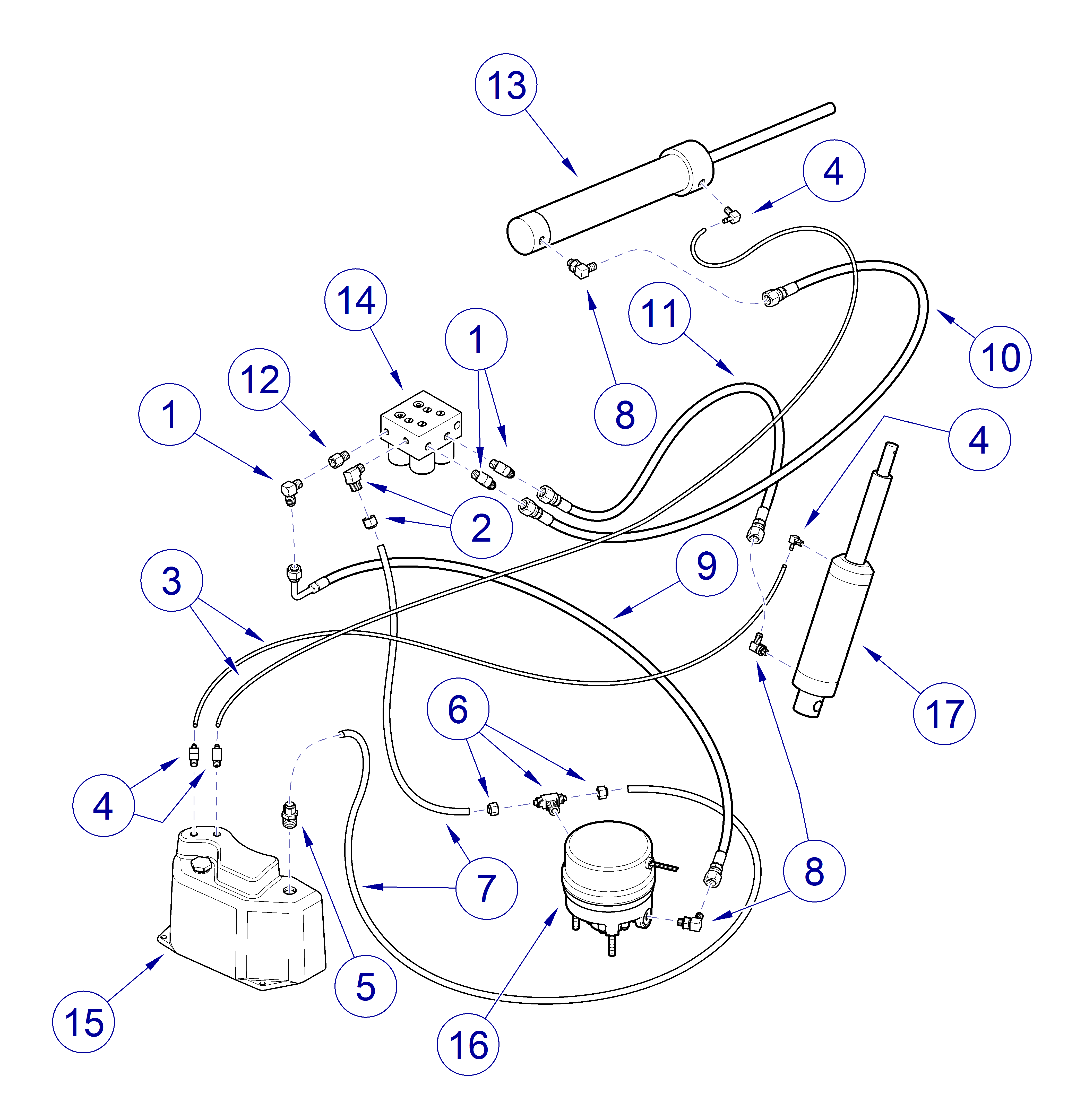

Midmark® Ultra-Series Dental Chair Hoses and Fittings

Ultra Chair Hoses and Fittings
Item Part Number Description Qty

1

014-0358-00

Elbow Fitting

3

2

014-0362-00

Elbow Fitting - include Compression Nut

1

3

177533

Leak Line Hose

5 feet

4

014-0505-00

Elbow Fitting

4

5

014-0389-00

Straight Fitting

1

6

014-0360-00

Tee Fitting - Includes Compression Nuts

1

7

275274

Tubing

1.25 feet

8

014-0173-00

Elbow Fitting

3

9

014-0401-00

Pump Hose

1

10

014-0738-00

Back Cylinder Hose

1

11

014-0737-00

Lift Cylinder Hose

1

12

014-0317-03

Adapter

1

13

Refer to:

Back Cylinder in Hydraulic Components

-

14

Refer to:

Valve Block Assembly in Hydraulic Components

-

15

Refer to:

Hydraulic Reservoir in Hydraulic Components

-

16

Refer to:

Hydraulic Pump in Hydraulic Components

-

17

Refer to:

Lift Cylinder in Hydraulic Components

-

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 Ultra Chair 153592
Serial Number V2187847 to Present

Midmark® Ultra-Series Dental Chair Hoses and Fittings

Ultra Chair Hoses and Fittings
Item Part Number Description Qty

1

014-10079-00

Elbow Fitting

3

2

014-0362-00

Elbow Fitting - include Compression Nut

1

3

177533

Leak Line Hose

5 feet

4

014-0505-00

Elbow Fitting

4

5

014-0389-00

Straight Fitting

1

6

014-0360-00

Tee Fitting - Includes Compression Nuts

1

7

275274

Tubing

1.25 feet

8

014-10078-00

Elbow Fitting

3

9

014-10073-00

Pump Hose

1

10

014-10076-00

Back Cylinder Hose

1

11

014-10077-00

Lift Cylinder Hose

1

12

014-0317-06

Adapter

1

13

Refer to:

Back Cylinder in Hydraulic Components

-

14

Refer to:

Valve Block Assembly in Hydraulic Components

-

15

Refer to:

Hydraulic Reservoir in Hydraulic Components

-

16

Refer to:

Hydraulic Pump in Hydraulic Components

-

17

Refer to:

Lift Cylinder in Hydraulic Components

-

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
