AH9000 Mobile Delivery Unit Lower Section Components
|
Model |
All |
| Serial Number | V2200 thru Present |
| Circuit Breaker | |
|---|---|
| Overload % | Trip Times |
| 100 % | No Trip |
| 135 % | 1 Hour |
| 200 % | 2.2 - 15 sec |
| 400 % | 0.55 - 1.8 sec |
| 600 % | 0.27 - 0.7 sec |
| 800 % | 0.17 - 0.45 sec |
| 1000 % | 0.12 - 0.3 sec |

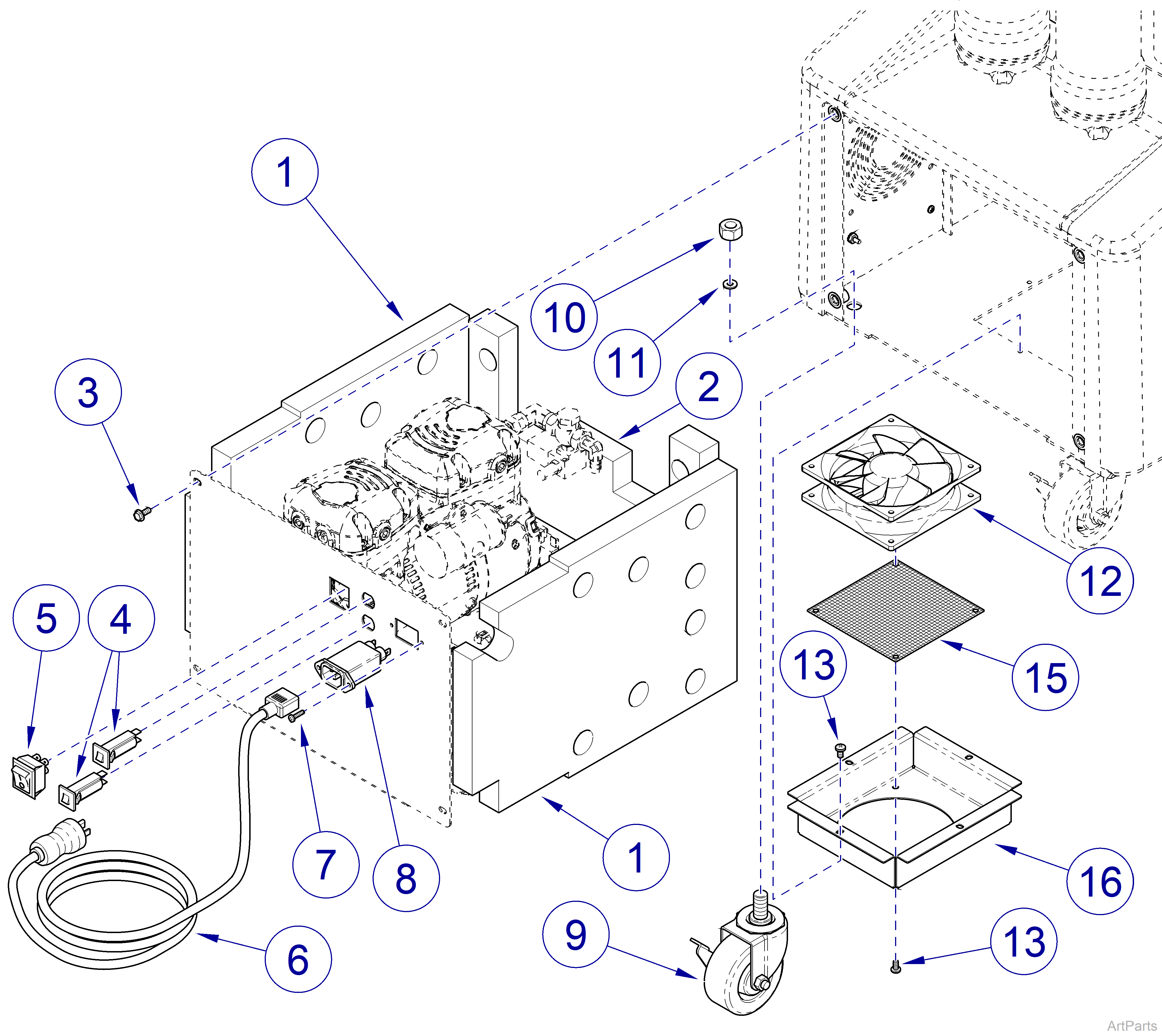

| AH9000 Mobile Delivery Unit Lower Section Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
054-10125-00 | Sound Absorbing Side Foam | 2 |
|
2 |
054-10123-00 | Sound Absorbing Front Foam | 1 |
|
3 |
61507800 | Whiz Lock Screw #10-24 x 1/2 inch | AR |
|
4 |
Circuit Breaker Options | ||
| 015-2711-02 | 7 amp. Domestic | 2 | |
| 015-2711-03 | 4 amp Export | 2 | |
|
5 |
015-11712-00 | Rocker Switch | 1 |
|
6 |
Power Cord | ||
| 002-1574-00 | Domestic | 1 | |
| 015-0363-00 | Export Model | 1 | |
|
7 |
040-0006-139 | Pan Head Screw 6-32 X 5/8 inch | AR |
|
8 |
015-11321-00 | Power Intlet | 1 |
|
9 |
016-1423-00 | 3 inch Locking Caster | 4 |
|
10 |
041-0500-00 | Nut 1/2 inch | 4 |
|
11 |
045-0001-33 | 1/2 inch Lock Washer | 4 |
|
12 |
Fan Kit - includes items 13 and 14 | ||
| 002-11096-00 | 115 VAC | 3 | |
| 002-11097-00 | 230 VAC | 3 | |
|
13 |
040-0010-109 | Pan Head Screw #10-24 X 3/8 inch | AR |
|
14 |
015-11549-00 | Cable Tie Locking - not shown | 3 |
|
15 |
016-1283-00 | Wire Mess Screen | 1 |
|
16 |
050-13357-00-813 | Fan Bracket | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
