AH9000 Mobile Delivery Unit Handpieces and Maintenance
Midmark Brand Handpieces and Parts:
High-Speed Serial Number Range: V2200 thru Present
|
Model |
ALL |
| Serial Number | V2200 thru Present |
| AH9000 Mobile Delivery Unit Handpieces and Maintenance | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Standard Head High-Speed Instrument No Swivel Options | ||
| 002-10546-00 | Standard Head Non Fiber Optic | 1 | |
| 002-10549-00 | Standard Head with Fiber Optic | 1 | |
|
2 |
Small Head High-Speed Instrument No Swivel Options | ||
| 002-10029-00 | Small Head Non Fiber Optic | 1 | |
| 002-10021-00 | Small Head with Fiber Optic | 1 | |
|
3 |
5-Hole Replacement Gasket - Used On Items 1 and 2 |
1 | |
| 6-Pin Replacement Gasket | 1 | ||
|
4 |
Head Cap and Turbine Cartridge Kit Options | ||
| 002-10512-00 | Standard Head Cap and Turbine Cartridge Kit | 1 | |
| 002-10511-00 | Small Head Cap and Turbine Cartridge Kit | 1 | |
|
5 |
016-1312-00 | Wave Spring | 1 |
|
6 |
Handpiece Conditioner Options - Includes Item 7 | ||
| 002-1432-00 | Single Can | AR | |
| 002-1432-01 | Case of 12 Cans | AR | |
|
7 |
053-2259-00 | Conditioning Tubes - qty3 | 1 |
|
8 |
Swivel Handpiece Conditioning Nozzle | 1 | |
|
9 |
002-10540-00 | Push Button/Chuck Conditioner Nozzle | 1 |
|
10 |
016-1728-00 | Swivel Coupler Wrench | 1 |
|
11 |
016-1309-00 | Head Cap Wrench | 1 |
|
12 |
002-10538-00 | Diffuser Kit - Standard Head Only - Includes Item 13 |
1 |
|
13 |
016-10201-00 | Diffuser Wrench, Standard Head Only | 1 |
|
14 |
002-1295-00 | Small Head Spray Port Cleaning Tool - Not Shown |
1 |
|
15 |
002-10574-00 |
Standard Head Spray Port Cleaning Tool |
1 |
|
16 |
016-1310-00 | O-ring, Head - Not Shown |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

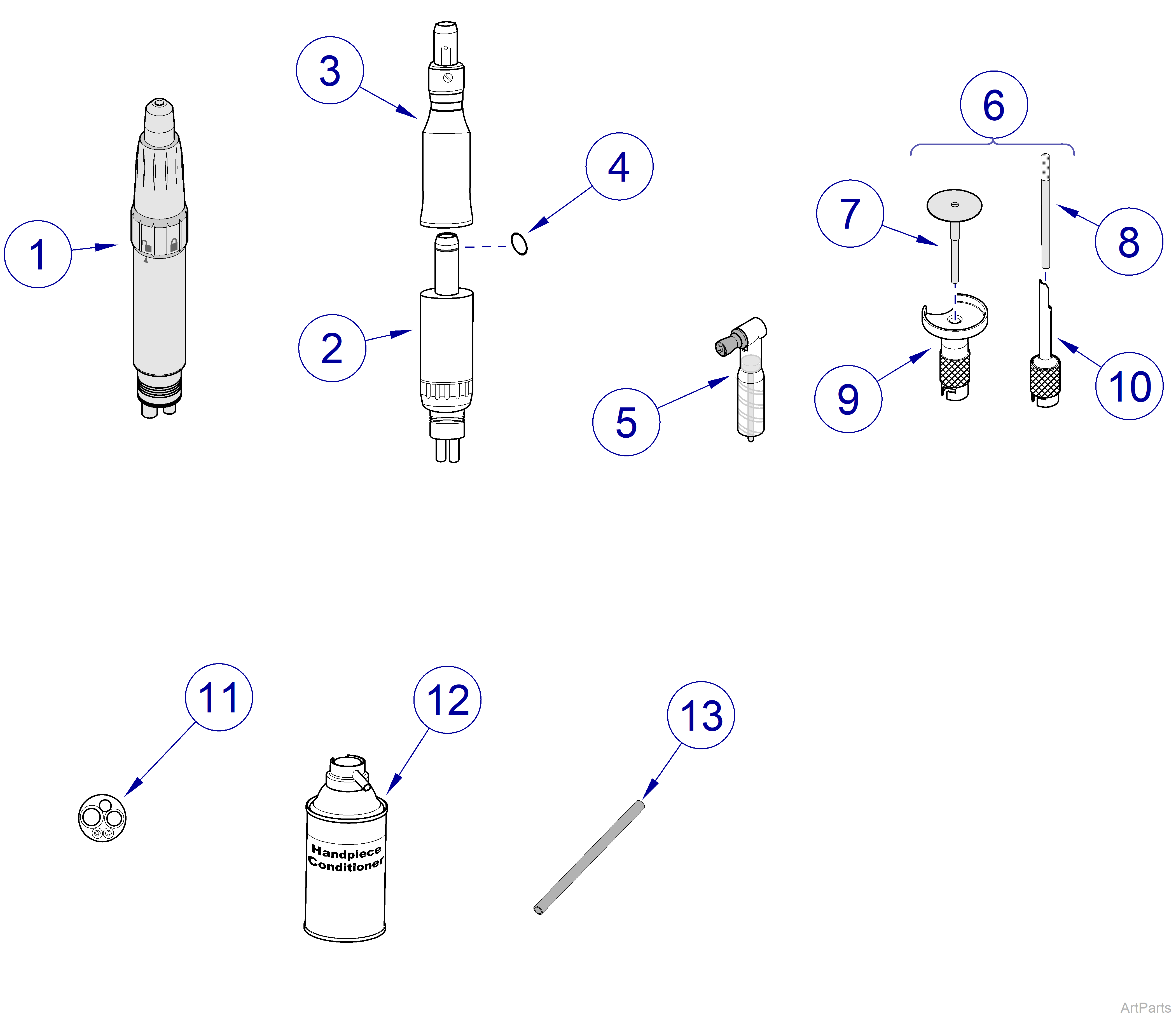

Low-Speed Serial Number Range: V2200 thru Present
|
Model |
ALL |
| Serial Number | V2200 thru Present |
| AH9000 Mobile Delivery Unit Handpieces and Maintenance | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Low-Speed Handpiece, 0-5,000RPM |
1 | |
|
2 |
Low-Speed Handpiece Motor, 0-20,000 RPM |
1 | |
|
3 |
Nose Cone Options - Used With Item 2 |
||
| 002-1605-00 | 1:1 - For Exotics and Advanced Procedures | 1 | |
| 002-1605-01 | 4:1 - For Polishing | 1 | |
|
4 |
016-1362-00 | O-Ring | 1 |
|
5 |
002-1279-02 |
Disposable Prophy Angle with Cup - 100 per box |
1 |
|
6 |
002-1664-00 |
Rodent Bur Kit - Used With Item 3, Nose Cone 1:1 |
1 |
|
7 |
016-1204-10 | Replacement Diamond Disk, Medium Grit | 1 |
|
8 |
Replacement Diamond Bur, Extra Long 60 mm | 1 | |
|
9 |
057-1353-00 | Dental Guard - Disk | 1 |
|
10 |
057-1354-00 | Dental Guard - Bur | 1 |
|
11 |
016-1308-00 |
5-Hole Replacement Gasket |
1 |
|
12 |
Handpiece Conditioner Options - Includes Item 13 |
||
| 002-1432-00 | Single Can | AR | |
| 002-1432-01 | Case of 12 Cans | AR | |
|
13 |
Conditioning Tubes - qty3 | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

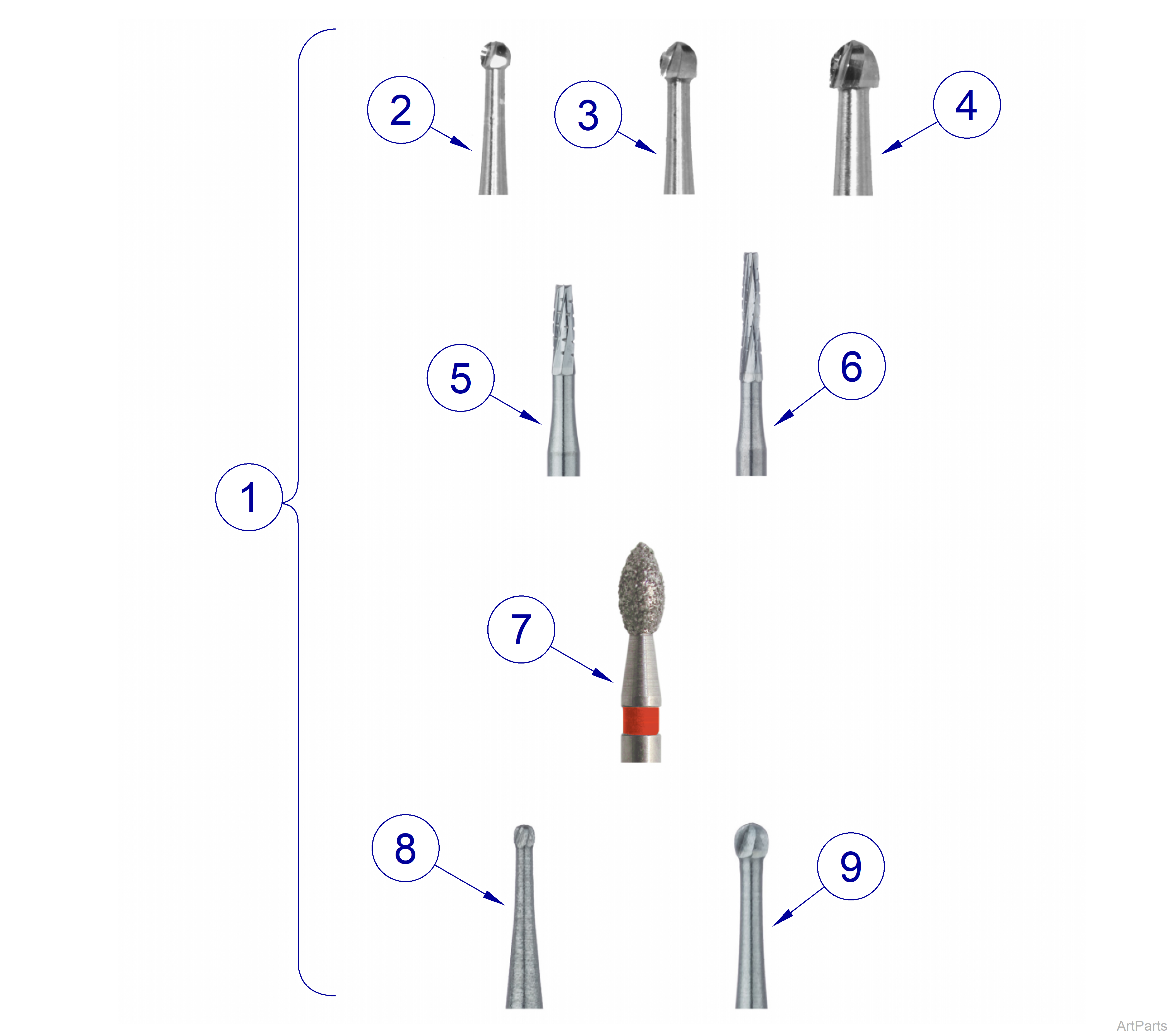

Serial Number Range: V2200 thru Present
|
Model |
All |
| Serial Number | V2200 thru Present |
| AH9000 Mobile Delivery Unit Handpieces and Maintenance | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10789-00 | Bur Block Kit - Including all Burs, 1 each | 1 |
|
|
Round Bur Options | ||
|
2 |
016-1204-00 | # 2 Round Bur | 1 |
|
3 |
016-1204-01 | # 4 Round Bur | 1 |
|
4 |
016-1204-02 | # 6 Round Bur | 1 |
|
|
Taper Fissure Options | ||
|
5 |
016-1204-03 | # 701 Cross Cut Taper Fissure | 1 |
|
6 |
016-1204-04 | # 701L Cross Cut Taper Fissure, Long | 1 |
|
|
Diamond | ||
|
7 |
016-1204-09 | #831F Diamond Football, Fine | 1 |
|
8 |
Round Surgical Options | ||
| 016-1204-14 | #1/4 Round | 5 | |
| 016-1204-18 | #2 Round, Surgical Length | 5 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
