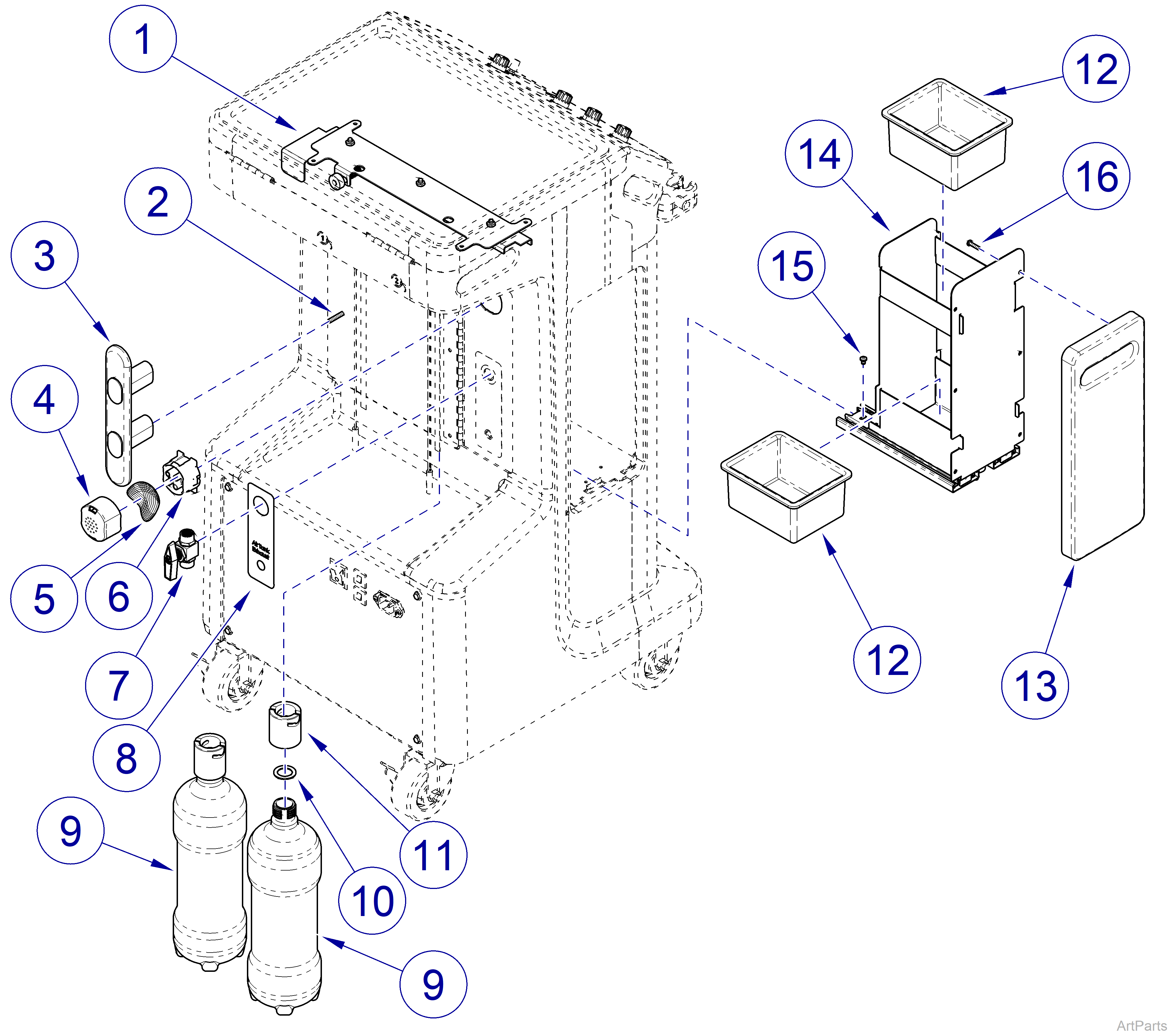

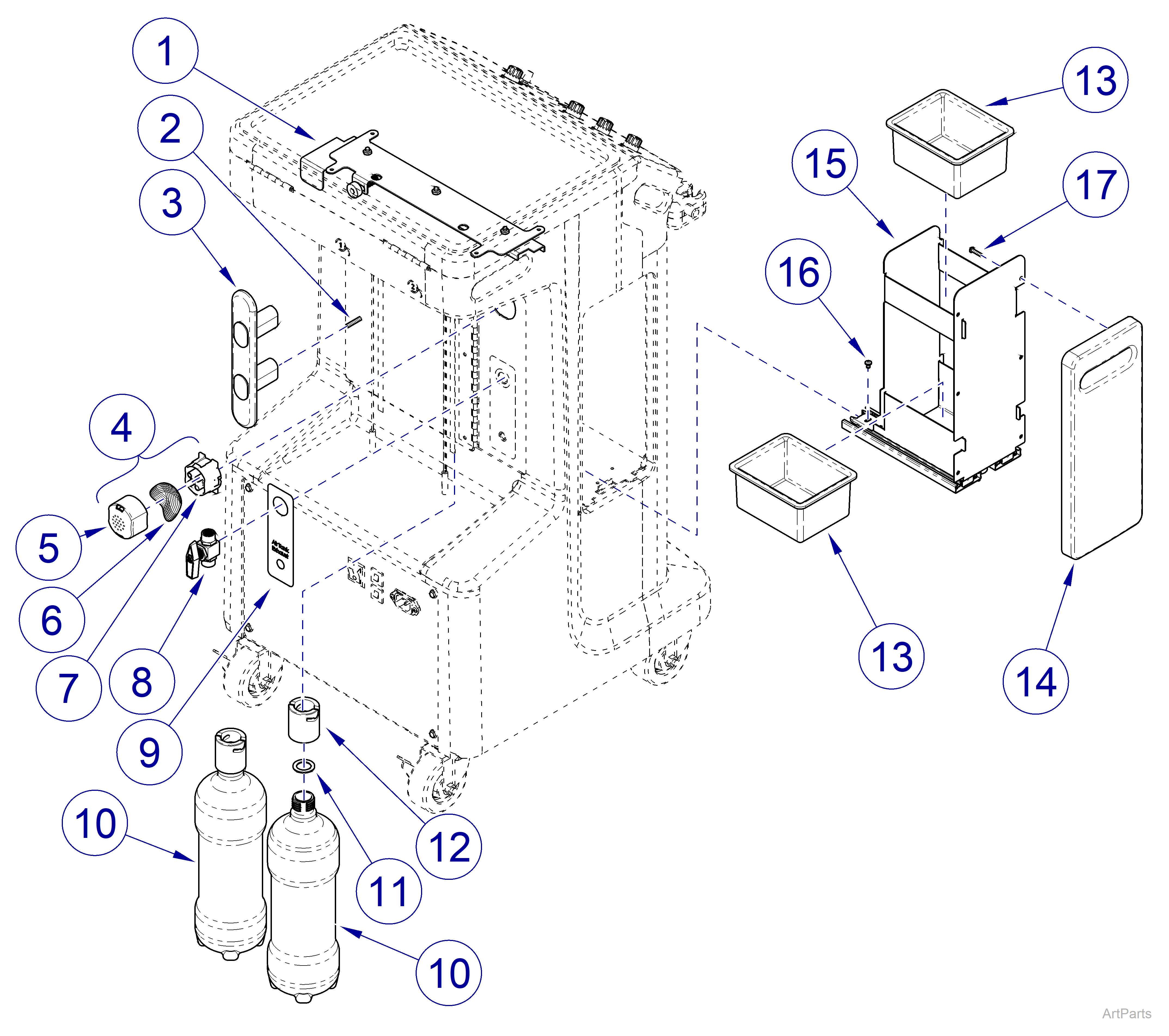

AH9000 Mobile Delivery Unit Middle Compartment Components
|
Model |
All |
| Serial Number | V2200 thru Present |
| AH9000 Mobile Delivery Unit Middle Compartment Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-11025-00 | Latch Kit |
1 |
|
2 |
Torx Head Screw 10-14 X 3/4 inch | AR | |
|
3 |
029-11615-00 | Door Handle | 1 |
|
4 |
053-1615-00-813 | Exhaust Collector Bottom Housing | 1 |
|
5 |
121547 | Gauze Sponge | 2 |
|
6 |
053-1614-00-813 | Exhaust Collector Bottom Housing | 1 |
|
7 |
014-10196-00 | Panel Mounted Shut Off Valve | 1 |
|
8 |
061-10384-00 | Air Tank Exhaust Label | 1 |
|
9 |
053-1828-00 | Water Bottle |
2 |
|
10 |
053-2675-00 |
Water Bottle Cap Washer |
NSS |
|
11 |
Water Bottle Cap Assembly - includes item 10 |
2 |
|
|
12 |
Side Storage Bin | 2 | |
|
13 |
Side Storage Door | 1 | |
|
14 |
002-11026-00 | Side Storage Kit - includes items 14 and 15 | 1 |
|
15 |
040-0008-97 | Pan Head Screw 8-32 X 1/4 inch | AR |
|
16 |
042-0184-02 | Pan Head Screw M4 x 1.79 x 10M | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
