AH9000 Mobile Delivery Unit Tubing and Fittings
|
Model |
All |
| Serial Number | V2200 thru Present |
All tubing must be ordered by the foot. Therefore, the quantity ordered is the amount of feet of tubing needed. Example: ordering a quantity of 2 would be ordering two feet of tubing.

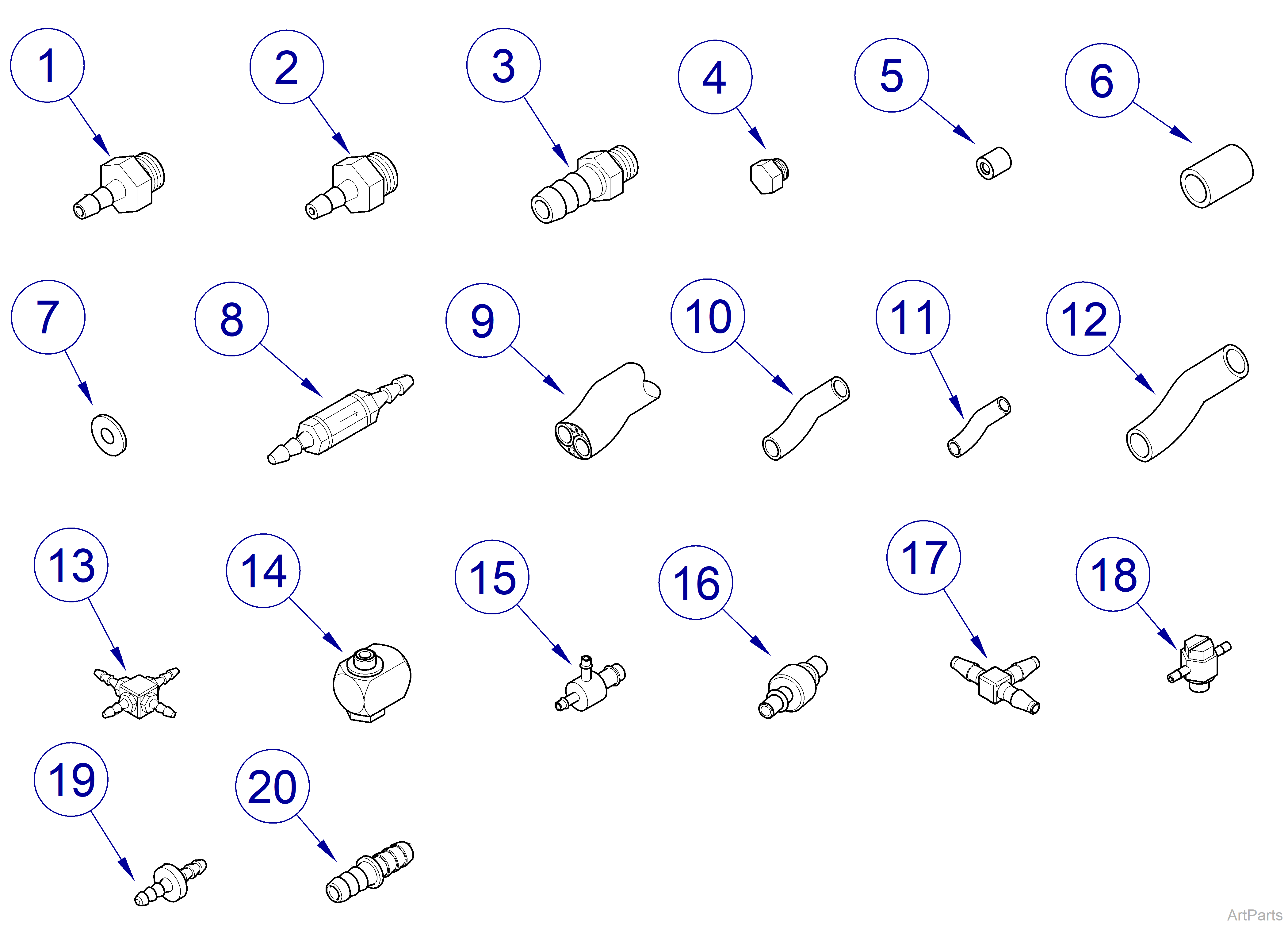

| AH9000 Mobile Delivery Unit Tubing and Fittings | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
014-0775-00 | Connector 8-32 to 1/8inch O.D. Tube - Tri-block and Quadblock | AR |
|
2 |
109714 | Fitting 10-32 x 1/16 inch Barb | AR |
|
3 |
117349 | Connector 10-32 to 1/4 inch O.D. Tube | AR |
|
4 |
117351 | Brass Plug 10-32 Threads | AR |
|
5 |
117479 | Uni-Clamp 1/8 inch O.D. Tube | AR |
|
6 |
117480 | Sleeve Clamp 1/4 inch O.D. Tube | AR |
|
7 |
Gasket Options | ||
|
|
053-2677-00 | Sealing Gasket | AR |
| 117660 | Gasket, 0.188 x 0.312 x 0.031 | AR | |
|
8 |
117698 | Check Valve 1/8 inch O.D. Tube | AR |
|
9 |
Tubing Options | ||
| 2- Hole Aseptic Syringe Hose - Not Shown | AR | ||
| 014-10301-00 | Tubing, Foot Control - Not Shown | AR | |
| 016-10103-00 | Tubing, Handpiece, ISO, 4 Port (Low Speed HP)- Not Shown | AR | |
| 016-10104-00 | Tubing, Power Optic, ISO, 6 Pin, Conform (High Speed Swivel HP)- Not Shown | AR | |
| 016-10105-00 | Tubing, Power Optic, 5 Hole ISO, Conform (High Speed Fixed HP)- Not Shown | AR | |
| 029-11134-00 | Tubing, Syringe, 2 Hole Jacketed (3 Way Syringe)- Not Shown | AR | |
|
10 |
1/8 inch ID x 1/4 inch OD Tubing Options | ||
| 177524 | Blue | AR | |
| 275263 | Yellow | AR | |
| 014-10098-00 | Clear | AR | |
|
11 |
1/16 inch ID Tubing Options | ||
| 177531 | Red Tubing .159 inch ID | AR | |
| 177523 | Blue Tubing 1/8 inch ID | AR | |
| 177529 | Clear Tubing 1/8 inch ID | AR | |
| 275257 | White Tubing 1/16 inch ID | AR | |
|
12 |
014-10286-00 | Blue Tubing 3/8 inch ID | AR |
|
13 |
029-4999-00 | Block Cross Assembly | AR |
|
14 |
016-0888-00 | 90 Degree Swivel Fitting 10-32 | AR |
|
15 |
014-0687-00 | Barb Tee Fitting 1/8” x 1/16” x 1/16” | AR |
|
16 |
014-0526-00 | Barb Fitting 5/32, 3/16 | AR |
|
17 |
117477 | Fitting | AR |
|
18 |
014-0707-00 | Tee, 10-32 X 1/16” BARB X 1/16” BARB | AR |
|
19 |
117481 | Fitting, Barb 1/16 inch to 1/16 inch | AR |
|
20 |
117482 | Fitting, Barbed Union | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
