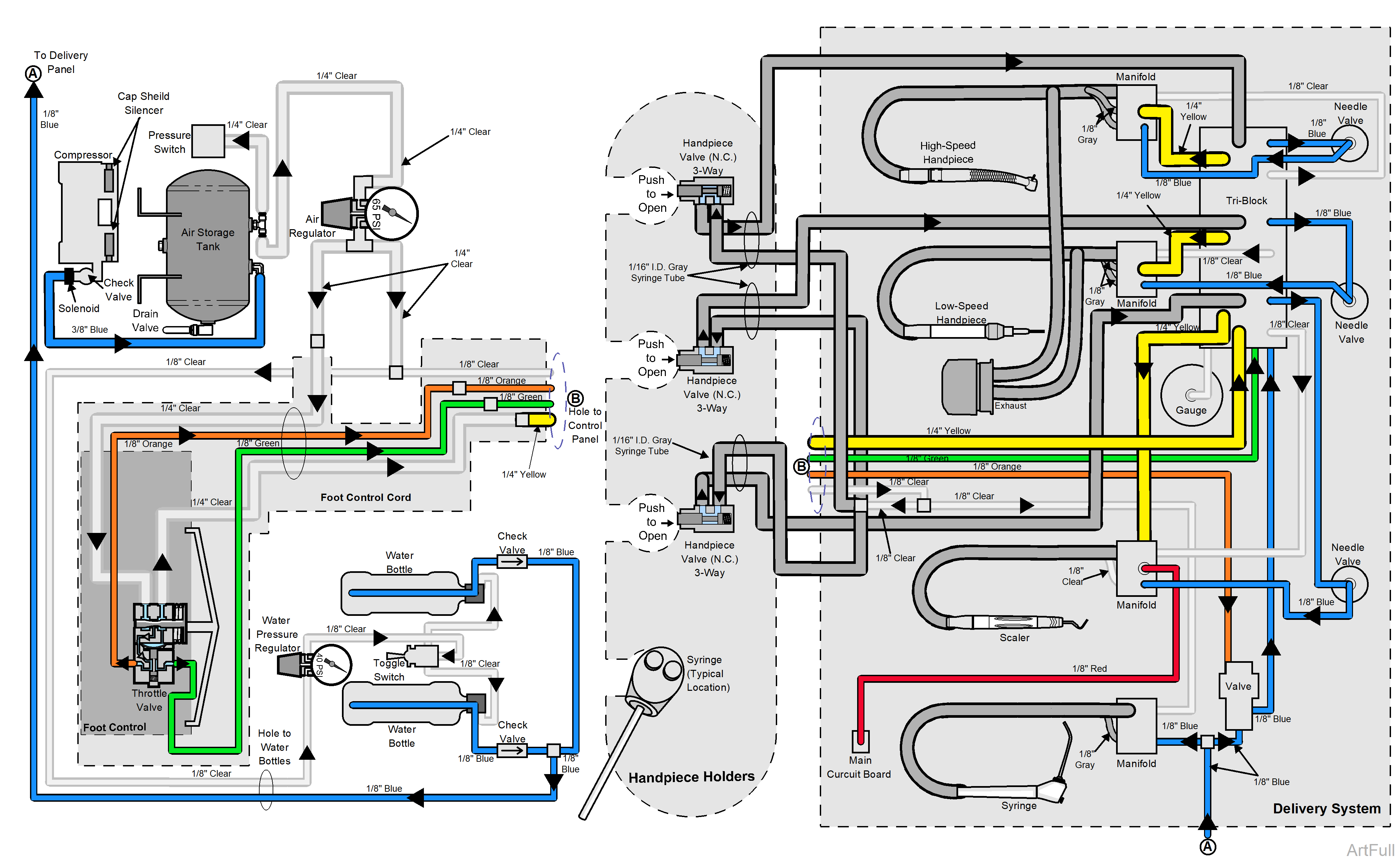

AH9000 Mobile Delivery Unit Tubing Diagram
Model Range AH9000-001, -002, -004, -005 Serial Number Range: VA2200 to Present
|
Model |
AH9000-001, -002, -004, -005 |
| Serial Number | V2200 to Present |
Refer to Tri-Block Manifold for rear view of tubing connections for clarity.

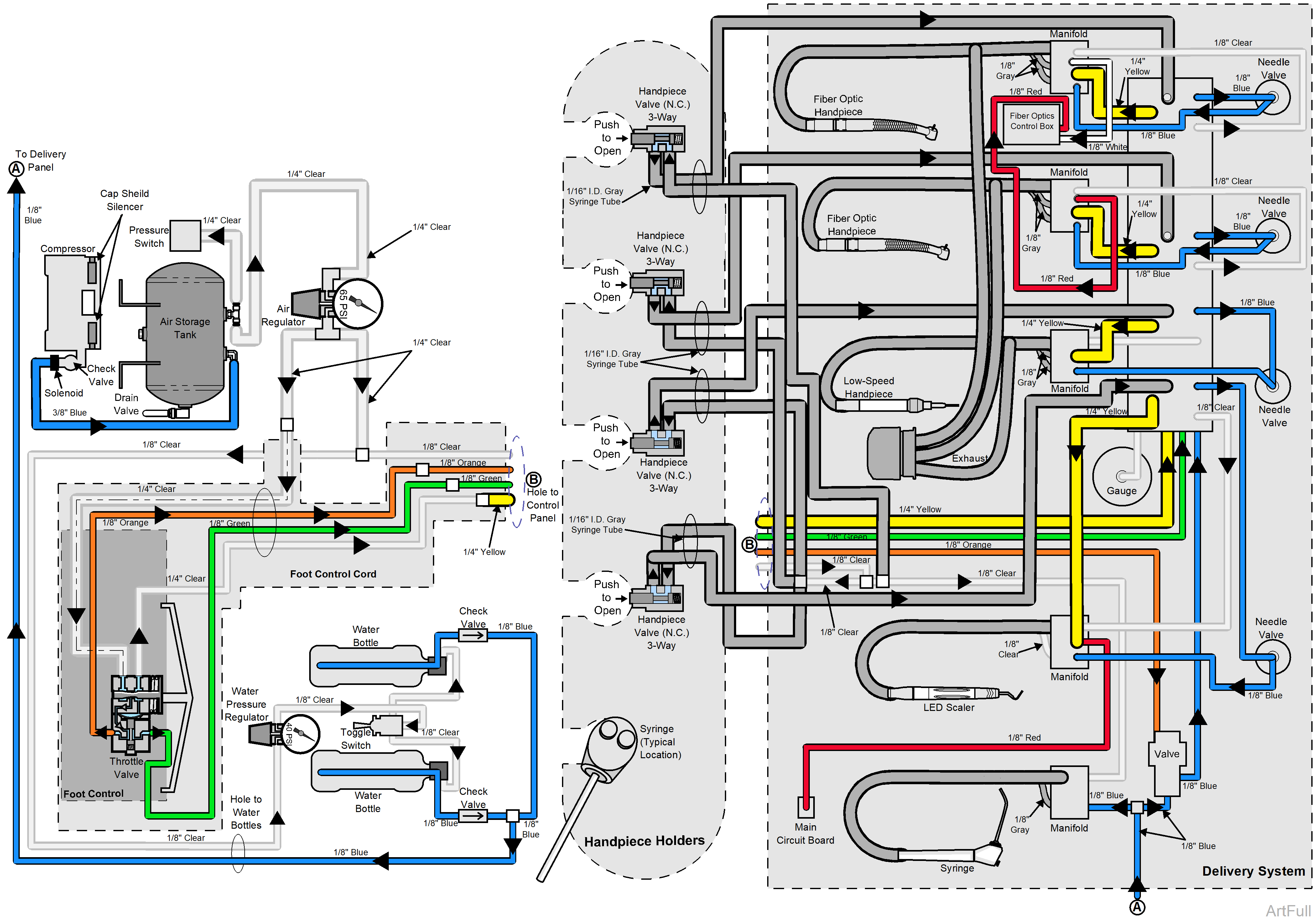

Model Range 9000-003 Serial Number Range:VA2200 to Present
|
Model |
AH9000-003 |
| Serial Number | VA2200 to Present |
Refer to Quadblock Manifold for rear view of tubing connections for clarity.
Tri-block Manifold
Serial Number Range: V2200 to Present|
Model |
AH9000-001, -002, -004, -005 |
| Serial Number | V2200 to Present |
The drive air adjustment screws are located on front of Tri-Block.
Quadblock Manifold
|
Model |
AH9000-003 |
| Serial Number | V2200 to Present |
The drive air adjustment screws are located on front of Quad-Block.
