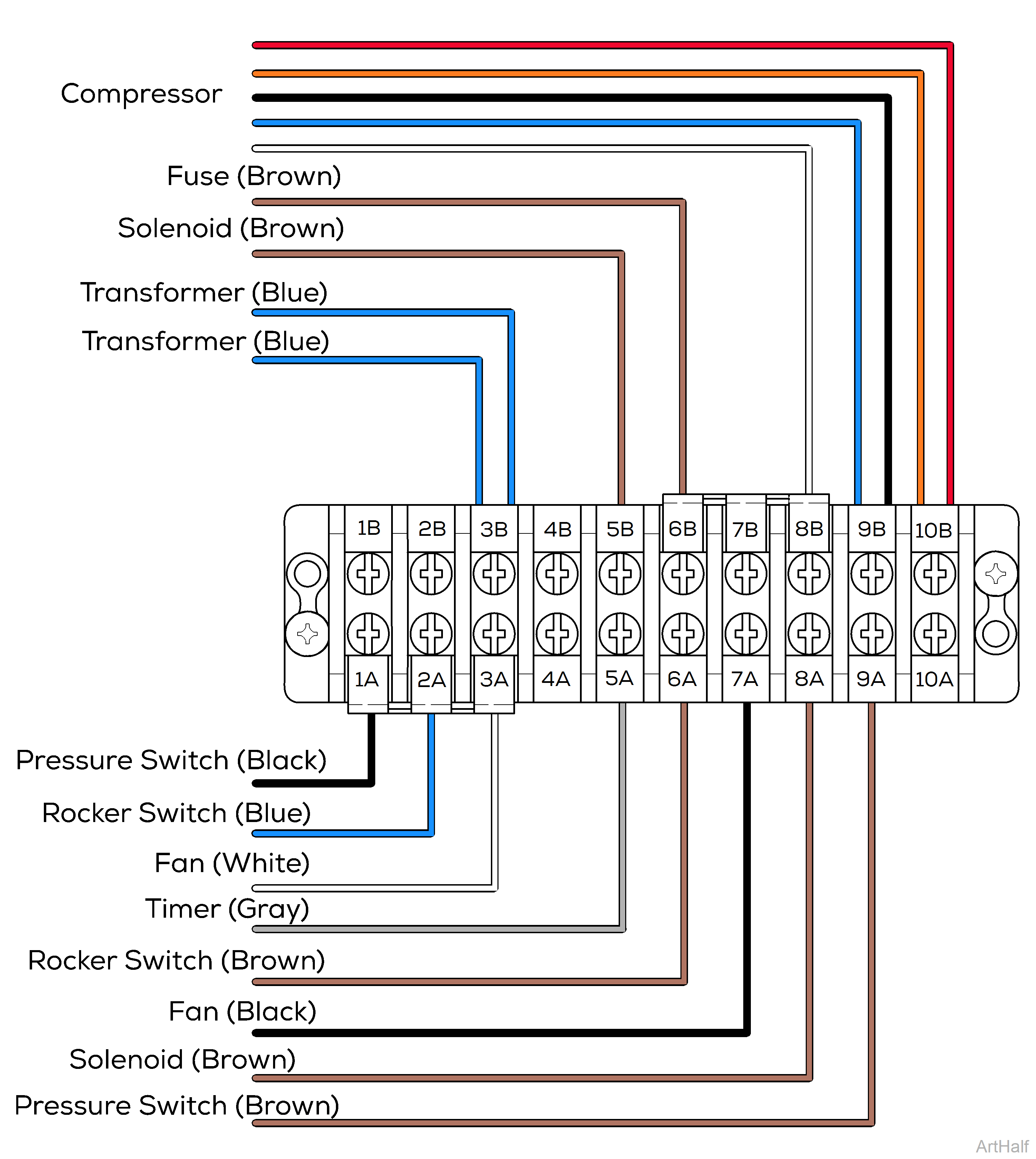

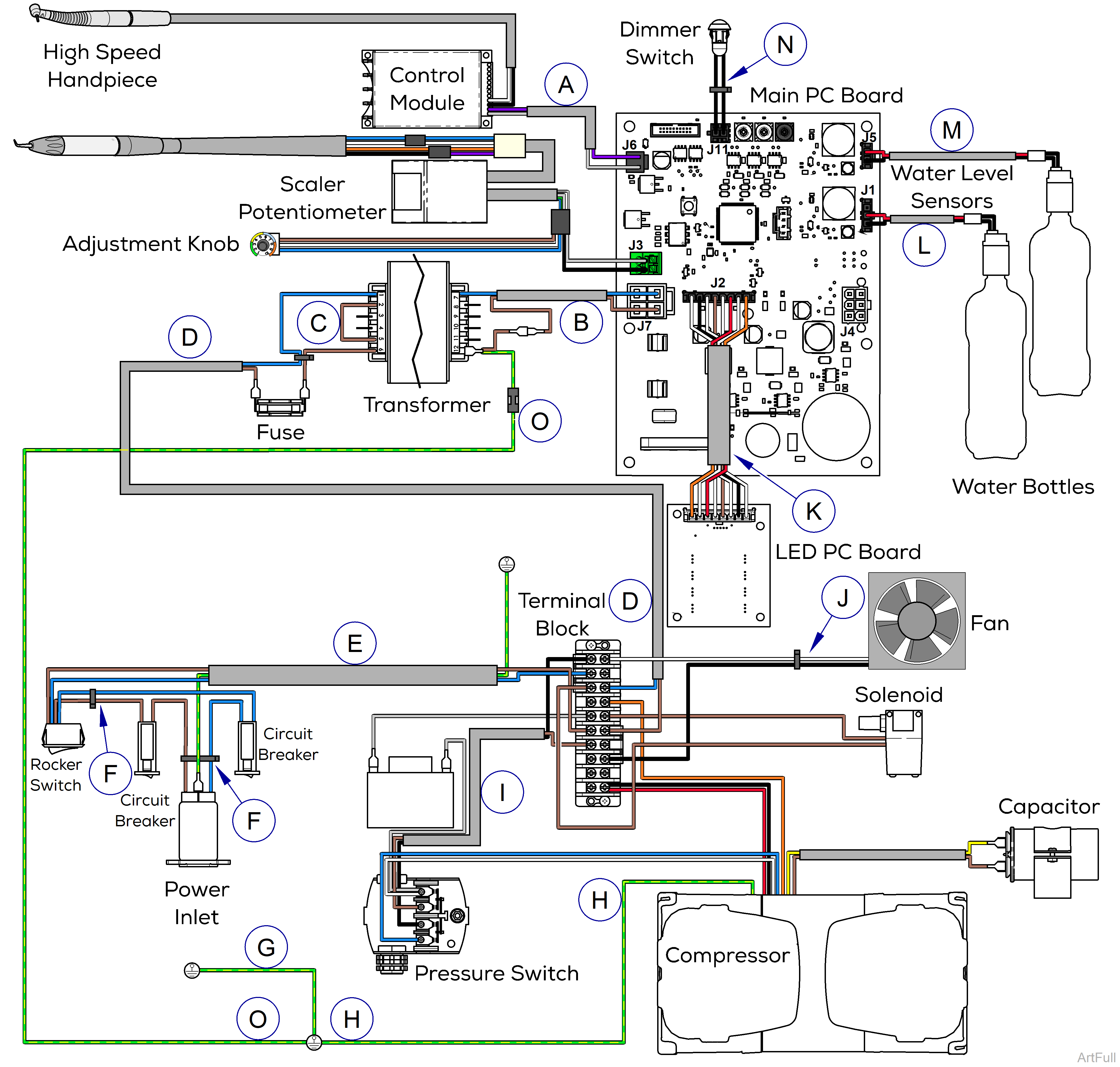

AH9000 Mobile Delivery Unit Wiring Diagram
Model Range AH9000-001, -002, -003, -005 (115V) Serial Number Range: VA2200 to Present
|
Model |
AH9000-001, -002, -003 and -005 |
| Serial Number |
VA2200 to Present |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-11530-00 |
Sunlight Control Module to Main PC Board (J6) (Purple and Gray) |
|
B |
015-11525-00 |
Transformer to Main PC Board (J7) (Blue and Brown) |
|
C |
015-11846-00 | Transformer to Fuse (Brown) |
|
D |
015-11516-00 | Transformer and Fuse to Treminal Block (Blue and Brown) |
|
E |
015-11512-00 | Rocker Switch to Terminal Block (Blue, Brown and Green/Yellow Ground) |
|
F |
015-11514-00 | Breaker to Rocker Switch (Blue and Brown) |
|
G |
015-12278-00 | Fan Wires to Terminal Block (Black and White) |
|
H |
015-11520-00 | Ground from Delivery System to Base Plate (Green/Yellow) |
|
I |
015-11519-00 | Ground from Compressor to Base Plate (Green/Yellow) |
|
J |
015-11515-00 | Pressure Switch to Terminal Block (Black and Brown) |
|
K |
015-11529-00 | LED PC Board to Main PC Board (J2) |
|
L |
015-11985-00 | Water Level Sensor 2 to Main PC Board (J1) |
|
M |
015-11984-00 | Water Level Sensor 1 to Main PC Board (J5) |
|
N |
015-11903-00 | Dimmer Switch to Main PC Board (J11) (Black) |
|
O |
015-12348-00 | Functional Ground Tie Harness (Green/Yellow and Brown) |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||

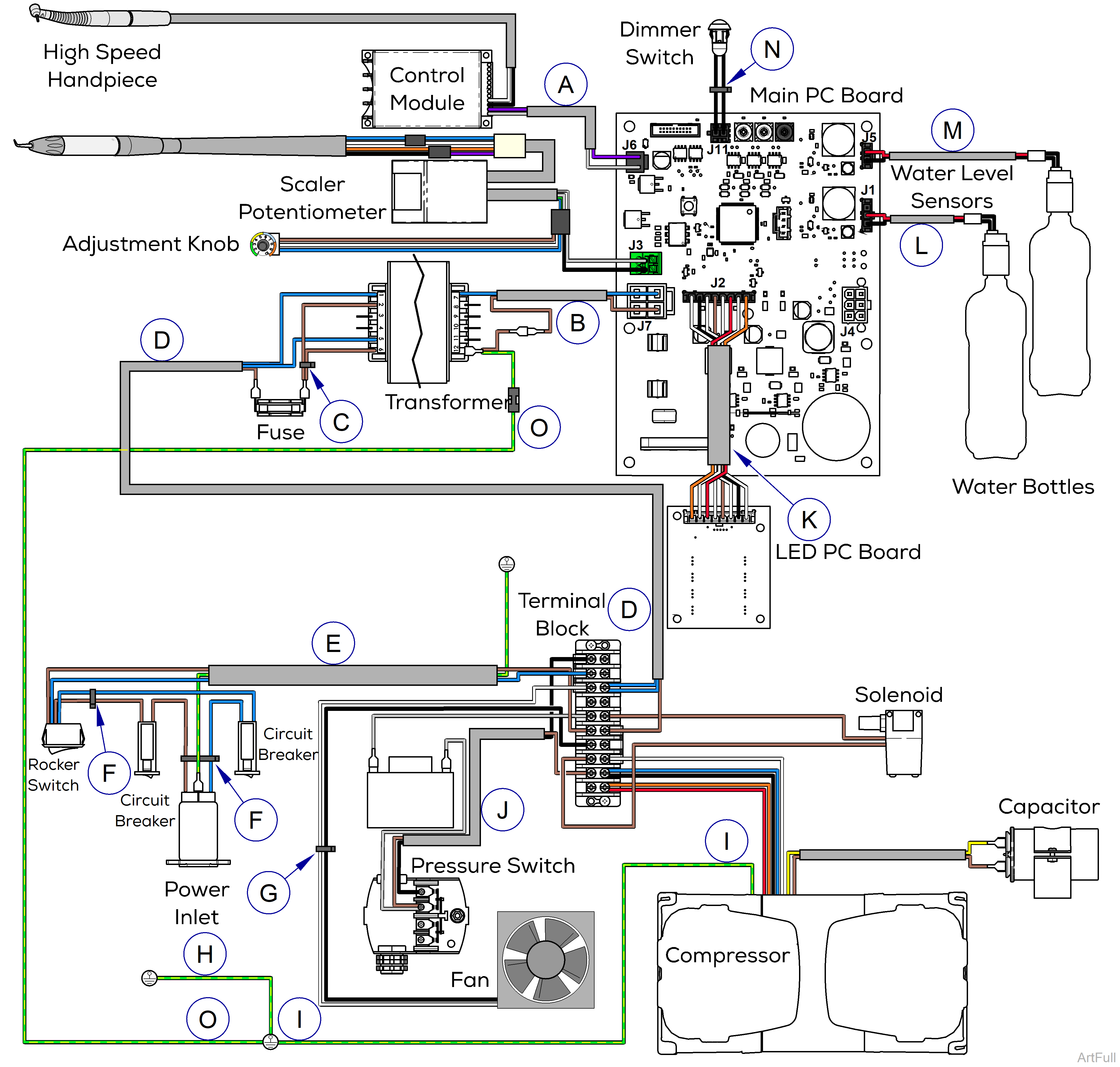

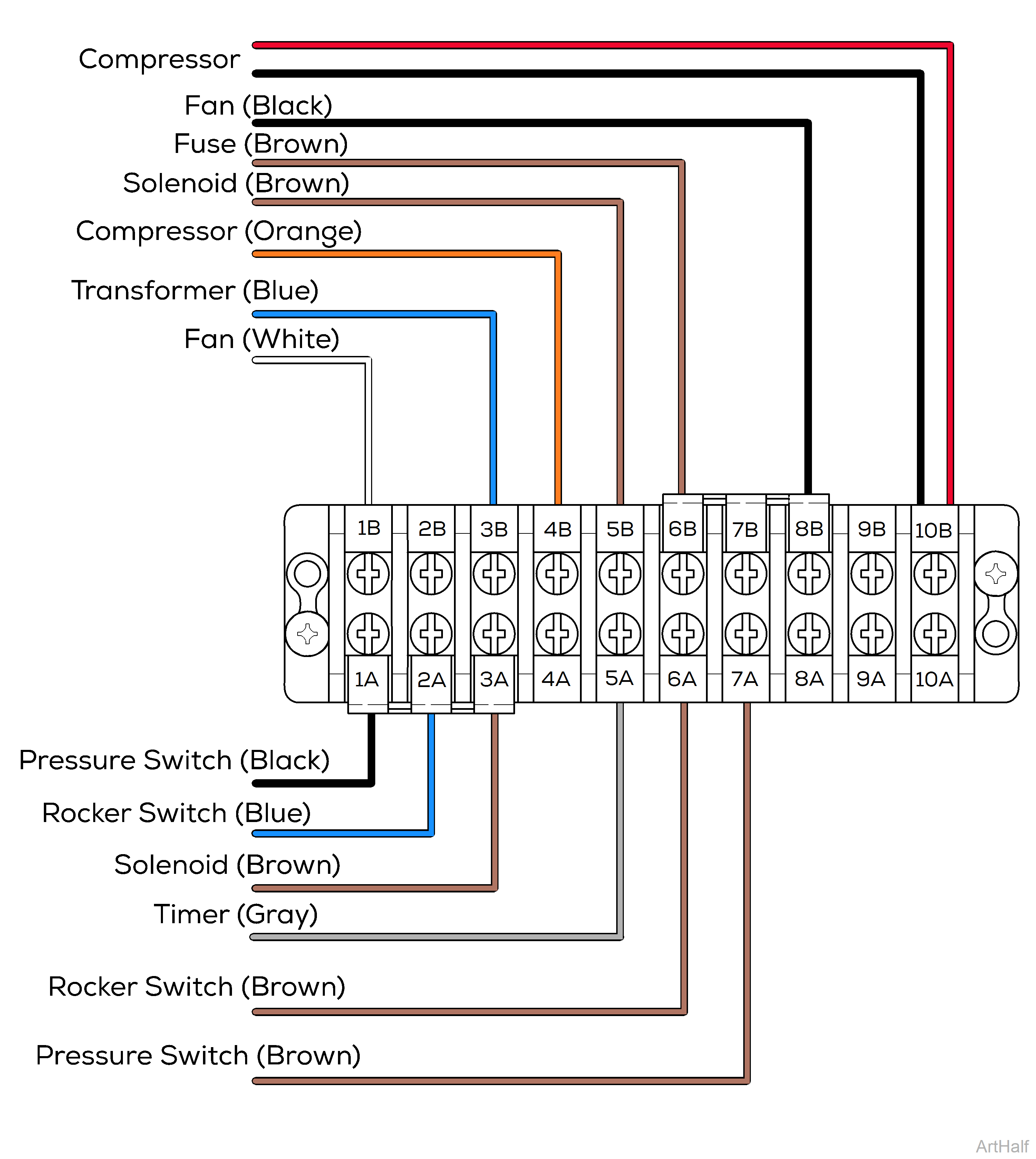

Model Range AH9000-004 (230V)Serial Number Range: VA2200 to Present
|
Model |
AH9000-004 |
| Serial Number | VA2200 to Present |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-11530-00 |
Sunlight Control Module to Main PC Board (J6) (Purple and Gray) |
|
B |
015-11525-00 |
Transformer to Main PC Board (J7) (Blue and Brown) |
|
C |
015-11849-00 | Transformer Jumper (Brown) |
|
D |
015-11848-00 | Transformer and Fuse to Treminal Block (Blue and Brown) |
|
E |
015-11512-00 | Rocker Switch to Terminal Block (Blue, Brown and Green/Yellow Ground) |
|
F |
015-11514-00 | Breaker to Rocker Switch (Blue and Brown) |
|
G |
015-11520-00 | Ground from Delivery System to Base Plate (Green/Yellow) |
|
H |
015-11519-00 | Ground from Compressor to Base Plate (Green/Yellow) |
|
I |
015-11515-00 | Pressure Switch to Terminal Block (Black and Brown) |
|
J |
015-12278-00 | Fan Wires to Terminal Block (Black and White) |
|
K |
015-11529-00 | LED PC Board to Main PC Board (J2) |
|
L |
015-11985-00 | Water Level Sensor 2 to Main PC Board (J1) |
|
M |
015-11984-00 | Water Level Sensor 1 to Main PC Board (J5) |
|
N |
015-11903-00 | Dimmer Switch to Main PC Board (J11) (Black) |
|
O |
015-12348-00 | Functional Ground Tie Harness (Green/Yellow and Brown) |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
