AH9000 Mobile Delivery Unit Compartments Access Procedures
Caution
Power must be turned off when opening doors or panels.

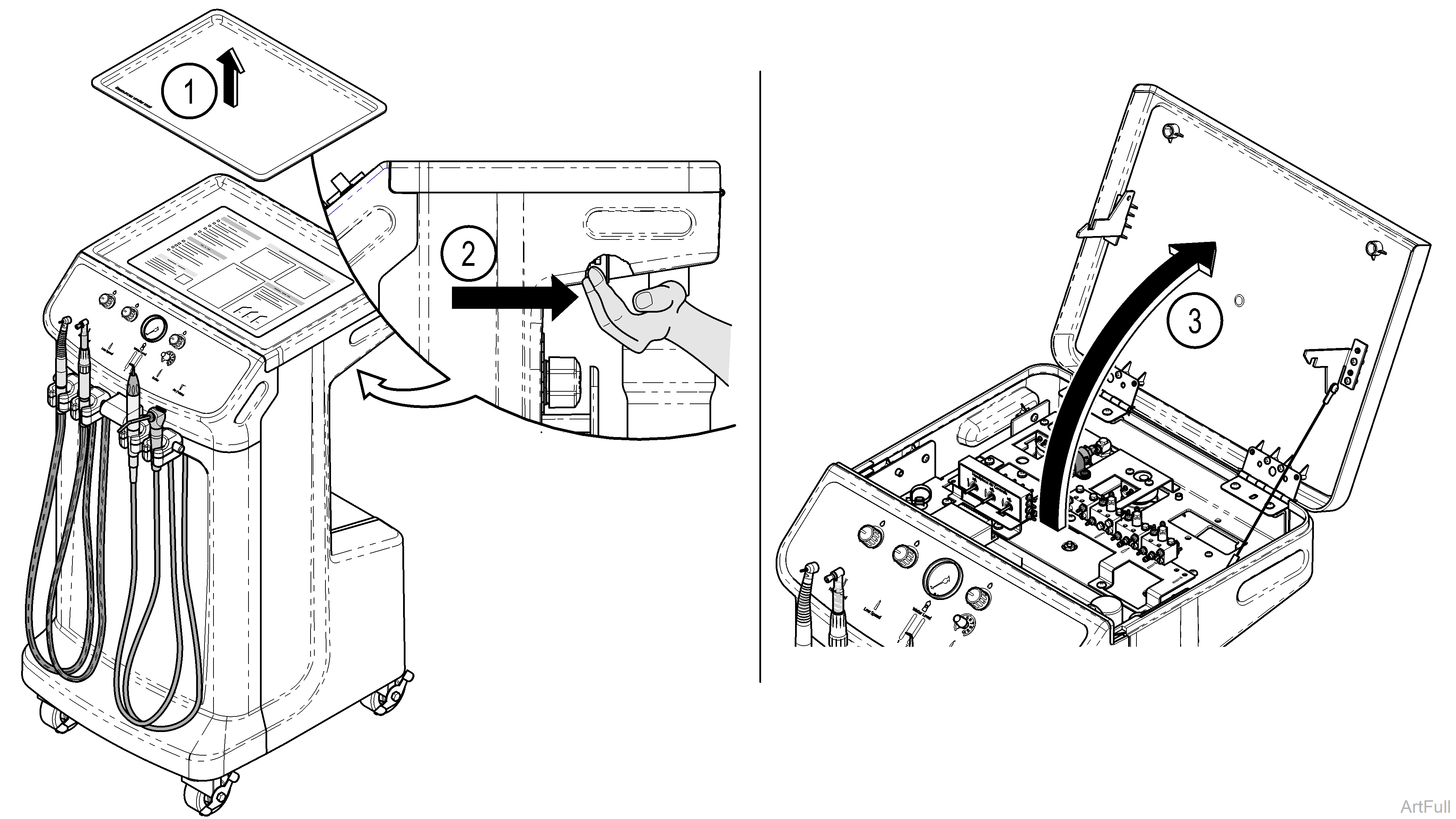

Upper Compartment
1.Remove mat from lid.
2.Move latch toward back of delivery system.
3.Lift lid up on hinges.

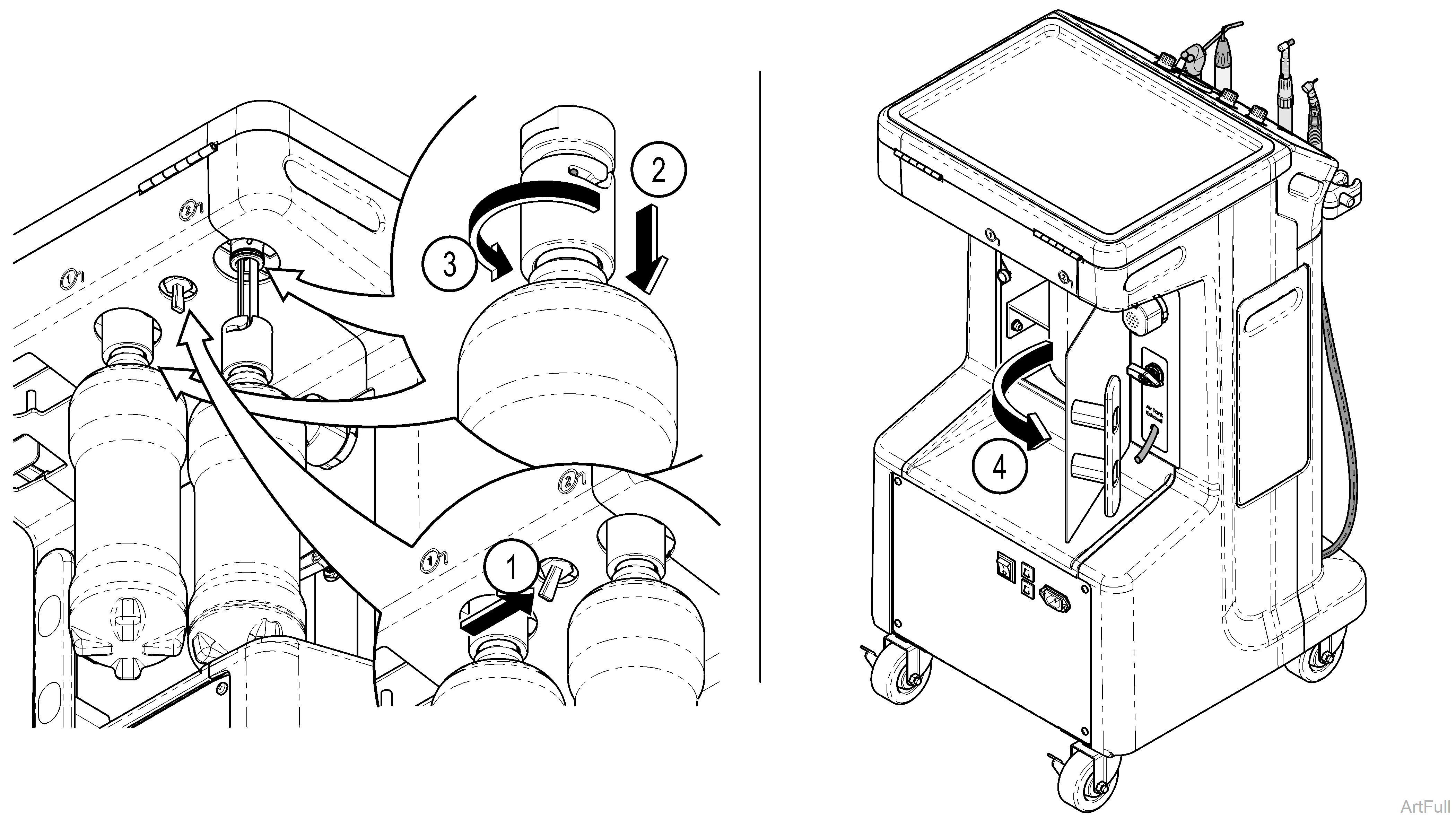

Middle Compartment
1.Move toggle switch to middle to release pressure from water bottles.
2.Remove water bottles.
3.Open access door with handle.
Lower Compartment
1.Turn power off.
2.Unplug power cord.
3.Remove fasteners.
4.Slide motor out of delivery system.
