Asepsis 21® Delivery and International (Whip) Delivery - General Product and Service Information

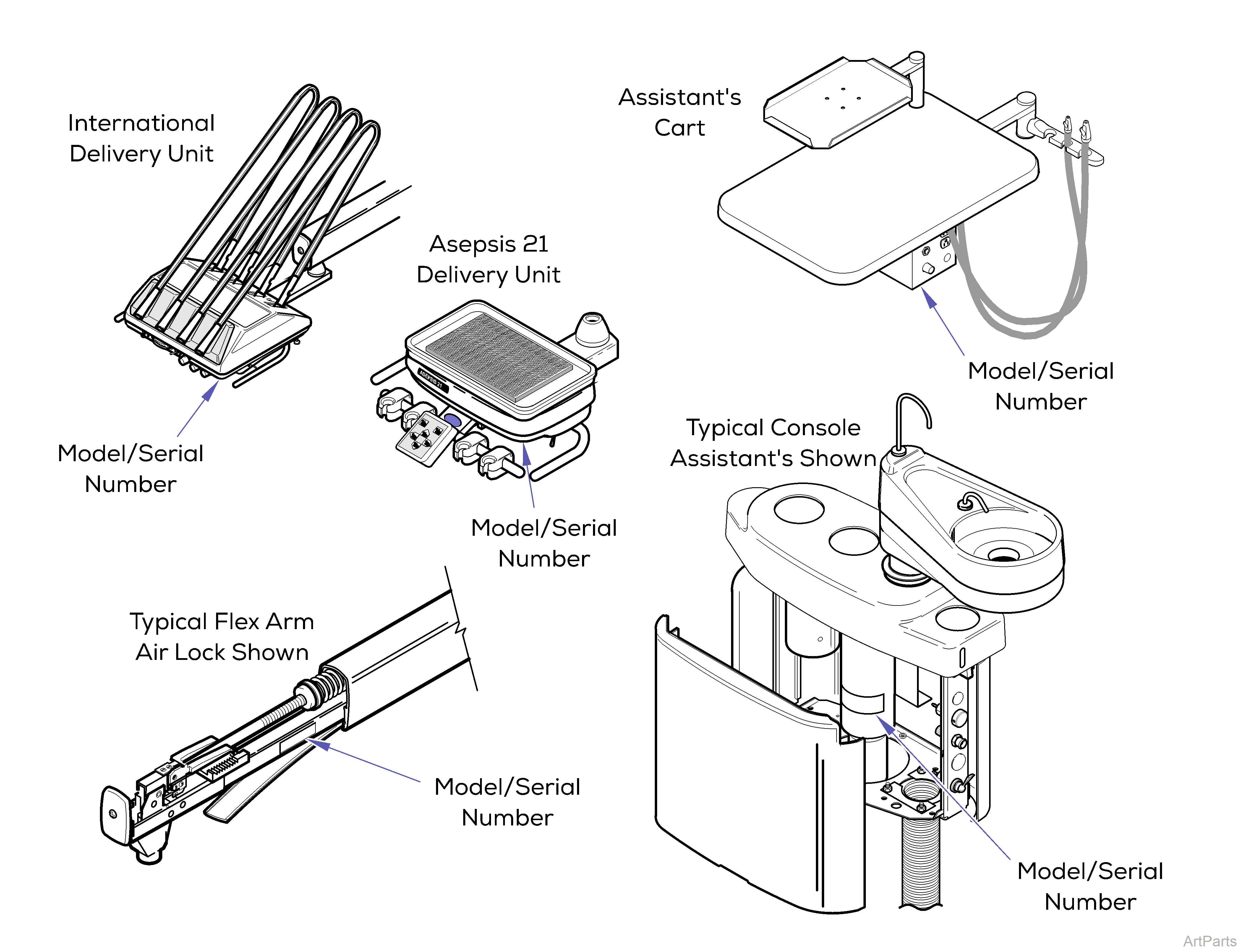

Delivery System Components - Model / Serial Number Locations

Delivery System Components - Model / Serial Number Locations

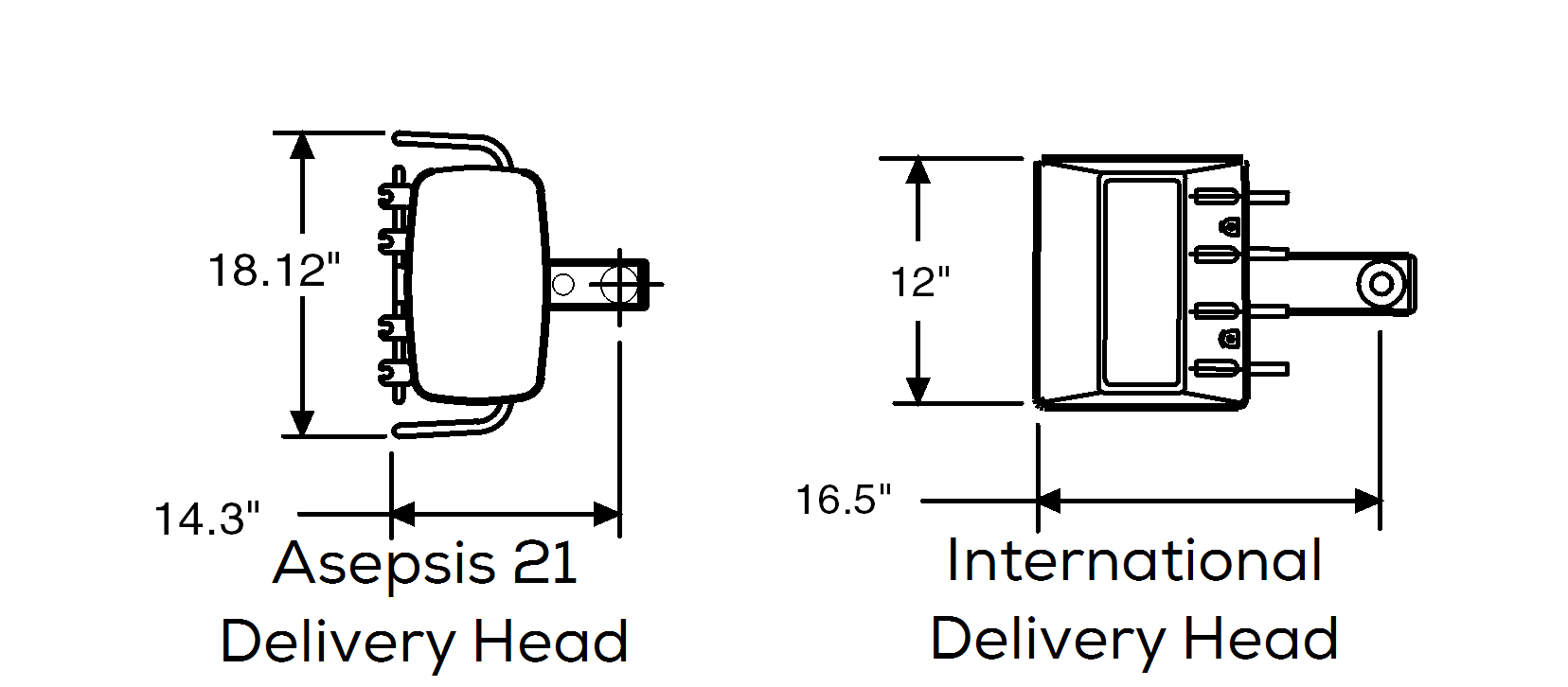

Delivery Head Dimensions

Delivery Head Dimensions

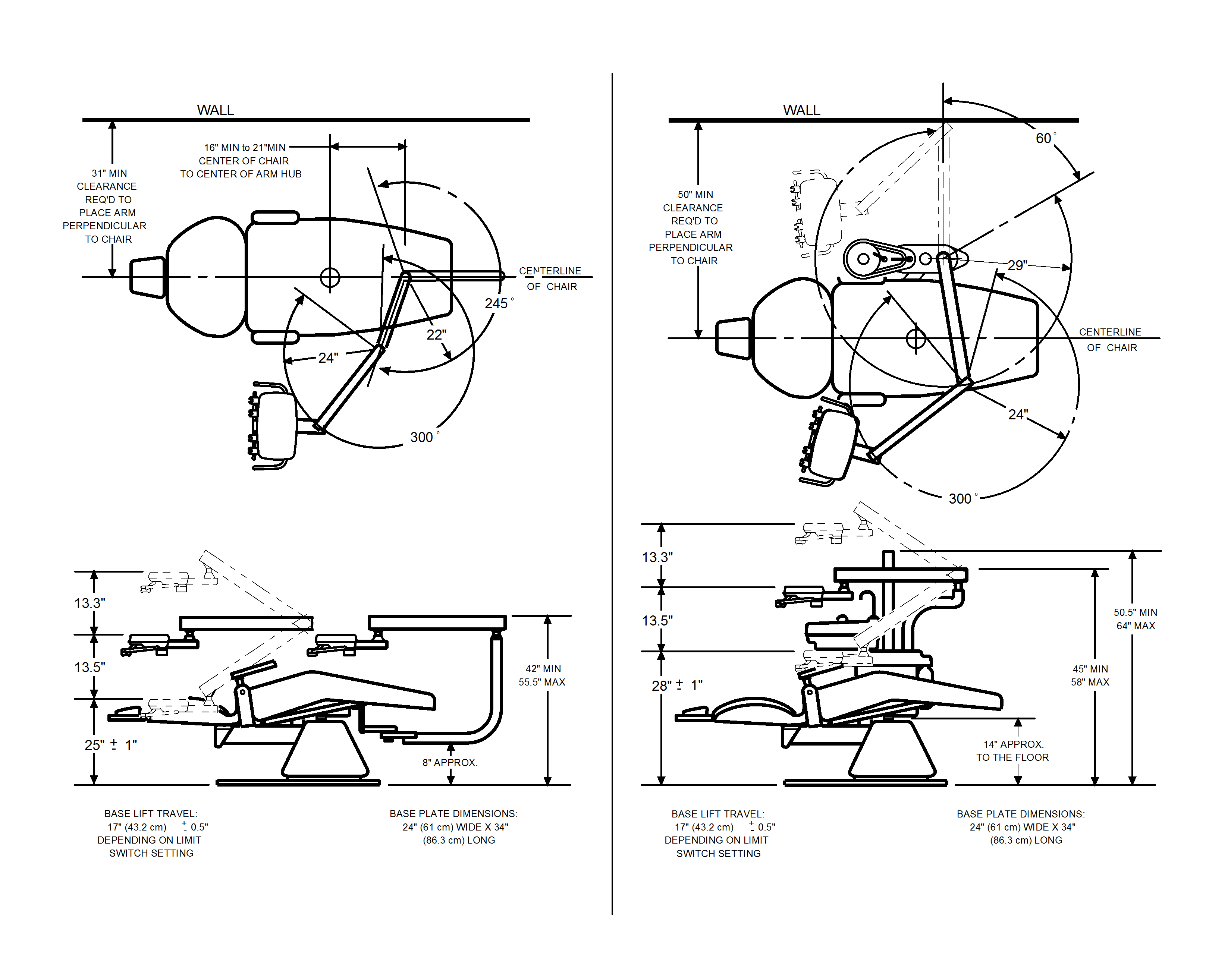

Chair Mounted Unit Dimensions

Chair Mounted Unit Dimensions

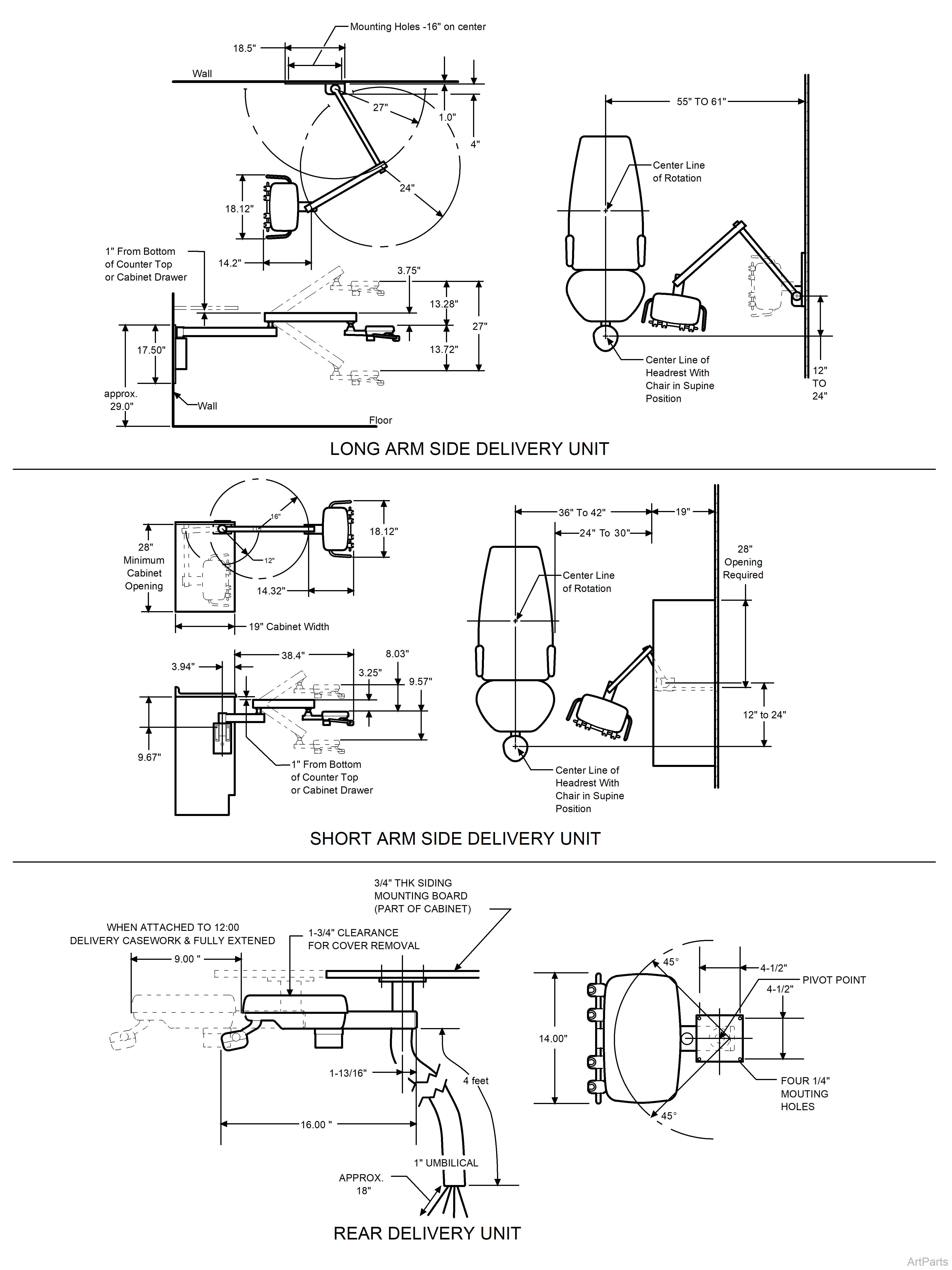

Side / Rear Delivery Unit Dimensions

The following standard torque specifications apply to the hardware used on the unit unless otherwise noted in the service procedures or parts illustrations.

Torque Specifications

Hardware Size

Torque Values

#6

11 to 21 inch-lbs. (1.2 to 2.3 N•M)

#8

20 to 30 inch-lbs. (2.2 to 3.3 N•M)

#10

32 to 42 inch-lbs. (3.6 to 4.8 N•M)

1/4 inch

75 to 85 inch-lbs. (8.5 to 9.6 N•M)

5/16 inch

18 to 22 ft.-lbs. (24.4 to 29.8 N•M)

3/8 inch

31 to 35 ft.-lbs. (42.0 to 47.5 N•M)

1/2 inch

50 to 60 ft.-lbs. (67.8 to 81.4 N•M)

The Table below lists all of the special tools needed to repair the delivery system, how to obtain the special tools, and the purpose of each special tool.

Description of Special Tool

Manufacturer’s
Name / Address / Phone

Manufacturer’s
Part Number

Purpose of Special Tool

Multimeter

Commercially Available

Any Type

Used to perform continuity and voltage checks.

Torque Wrench

Commercially Available

Any Type

Used to tighten nuts or screws to specified values.
