Asepsis 21® Delivery and International (Whip) Delivery Typical Tubing Disconnection / Connection Test and Repair

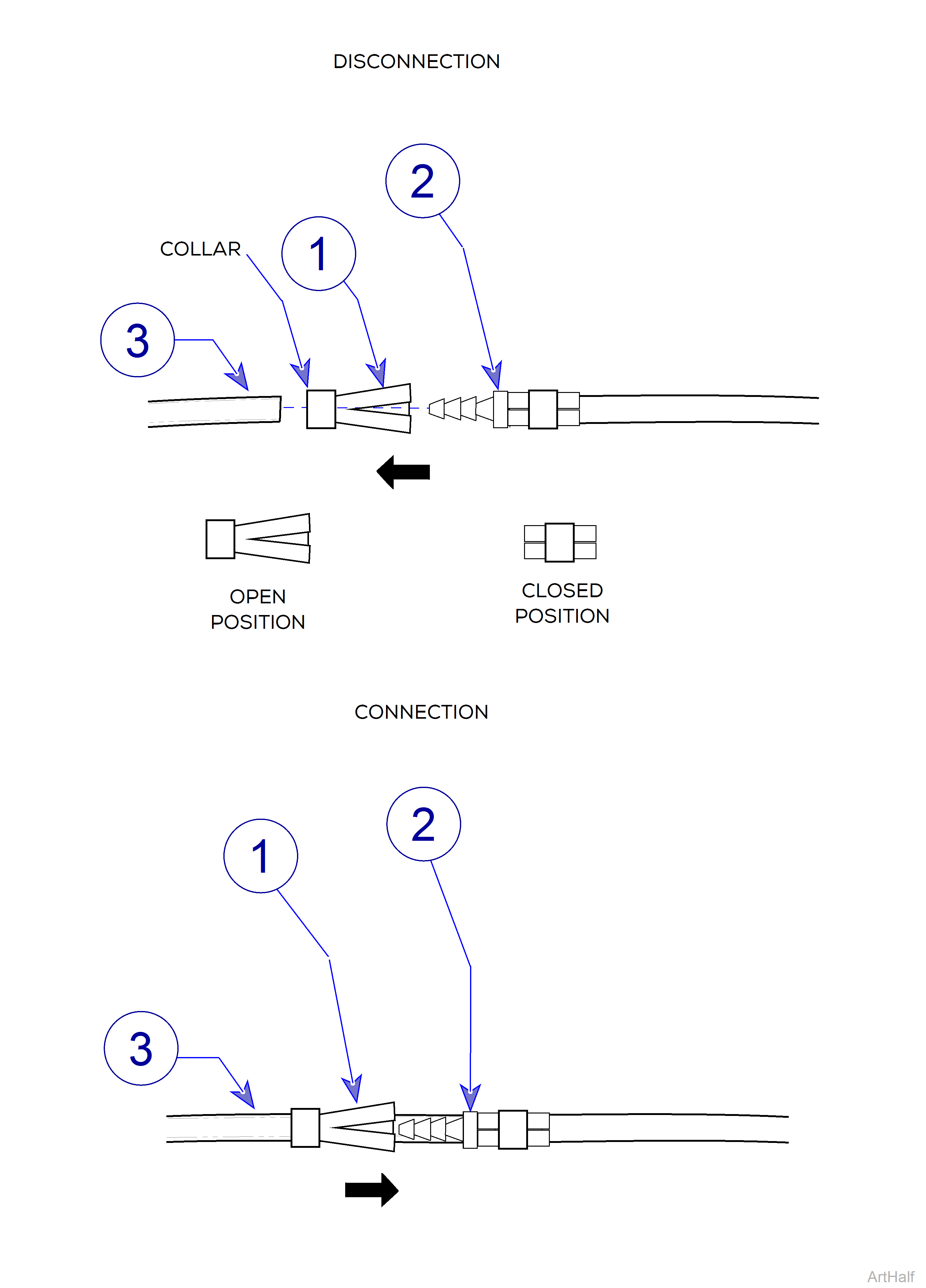

Disconnection

1.Slide collar of uni-clamp (1) away from fitting (2) as shown.

2.Disconnect tubing (3) by gently pulling away from fitting (2).

3.Remove uni-clamp (1) from tubing (3) and set aside for later use.

Connection

1.Slide collar of uni-clamp (1) so that it is in the “open” position as shown.

2.Slide uni-clamp (1) (collar end first) onto tubing (3).

3.Push tubing (3) onto fitting (2). Then, slide uni-clamp (1) forward over the fitting.

4.Slide collar of uni-clamp (1) toward fitting (2) until it is in the “closed” position.
