Asepsis 21® Delivery and International (Whip) Delivery Head Cover Removal Test and Repair

Asepsis 21 Delivery Head Cover

Asepsis 21® Delivery Head Cover

Removal

1.Disable unit for repair.

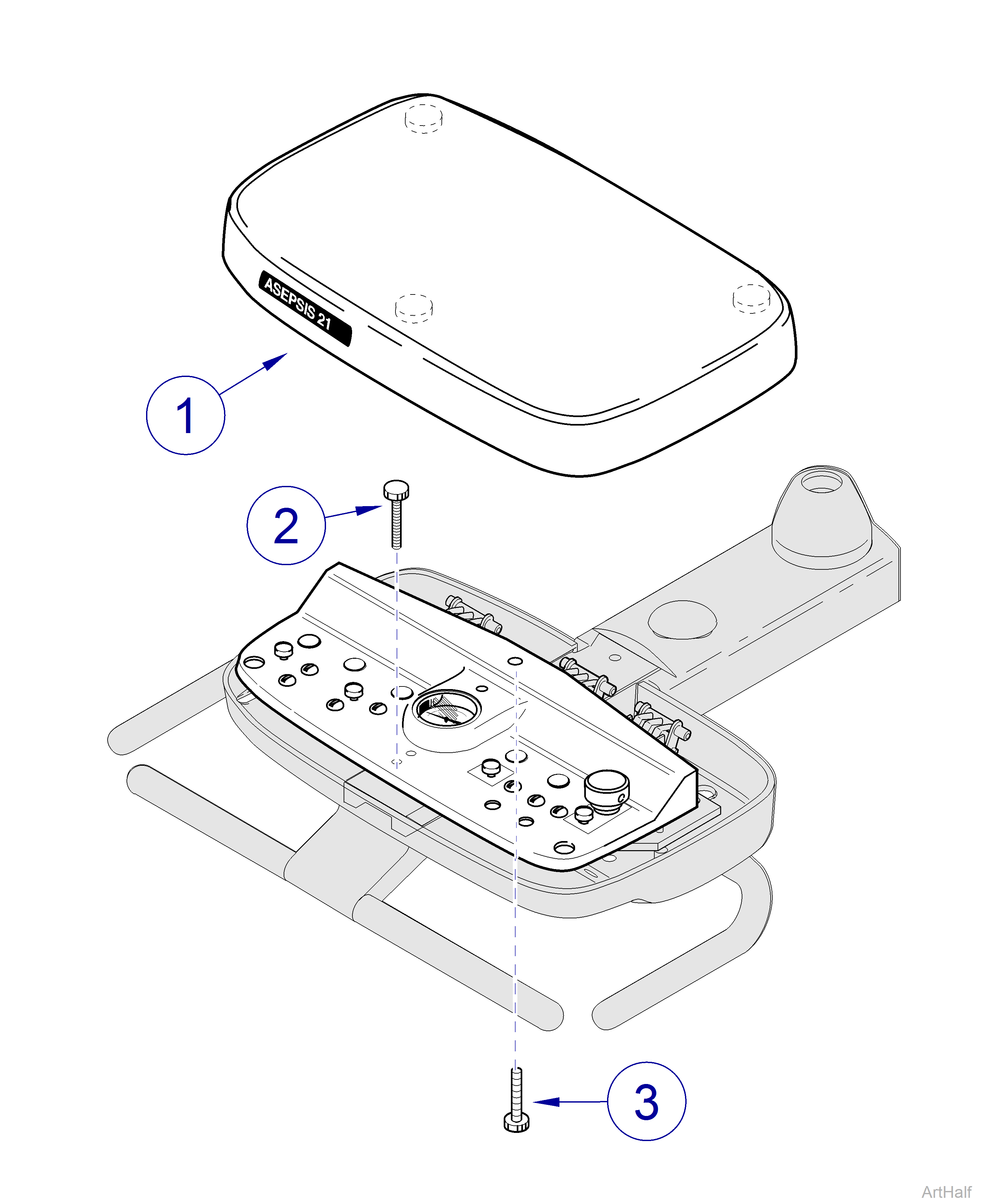

2.Remove outer cover (1). This cover is held on with magnets. No tools are required.

Equipment Alert

When performing the following step, do not attempt to completely remove the inner cover. The adjustment valves on the inner cover are attached to the tubing. Failure to comply could result in accidental disconnection or damage to tubing.

3.Remove thumbscrew (2) and thumbscrew (3) from delivery head assembly. Then, partially separate inner cover (4) to access internal components.

International (Whip) Delivery Unit Head Cover

International (Whip) Delivery Head Cover

Removal

1.Disable unit for repair.

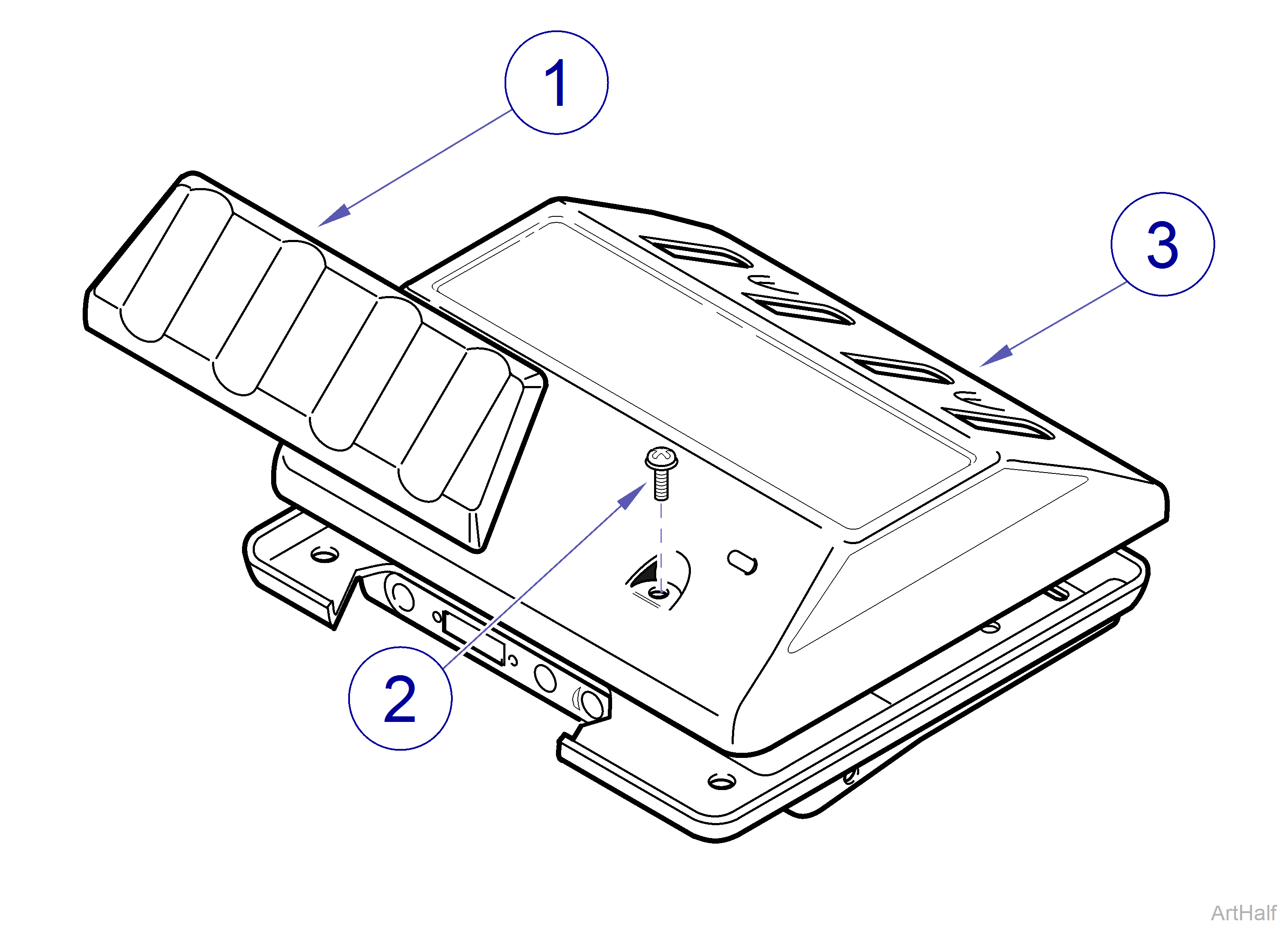

2.Remove instrument pad (1). The instrument pad is pressure fit onto two studs. No tools are required.

3.Remove four screws (2) and delivery head cover (3).
