Asepsis 21® Delivery and International (Whip) Delivery Carts and Side / Rear Delivery Systems Test and Repair

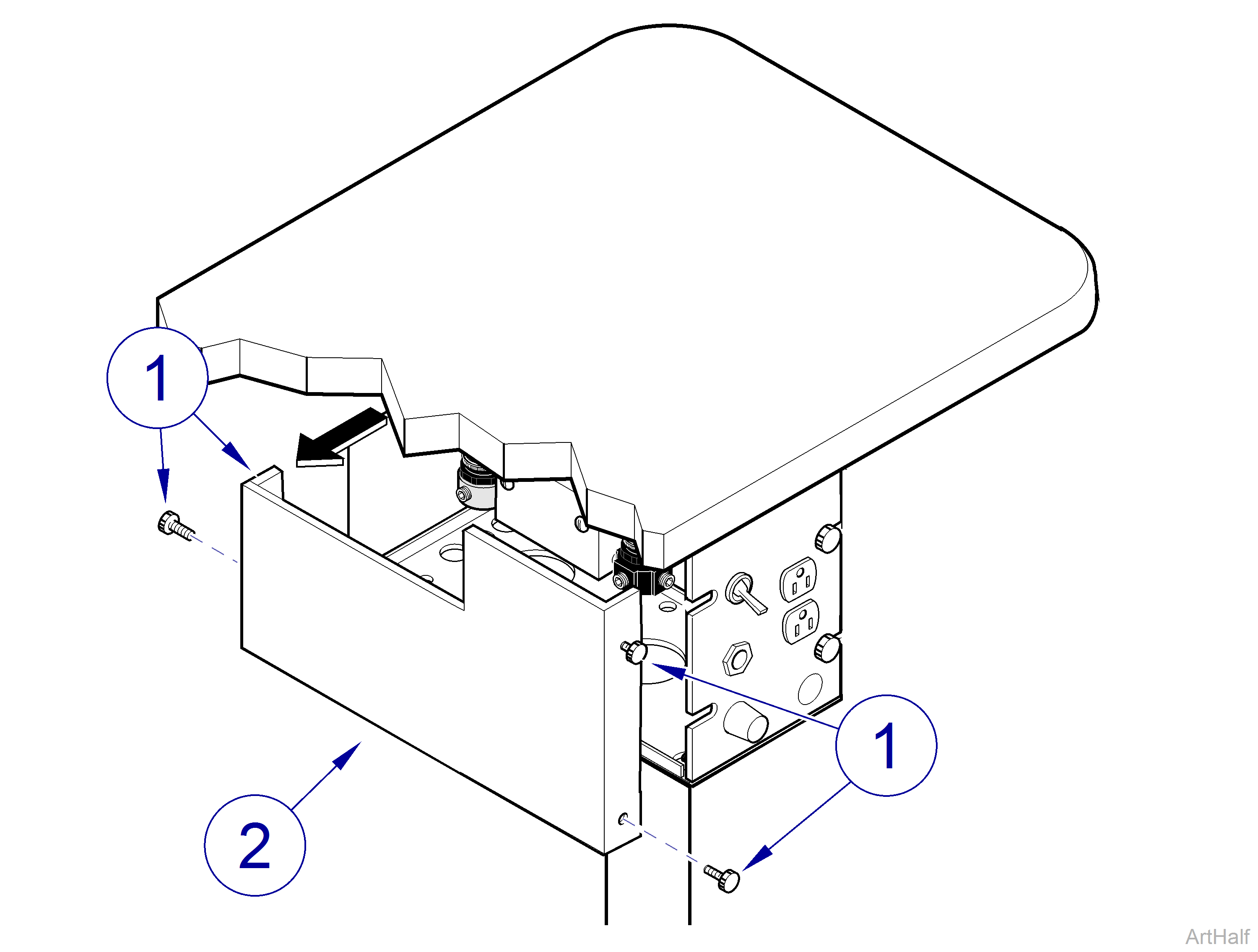

Asepsis 21 Duo / Assistant’s Housing Cover

Asepsis 21 Duo / Assistant’s Housing Cover

Removal

1.Disable unit for repair.

2.Loosen four thumbscrews (1). Then, remove side panel (2).

3.Repeat for opposite side if necessary.

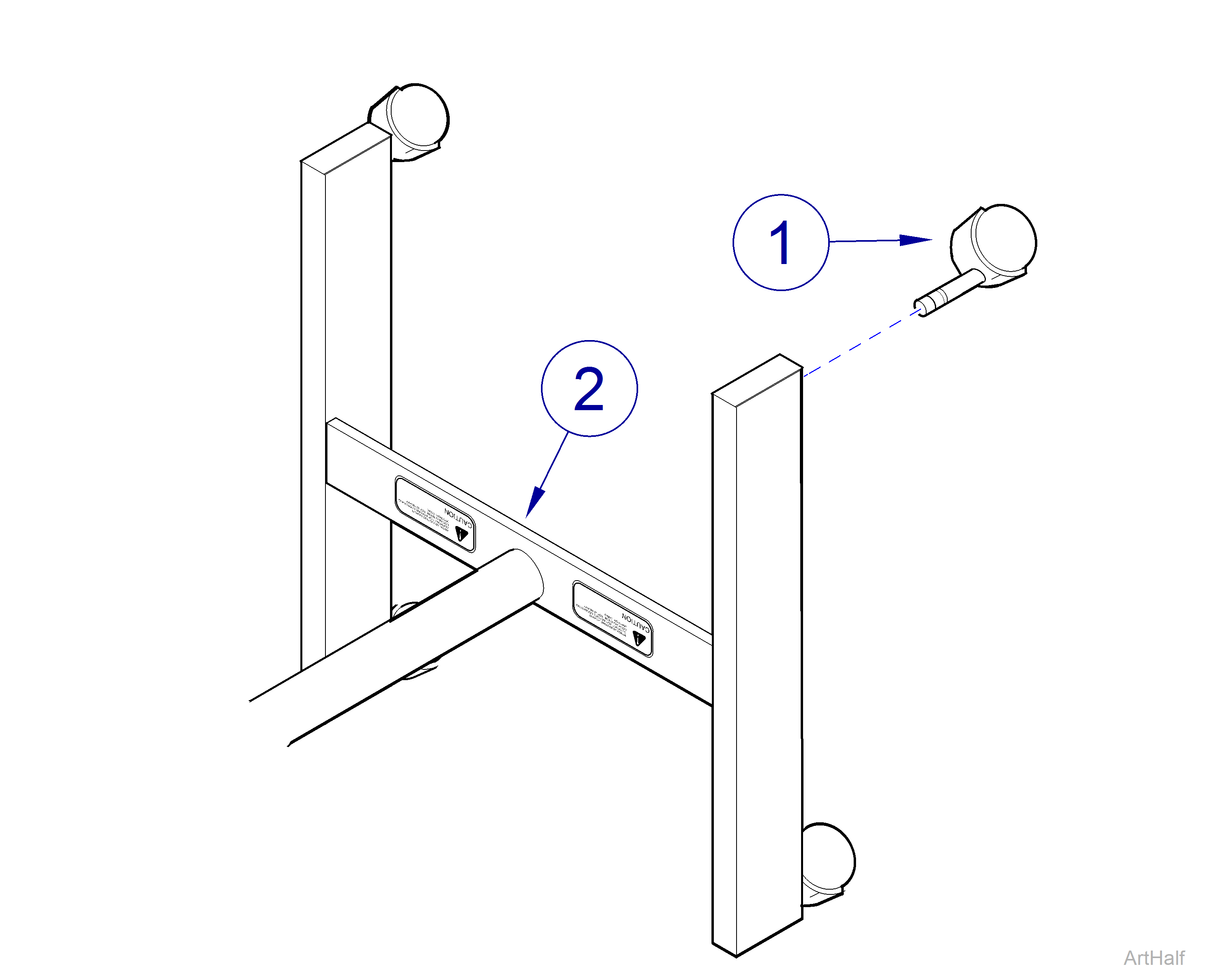

Cart Assembly Caster

Cart Assembly Caster

1.Disable unit for repair.

2.Carefully lay cart on its side.

3.Remove caster (1) from base (2). Casters are pressure fit. No tools are required.

1.Insert stem of caster (1) into base (2) and apply pressure until caster snaps into place.
