Asepsis 21® Delivery and International (Whip) Delivery Junction Boxes and Typical Valve Block Connections Test and Repair

Junction Box Cover

Junction Box Cover



1.Disable unit for repair.

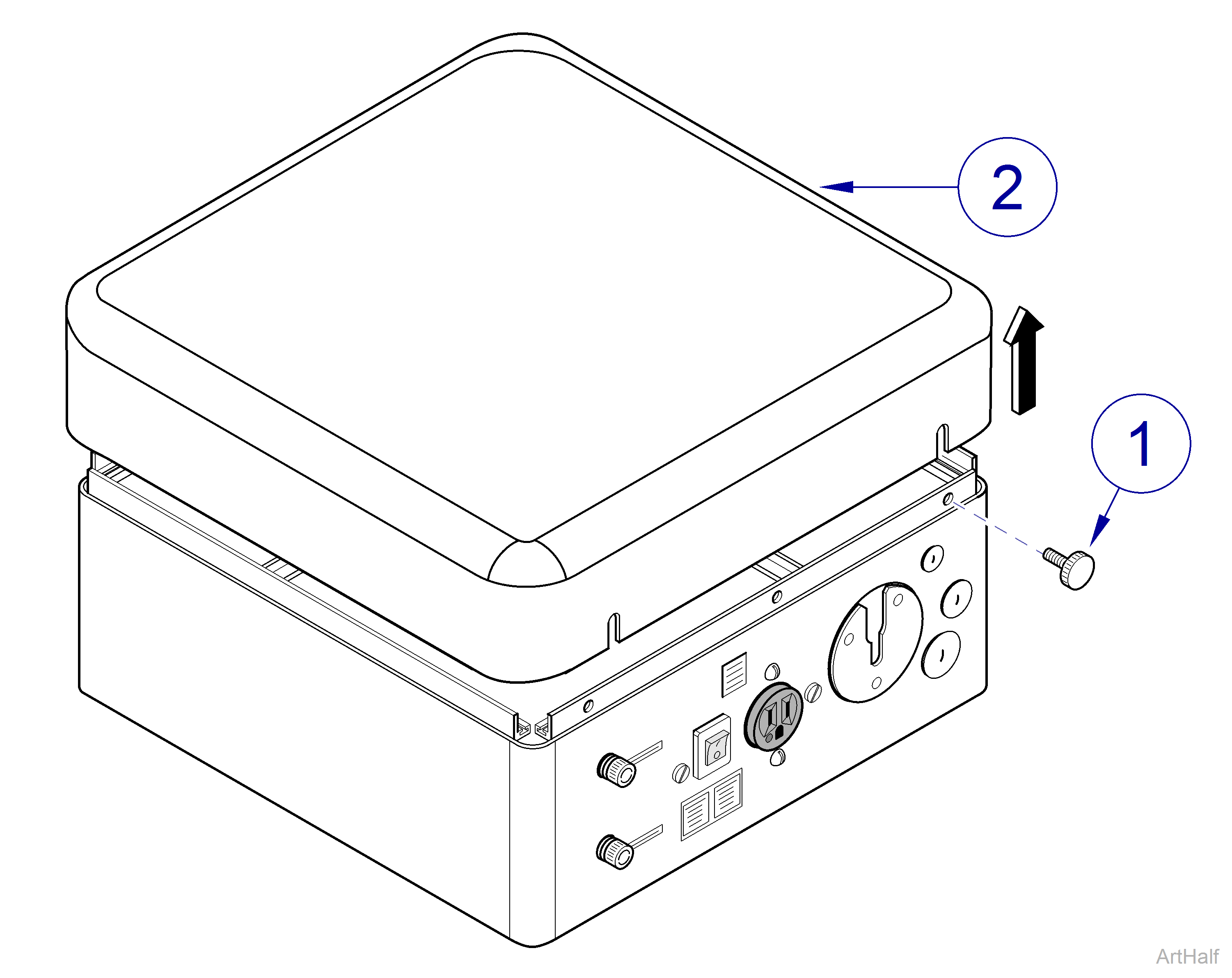

2.Remove four thumbscrews (1) and junction box cover (2).

Typical Valve Block

Typical Valve Block

1.Disable unit for repair.

2.Remove junction box cover.

Depending upon unit configuration, the number of tubing connections at the valve block may vary. Disconnect all tubing from the valve block when performing the following step.

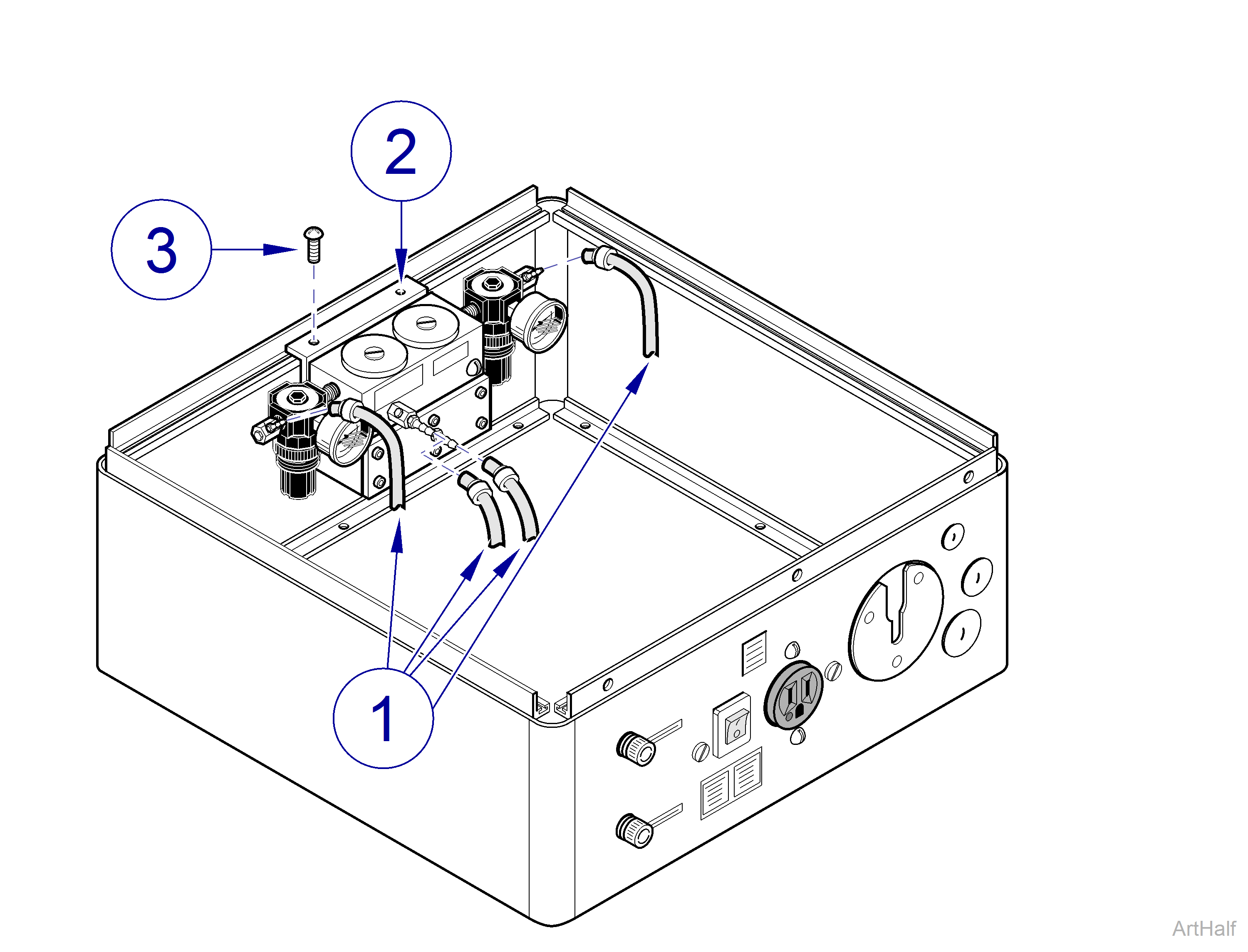

3.Disconnect all tubing (1) from valve block assembly (2).

4.Remove two screws (3) and valve block assembly (2) from junction box.
