Procenter and International (Whip) Delivery Units, Flex Arm Covers / End Caps (24”) 029-2428-00
Serial Number Range: NV1000 thru NV1493
and PN1000 thru PN1212
|
Mounted To |
Ultra / Elevance Chairs |
| Serial Number |
NV1000 thru NV1493 and PN1000 thru PN1212 |

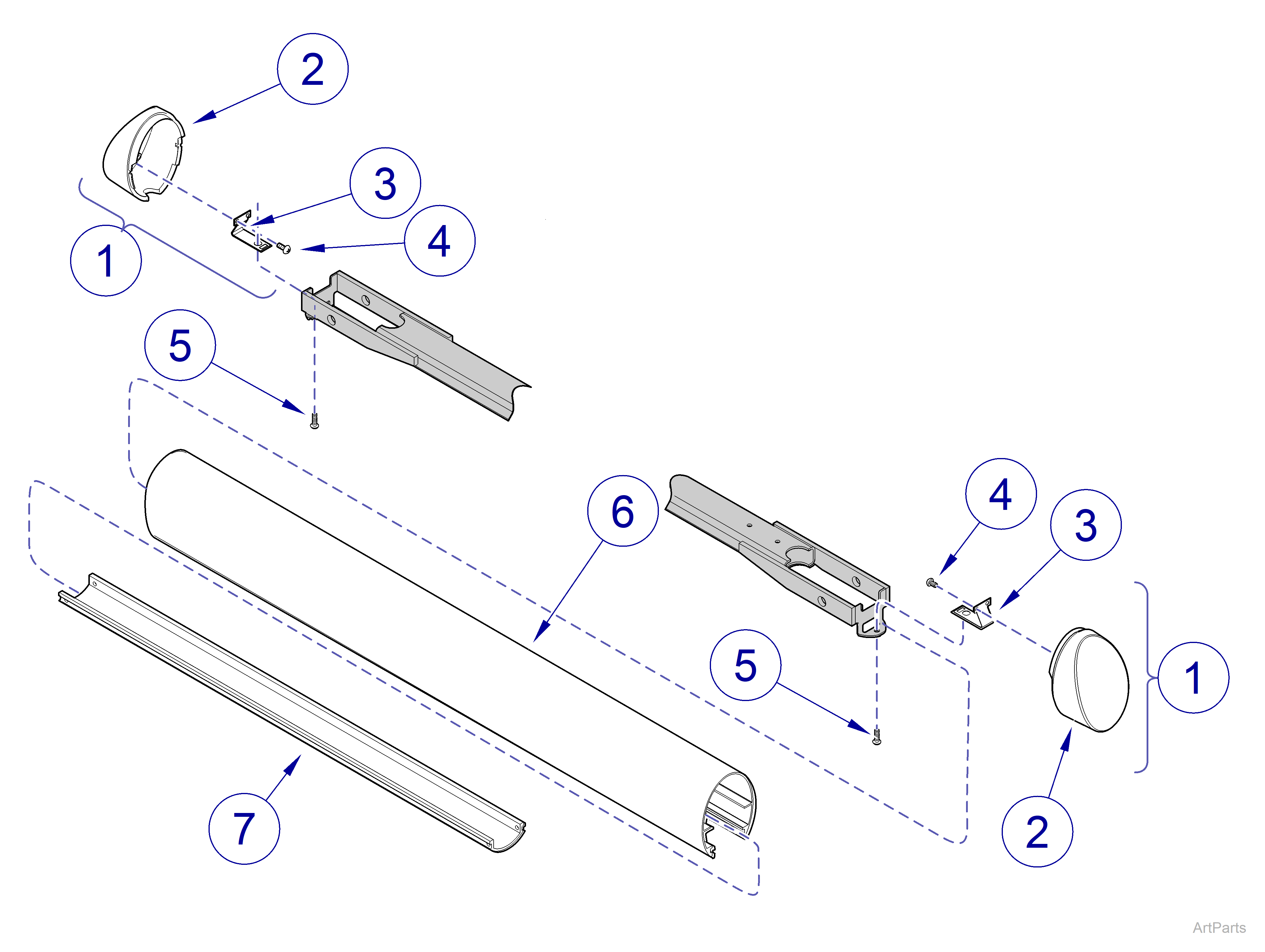

| Procenter and International (Whip) Delivery Units, Flex Arm Covers / End Caps (24”) 029-2428-00 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1021-00 | End Cap Kit - Includes Items 2 thru 5 | 2 |
|
2 |
053-1227-01 | End Cap | 1 |
|
3 |
050-7008-00 | End Cap Mounting Bracket | 1 |
|
4 |
042-0168-02 | Screw #6-32 x 1/4” | 2 |
|
5 |
040-0006-99 | Screw #6-32 x 1/2” | 1 |
|
6 |
021-0038-50 | Flex Arm Cover | 1 |
|
7 |
021-0039-50 | Bottom Cover | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: NV1494 thru Present, PK1042 thru Present, PN1213 thru Present, V2200 thru Present, RF1000 thru Present, and V2000 thru Present
|
Mounted To |
Ultra / Elevance Knight (Biltmore) Chairs | Wall / Cabinet Mtd. |
| Serial Number |
NV1494 thru Present, PK1042 thru Present, PN1213 thru Present, and V2200 thru Present |
RF1000 thru Present and V2000 thru Present |
| Procenter and International (Whip) Delivery Units, Flex Arm Covers / End Caps (24”) 029-2428-00 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1021-00 | End Cap Assembly - Includes item 2 | 2 |
|
2 |
040-0006-99 | Screw #6-32 x 3/4” | 1 |
|
3 |
021-0038-50 | Flex Arm Cover | 1 |
|
4 |
021-0039-50 | Bottom Cover | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
