Procenter and International (Whip) Delivery Units, Flex Arm Fixed Arm Post 029-2888-00 and 029-2428-00

Mounted To

 Ultra / Elevance Knight (Biltmore) Chairs Wall / Cabinet Mtd.
Serial Number NV1000 thru Present, PK1042 thru Present, PN1000 thru Present, and V2200 thru Present RF1000 thru Present and V2000 thru Present

Flex Arms for Procenter / International (Whip) Delivery Units - Fixed Arm Post

Procenter and International (Whip) Delivery Units, Flex Arm Fixed Arm Post

029-2428-00 and

029-2888-00

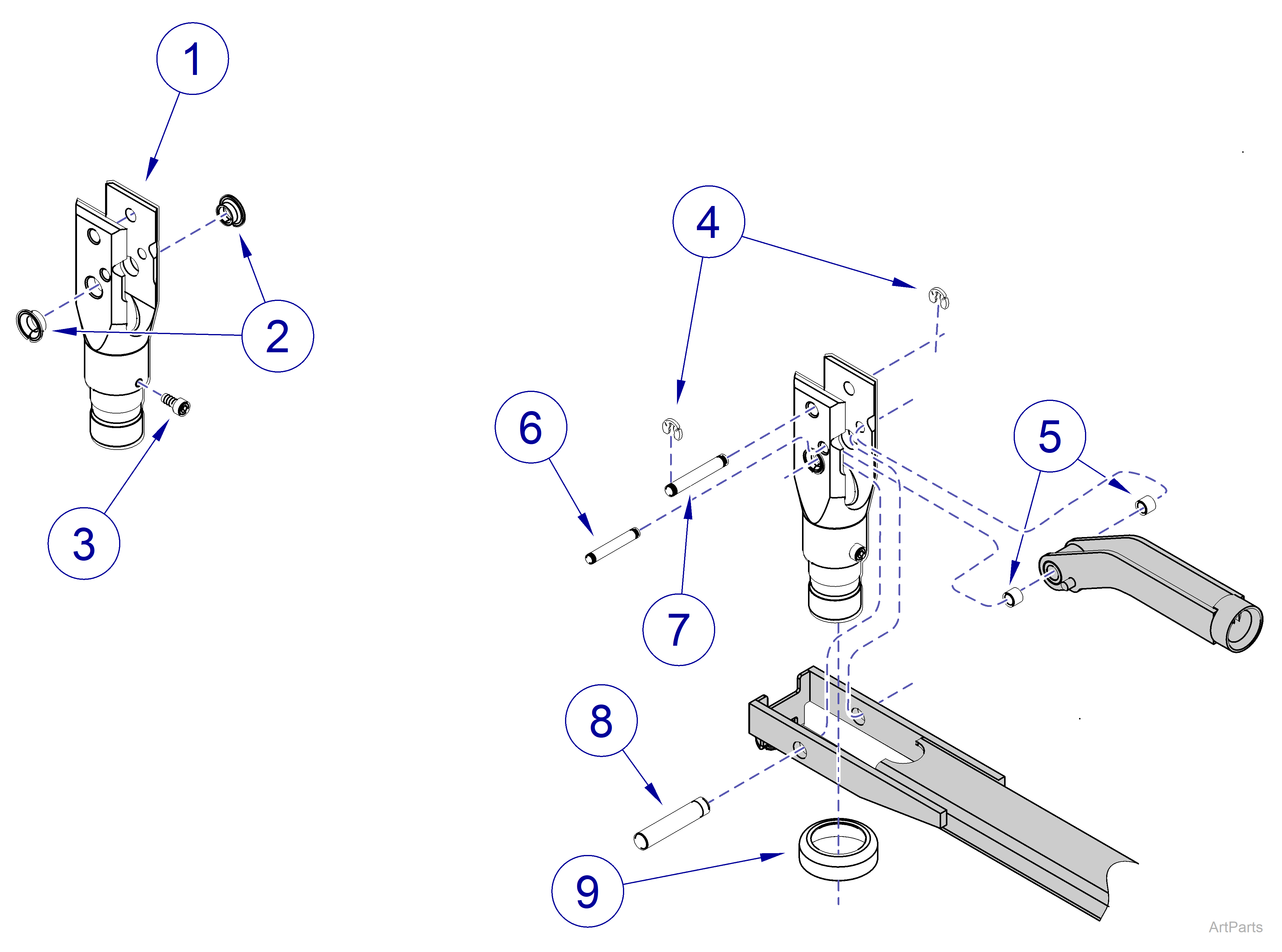

Item Part Number Description Qty

1

 052-0357-50 Flex Arm Fixed Mount 1

2

 016-1570-02 DP4 Flanged Bearings 2

3

 040-0010-87 Bolt 1

4

 042-0065-00 Klipring 2

5

 016-1569-01 Bushing 2

6

 057-0620-00 Knurled Pivot Pin 1

7

 057-0618-00 Clevis Pin 1

8

 057-0608-00 Flex Arm Pivot Pin 1

9

 053-1218-01 Joint Cover 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
