Elevance® Standard Delivery and Elevance® Continental-Style Delivery Sopro Camera Kits
Serial Number Range: V2200 Thru V1765598 and V1765599 Thru V2006606
|
Mounted To |
Elevance® Dental Chair | Elevance® Dental Chair |
| Power Supply Serial Number | V2200 Thru V1765598 | V1765599 Thru V2006606 |
| Power Supply Model | 153808 | 153941 |
No longer in production. Some service parts may not be available for this product.
Make both wire connections in one connector. Each connection can be either color.

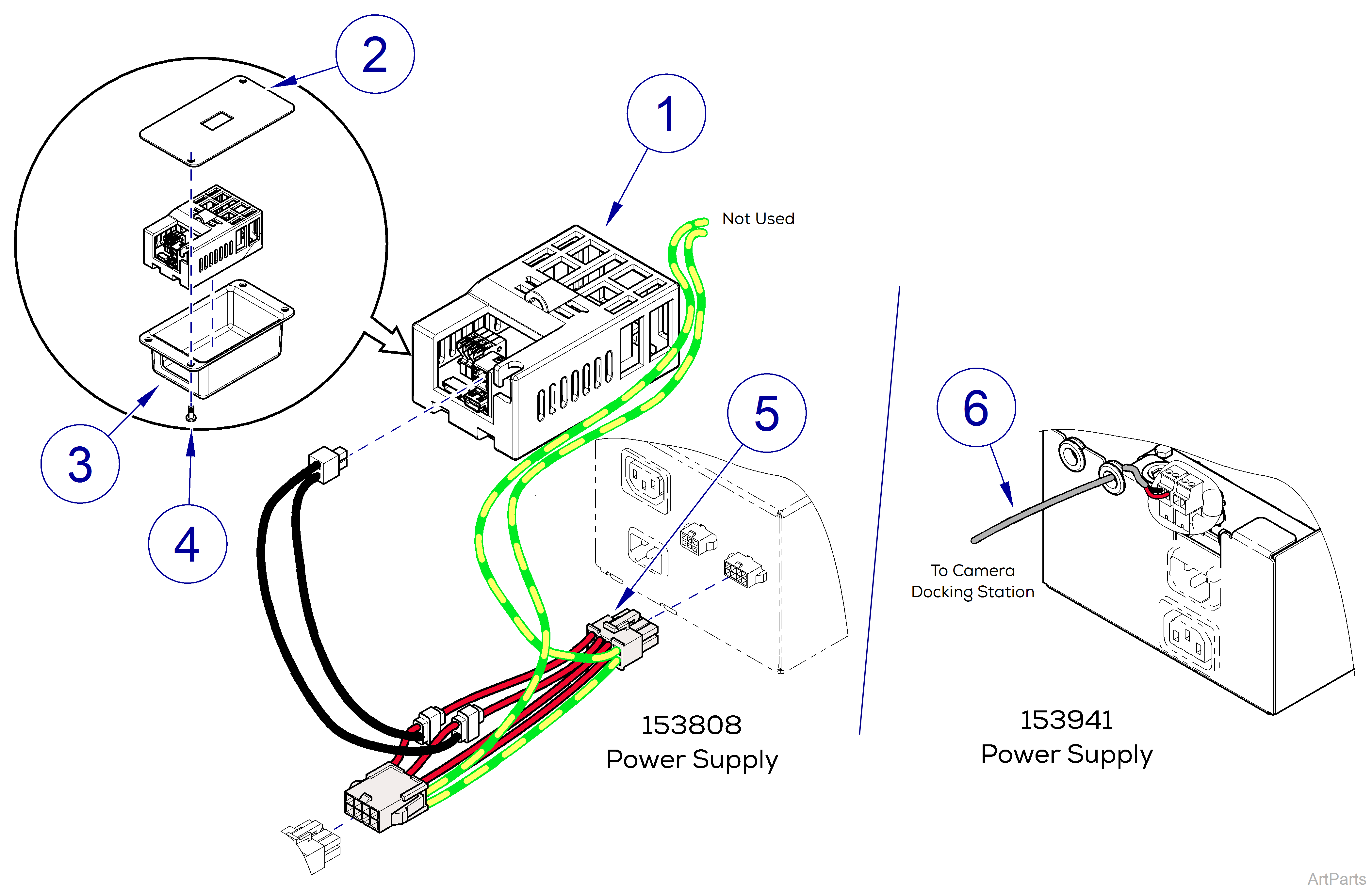

| Elevance® Standard Delivery and Elevance® Continental-Style Delivery Sopro Camera Kit 153831 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1196-05 |
Docking Station - Includes cables | NLA |
|
2 |
029-5731-00 | Plate | 1 |
|
3 |
053-2255-01-216 | Cover | 1 |
|
4 |
040-0006-97 | Screw - Pan Head Phillips | 2 |
|
5 |
015-2938-00 | Jumper Harness | 1 |
|
6 |
015-3430-00 | Power Harness | 1 |
|
7 |
Camera Handpiece Options - includes protective sheaths - Not Shown | ||
| 002-1196-00 | 617 | 1 | |
| 002-1196-04 | 717 First | 1 | |
| 002-1196-03 | Life | 1 | |
| 002-1196-06 | Care | 1 | |
|
8 |
029-5246-00 |
Camera Connection Components - Not Shown |
NLA |
|
9 |
153831-010 |
Sopro Camera Kit - Includes Items 1 thru 8 | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2006607 Thru Present
|
Mounted To |
Elevance® Dental Chair | Midmark® Ultra-Series Dental Chair |
| Serial Number | V2006607 Thru Present | V2006607 Thru Present |
|
Elevance® Standard Delivery and Elevance® Continental-Style Delivery Sopro Camera Kits 153831-015 153831-016 and 17 |
|||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Sopro Camera Kits | ||
|
153831-015 |
For Elevance Continental-Style |
NLA |
|
| 153831-016 | For Elevance Standard Delivery | 1 | |
| 153831-017 | For Procenter Delivery | 1 | |
|
2 |
053-2255-02-216 | Cover | 1 |
|
3 |
040-0006-97 | Screw #6-32 x .375 - Pan Head Phillips | 2 |
|
4 |
029-5731-00 | Mounting Plate | 1 |
|
5 |
Camera Handpiece, Factory installed in the delivery head - Not Shown | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
